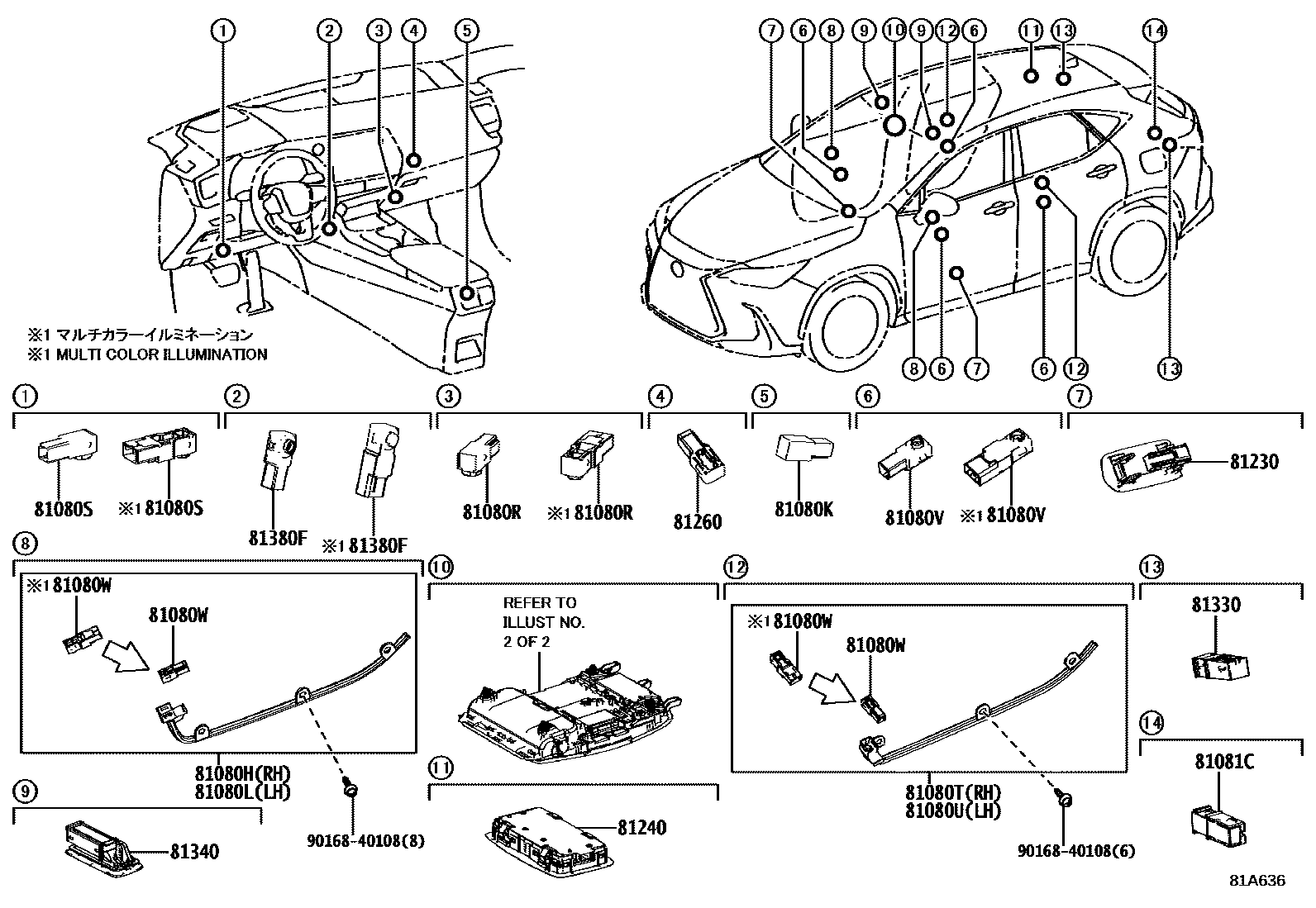

INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
main81090-78050supersedes 81090-78010iAAZH20..GEN;AAZH20..LHD..EUR;AAZA2#,AAZH25..EUR,GEN202111-202403
"VERSION L"*(L)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-CLEAR
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-ALUMINUM&AUDIO-*EMV & 17SPEAKER
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
"F SPORT"*(F)&MULTI COLOR ILLUMINATION
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-ALUMINUM&AUDIO-*EMV & 17SPEAKER
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
MULTI COLOR ILLUMINATION
MULTI COLOR ILLUMINATION
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
MULTI COLOR ILLUMINATION
MULTI COLOR ILLUMINATION
81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
"VERSION L"*(L)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-CLEAR
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-ALUMINUM&AUDIO-*EMV & 17SPEAKER
81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
main81090-78080supersedes 81090-78040iAAZH20..GEN;AAZH20..LHD..EUR;AAZA2#,AAZH25..EUR,GEN202111-202403
"VERSION L"*(L)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-CLEAR
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&DOOR TRIM ORNAMENT-ALUMINUM&AUDIO-*EMV & 17SPEAKER
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
MULTI COLOR ILLUMINATION
MULTI COLOR ILLUMINATION
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
SINGLE COLOR ILLUMINATION
MULTI COLOR ILLUMINATION
MULTI COLOR ILLUMINATION
81081CLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.4
81230LAMP ASSY, COURTESY
PREMIUM PACKAGE
81240LAMP ASSY, ROOM, NO.1
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81340LAMP ASSY, VANITY
81380FLAMP ASSY, CONSOLE BOX
"VERSION L"*(L)&SINGLE COLOR ILLUMINATION&SEAT COVER MATERIAL-NATURAL LEATHER
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
"F SPORT"*(F)&MULTI COLOR ILLUMINATION&SEAT COVER MATERIAL-NATURAL LEATHER(F SPORT)
9016840108
main90168-40108
17 parts on this diagram · 3 diagrams in section
