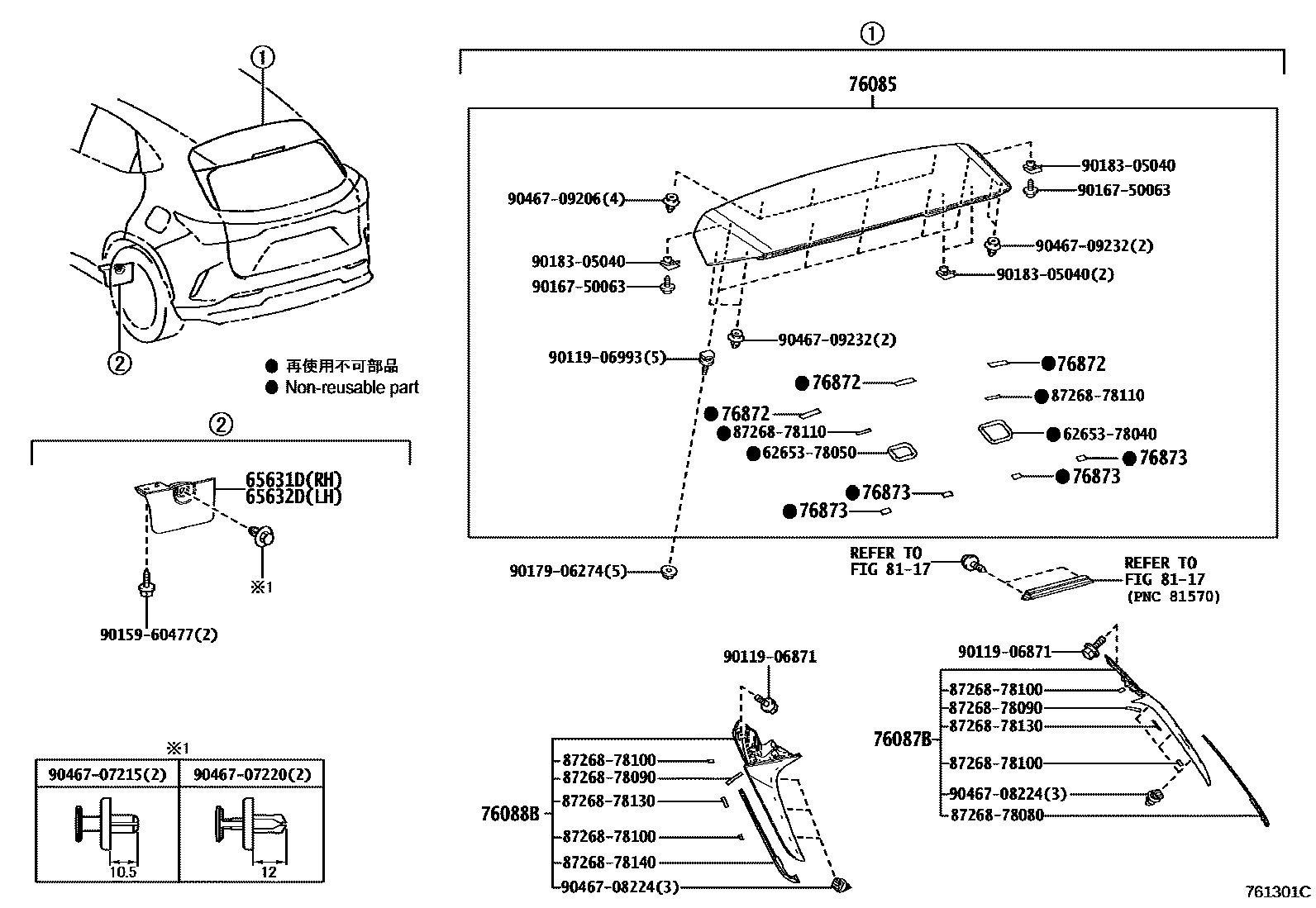

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
8117
6265378040GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78040
6265378050GLASS, SIDE WINDOW, NO.3, FRONT (FOR SLIDE TYPE)
main62653-78050
8726878080COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78080
8726878090COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78090
8726878100COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78100
8726878110COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78110
8726878130COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78130
8726878140COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-78140
9011906871
main90119-06871
9011906993
main90119-06993
9015960477
main90159-60477
9016750063
main90167-50063
9017906274
main90179-06274
9018305040
main90183-05040
9046707215
main90467-07215
9046707220
main90467-07220
9046708224
main90467-08224
9046709206
main90467-09206
9046709232
main90467-09232
27 parts on this diagram · 1 diagram in section
