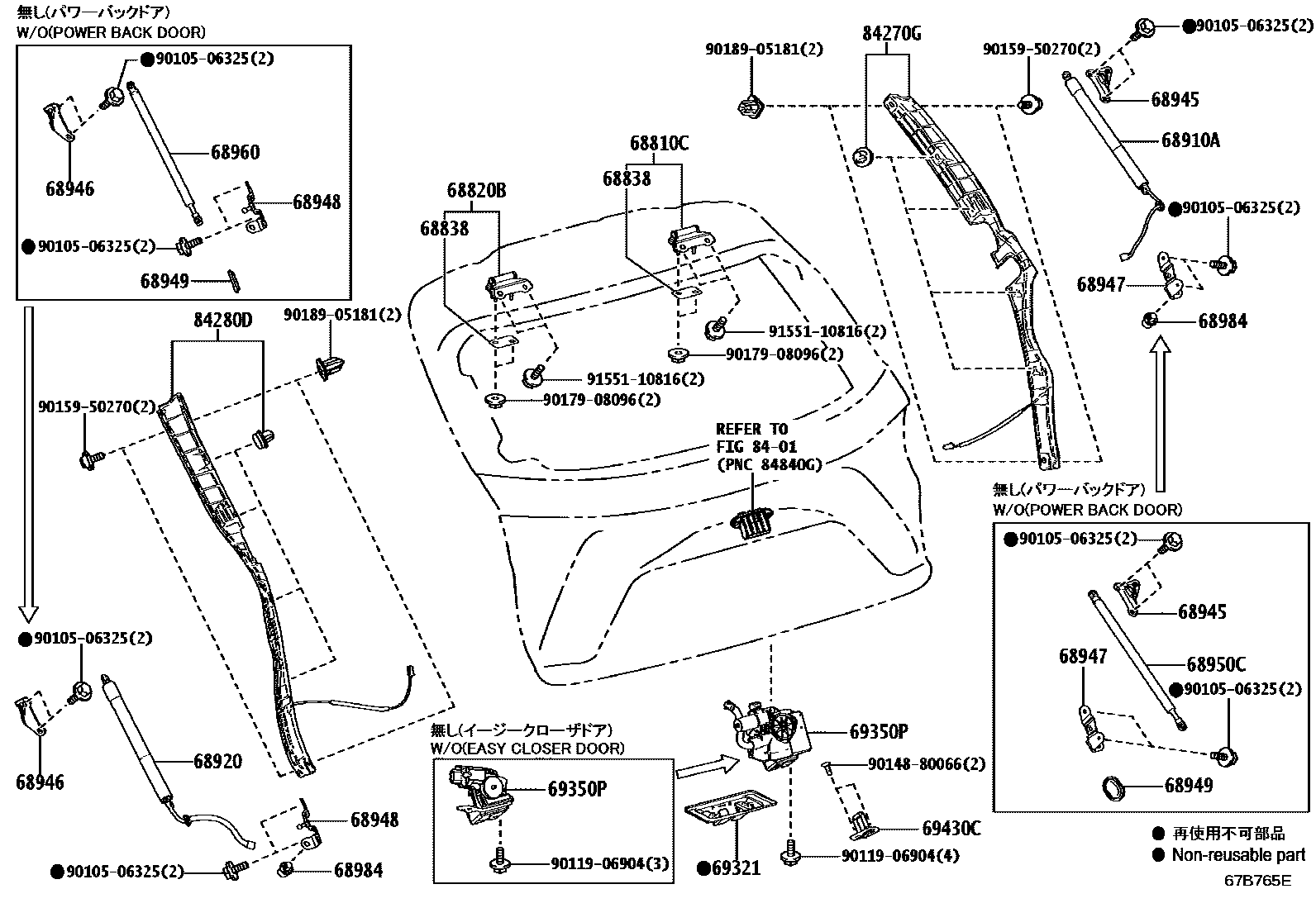

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iAAZH25,TAZA25..GCC202111-202405

68820BHINGE ASSY, BACK DOOR, LH

main68810-48220iAAZA2#202403-202506

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140×2iAAZH25,TAZA25..GCC202111-202405

T=1.0

main68838-48150×2iAAZH25,TAZA25..GCC202111-202405

T=1.5

main68838-48160×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

T=2.0

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-78031iAAZH26;TAZA25..EUR;AAZH20,21,25..CHI202111-202204

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

main68910-78032iAAZH26;TAZA25..EUR;AAZH20,21,25..CHI202205-202403

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-78031iAAZH26;TAZA25..EUR;AAZH20,21,25..CHI202111-202204

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

main68920-78032iAAZH21,26;TAZA25..EUR;AAZH20,25..CHI;AAZH20,25,TAZA25..RHD202403

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-78040supersedes 68945-78030iAAZA2#..LHD202403-202506

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-78040supersedes 68946-78030iAAZA2#..LHD202403-202506

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-78030iAAZA2#202403-202506

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-78030iAAZH2#,MAZA20,TAZA25202403

68949SEAL, BACK DOOR STAY BRACKET

main68949-78020×2iAAZA2#..LHD202403-202506

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WJ90iAAZA2#..LHD202403-202506

68960STAY ASSY, BACK DOOR, LH

main68960-0WD70iAAZH25,TAZA25..GCC202111-202405

68984STOPPER, BACK DOOR STAY

main68984-78010×2iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202208

main68984-78011×2iAAZH26..RHD;AAZH26..LHD..EUR;AAZA2#,AAZH20,21,25,MAZA20,TAZA25202209-202405

69321COVER, BACK DOOR LOCK

main69321-78040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-78090supersedes 69350-42070iAAZH21,26;TAZA25..EUR;AAZH20,25..CHI;AAZH20,25,TAZA25..RHD202403

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAAZA2#202403-202506

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-78020iAAZA2#..LHD202403-202506

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-78020iAAZA2#..LHD202403-202506

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

9010506325

main90105-06325

9011906904

main90119-06904

9014880066

main90148-80066

9015950270

main90159-50270

9017908096

main90179-08096

9018905181

main90189-05181

9155110816

main91551-10816

26 parts on this diagram · 1 diagram in section
