BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030×2iAAZA2#202403-202506

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iAAZH25,TAZA25..GCC202111-202405

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-78020iAAZA2#202403-202506

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

67005PANEL SUB-ASSY, BACK DOOR

main67005-78150supersedes 67005-78160iAAZA20..CHI202111-202403

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)

main67005-78170supersedes 67005-78190iAAZA2#..LHD..(EUR,GEN)202403-202506

AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR(SHORT))

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09143×2iAAZH2#,MAZA20,TAZA25202403

67261APLATE, BACK DOOR REINFORCEMENT, NO.1 RH

main67261-78020iAAZH2#,MAZA20,TAZA25202403

67262APLATE, BACK DOOR REINFORCEMENT, NO.1 LH

main67262-78020iAAZH2#,MAZA20,TAZA25202403

67263APLATE, BACK DOOR REINFORCEMENT, NO.2 RH

main67263-78010iAAZH25,TAZA25..GCC202111-202405

67372AWEIGHT, BACK DOOR

main67372-78020iAAZH25,TAZA25..GCC202111-202405

67837NSEAL, BACK DOOR DUST PROOF

main67837-78010×3iAAZH25,TAZA25..GCC202111-202405

67881AWEATHERSTRIP, BACK DOOR

main67881-78021iAAZH2#,MAZA20,TAZA25202403

68131GLASS, BACK DOOR

main68105-78090iAAZA20..CHI202403-202506

UKRAINE SPEC&REAR SIDE GLASS-PRIVACY

main68105-78110iAAZH26..LHD202111-202403

TAIWAN SPEC

main68105-78120supersedes 68105-78160iAAZH26..GEN202111-202403

NEW ZEALAND SPEC&REAR SIDE GLASS-PRIVACY

main68105-78150supersedes 68105-78160iAAZA25..LHD..GEN202403-202506

MACAU SPEC

main68105-78160supersedes 68105-78150iTAZA25..EUR202403

ARMENIA SPEC&SATELLITE RADIO-WITH(DIGITAL AUDIO BROADCAST)

main68105-78100iAAZH26..LHD202111-202303

CYPRUS SPEC

main68105-78130iAAZH26..LHD..EUR202403

AZB,GRZ SPEC&REAR SIDE GLASS-UV-CUT(GREEN)&SATELLITE RADIO-WITHOUT

main68105-78140iTAZA25..EUR202403

ISRAEL SPEC

main68105-78180iAAZH25..LHD..GEN202111-202403

BRAZIL SPEC

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iAAZH25,TAZA25..GCC202111-202405

8202

6726478010BRACKET, BACK DOOR STOPPER, NO.4

main67264-78010

6726578010

main67265-78010

6726678010STOPPER, CENTER DOOR RAIL

main67266-78010

7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER

main75126-78010

9095001948

main90950-01948

9095001958

main90950-01958

9095001A17

main90950-01A17

9167380616

main91673-80616

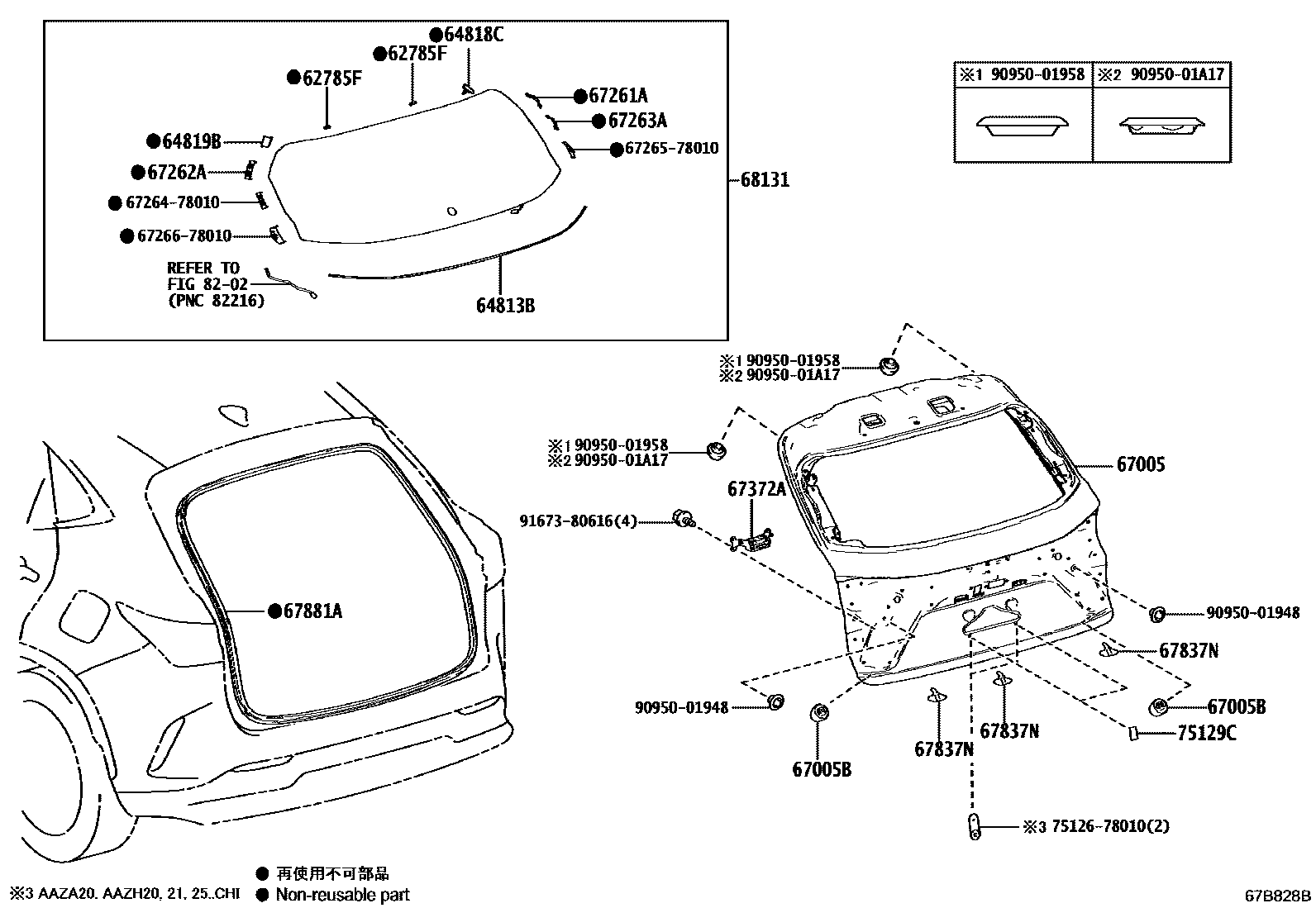

23 parts on this diagram · 2 diagrams in section
