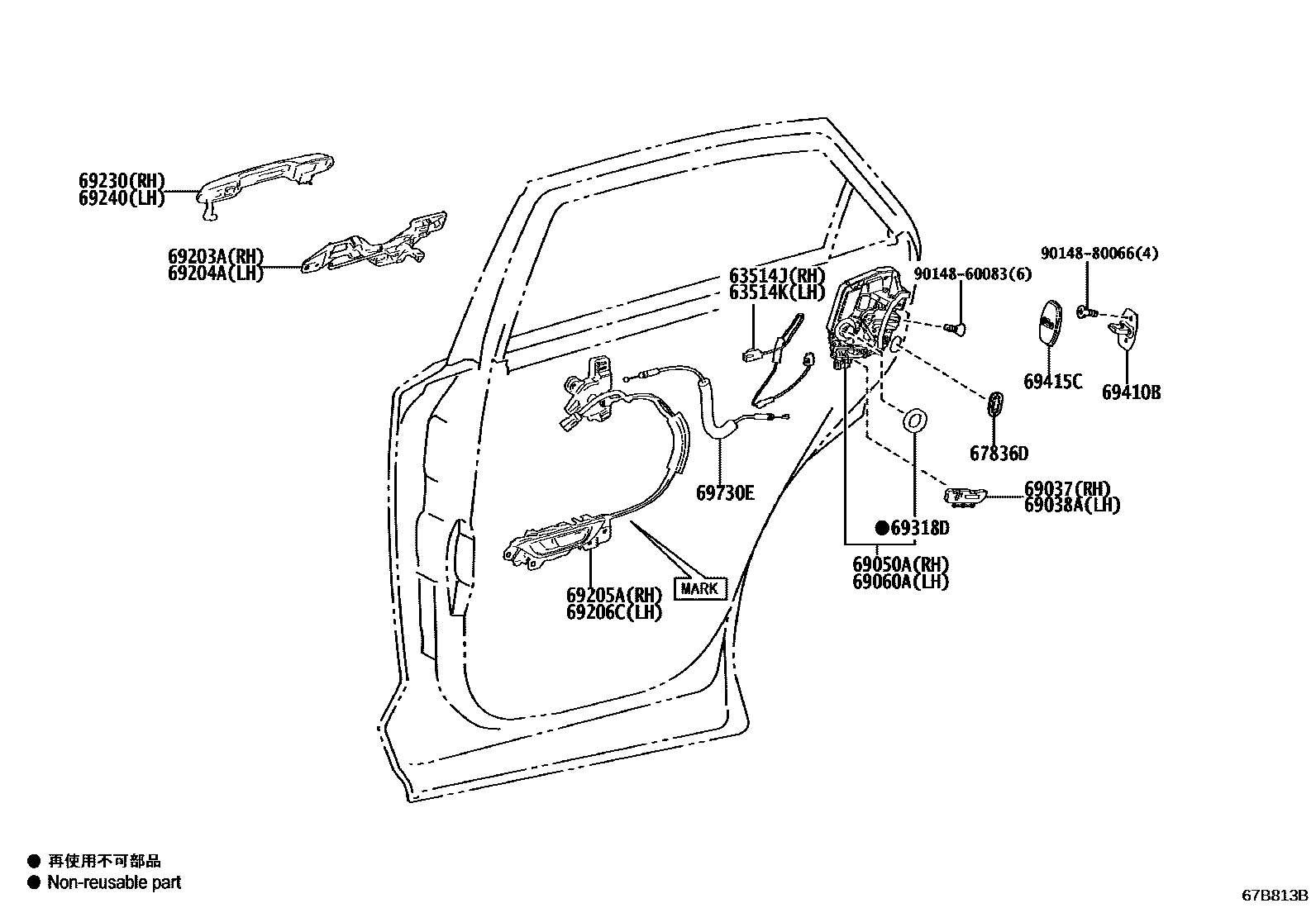

REAR DOOR LOCK & HANDLE
63514JWIRE, CONNECTOR, RH
63514KWIRE, CONNECTOR, LH
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
INDIA SPEC
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
INDIA SPEC
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLUE
PINK
PINK
MULTI COLOR ILLUMINATION,YELLOW
MULTI COLOR ILLUMINATION,GREEN
MULTI COLOR ILLUMINATION,GREEN
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLUE
PINK
PINK
MULTI COLOR ILLUMINATION,YELLOW
MULTI COLOR ILLUMINATION,GREEN
MULTI COLOR ILLUMINATION,GREEN
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
BLACK,212
MADDER RED,3T2
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
HEAT BLUE CONTRAST LAYERI,8X1
main69210-48162-A0iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
WHITE NOVA GF.,083
SMART ENTRY-KEY(3 BUTTON TYPE,WITH(POWER BACK DOOR)),SONIC QUARTZ,085
main69210-48162-B0supersedes 69210-78102-B0iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE,WITH(POWER BACK DOOR)),SONIC CHROME,1L1
main69210-48162-C0supersedes 69210-78102-C1iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
GRAPHITE BLACK GF.,223
BLACK,212
MADDER RED,3T2
main69210-48162-E0supersedes 69210-78102-E1iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
SONIC COPPER,4Y5
SMART ENTRY-KEY(2 BUTTON TYPE),TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),BLACK,212
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),GRAPHITE BLACK GF.,223
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),MADDER RED,3T2
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),BLAZING CARNELIAN CONTRAS,4Y1
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),BLACK,212
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),GRAPHITE BLACK GF.,223
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),MADDER RED,3T2
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),BLAZING CARNELIAN CONTRAS,4Y1
CHILE SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
BLAZING CARNELIAN CONTRAS,4Y1
CHILE SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
BLACK,212
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
BLACK,212
MADDER RED,3T2
SONIC COPPER,4Y5
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
HEAT BLUE CONTRAST LAYERI,8X1
main69220-48102-A0iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, WITH(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE,WITH(POWER BACK DOOR)),SONIC CHROME,1L1
CHILE SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, WITH(*PAB & *PBD)),GRAPHITE BLACK GF.,223
BLACK,212
SMART ENTRY-KEY(3 BUTTON TYPE,WITH(POWER BACK DOOR)),MADDER RED,3T2
main69220-48102-E0supersedes 69220-78102-E1iAAZH20,25..RHD;AAZH20,25..LHD..(CHI,GEN);AAZH21,26,MAZA20,TAZA25..CHI,EUR,GEN202403
SONIC COPPER,4Y5
SMART ENTRY-KEY(2 BUTTON TYPE),TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),BLACK,212
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),GRAPHITE BLACK GF.,223
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),MADDER RED,3T2
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),BLAZING CARNELIAN CONTRAS,4Y1
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),BLACK,212
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),GRAPHITE BLACK GF.,223
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),MADDER RED,3T2
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),BLAZING CARNELIAN CONTRAS,4Y1
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),CELESTIAL BLUE GF.,8Y6
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),WHITE NOVA GF.,083
VIETNAM SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),SONIC QUARTZ,085
SONIC TITANIUM,1J7
SMART ENTRY-KEY(3 BUTTON TYPE, W(POWER BACK DOOR)),SONIC CHROME,1L1
BLACK,212
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),GRAPHITE BLACK GF.,223
VIETNAM SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),MADDER RED,3T2
TAIWAN SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),BLAZING CARNELIAN CONTRAS,4Y1
CHILE SPEC&SMART ENTRY-KEY(3 BUTTON TYPE, W(PANIC BUTTON)),TERRANE KHAKI M.M.,6X4
TAIWAN SPEC&SMART ENTRY-KEY(4 BUTTON TYPE, W(*PAB & *PBD)),HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,8Y6
BLACK,212
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730ECABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
9014860083
main90148-60083
9014880066
main90148-80066
19 parts on this diagram · 1 diagram in section
