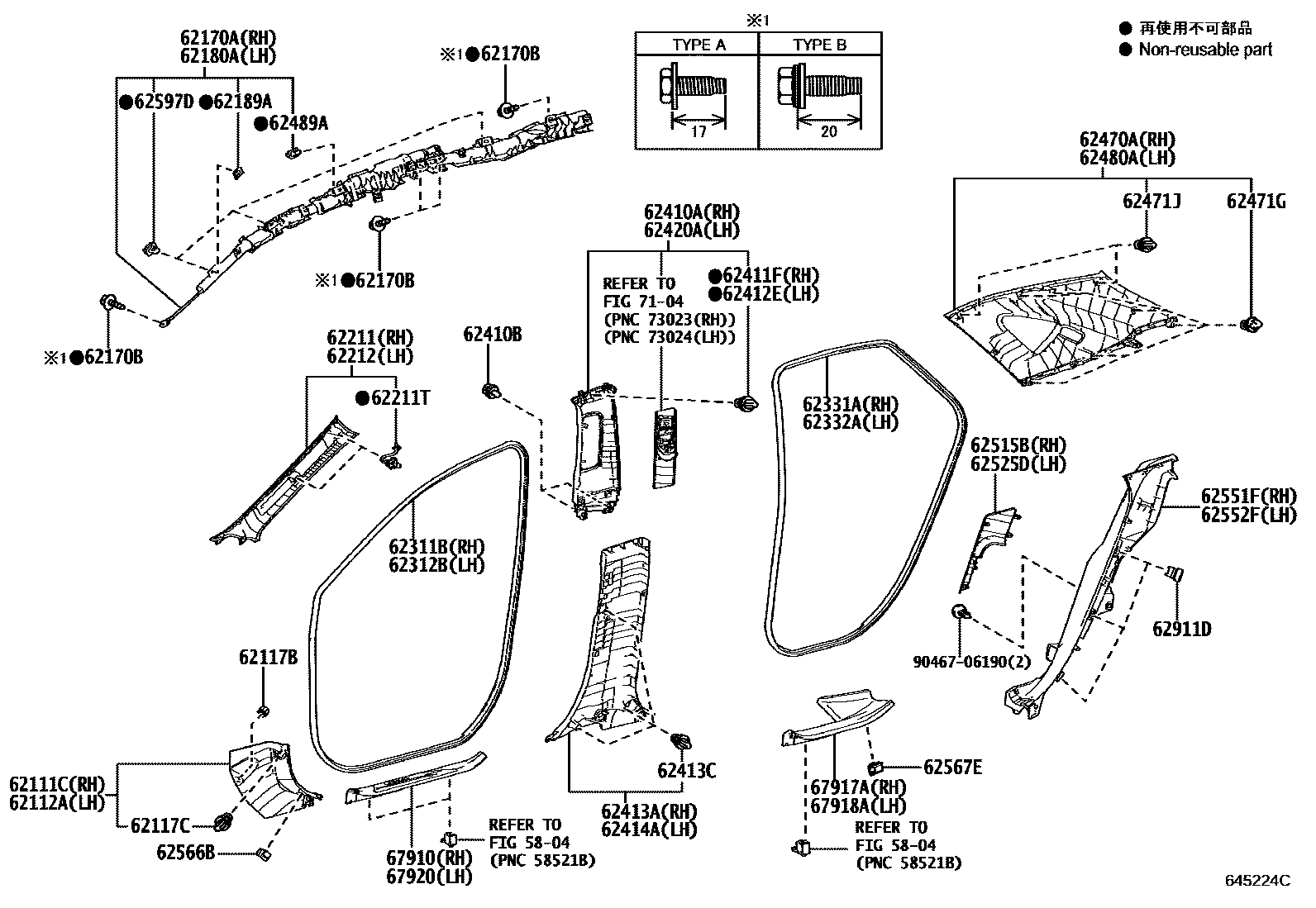

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
sub62170-78031
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS))
MOON ROOF-WITH
62170BBOLT, W/WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
sub62180-78031
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS))
MOON ROOF-WITH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LWHITE,TRIM20,21,22
LWHITE,TRIM2#
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM2#
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM00,01,20,21,22
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM0#,3#
BLACK,TRIM00,01,03,23,24,25,3#,43
BLACK,TRIM00,01,02,3#
BLACK,TRIM0#,2#,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,03,23,24,25,3#,43
BLACK,TRIM00,01,3#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,23,24,3#
HAZEL,TRIM40,41,42,43
HAZEL,TRIM43
HAZEL,TRIM4#
HAZEL,TRIM40,41,43
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LWHITE,TRIM20,21,22
LWHITE,TRIM2#
FROMAGE,TRIM2#
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM00,01,20,21,22
FROMAGE,TRIM00,01,20,21
BLACK,TRIM00,01,02,03,23,24,25,3#,43
BLACK,TRIM00,01,3#
BLACK,TRIM0#,3#
BLACK,TRIM00,01,02,3#
BLACK,TRIM00,01,03,23,24,25,3#,43
BLACK,TRIM0#,2#,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,23,24,3#
HAZEL,TRIM40,41,42,43
HAZEL,TRIM40,41,43
HAZEL,TRIM4#
HAZEL,TRIM43
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
LWHITE/WHITE/ECRU,TRIM20,21,22
LWHITE/WHITE/ECRU,TRIM2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,2#
FROMAGE/IVORY/FROMAGE,TRIM2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21,22
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM0#,2#,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,24,25,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM0#,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,24,25,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,3#
BLACK/BLACK/CHARCOAL,TRIM0#,2#,3#
BLACK/BLACK/CHARCOAL,TRIM0#,23,24,3#
HAZEL/HAZEL/CHRCOAL,TRIM4#
HAZEL/HAZEL/CHRCOAL,TRIM43
HAZEL/HAZEL/CHRCOAL,TRIM40,41,42,43
HAZEL/HAZEL/CHRCOAL,TRIM40,41,43
62410BCLIP
62411FCLIP, CENTER PILLAR GARNISH, RH
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
62420AGARNISH ASSY, CENTER PILLER, LH
LWHITE/WHITE/ECRU,TRIM2#
LWHITE/WHITE/ECRU,TRIM20,21,22
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21
FROMAGE/IVORY/FROMAGE,TRIM2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21,22
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM0#,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,24,25,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,3#
BLACK/BLACK/CHARCOAL,TRIM0#,2#,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,24,25,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,3#
BLACK/BLACK/CHARCOAL,TRIM0#,2#,3#
BLACK/BLACK/CHARCOAL,TRIM0#,23,24,3#
HAZEL/HAZEL/CHRCOAL,TRIM43
HAZEL/HAZEL/CHRCOAL,TRIM40,41,42,43
HAZEL/HAZEL/CHRCOAL,TRIM40,41,43
HAZEL/HAZEL/CHRCOAL,TRIM4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
WHITE,TRIM2#
WHITE,TRIM20,21,22
FROMAGE,TRIM2#
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM00,01,20,21,22
BLACK,TRIM00,01,02,3#
BLACK,TRIM00,01,3#
BLACK,TRIM0#,3#
BLACK,TRIM00,01,03,23,24,25,3#,43
BLACK,TRIM0#,2#,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,03,23,24,25,3#,43
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,23,24,3#
HAZEL,TRIM40,41,42,43
HAZEL,TRIM43
HAZEL,TRIM4#
HAZEL,TRIM40,41,43
62471GCLIP, ROOF SIDE INNER GARNISH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
WHITE,TRIM20,21,22
WHITE,TRIM2#
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM2#
FROMAGE,TRIM00,01,20,21,22
FROMAGE,TRIM00,01,20,21
BLACK,TRIM0#,2#,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,03,23,24,25,3#,43
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM0#,3#
BLACK,TRIM00,01,03,23,24,25,3#,43
BLACK,TRIM00,01,02,3#
BLACK,TRIM00,01,3#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,23,24,3#
HAZEL,TRIM4#
HAZEL,TRIM43
HAZEL,TRIM40,41,42,43
HAZEL,TRIM40,41,43
62489ACLIP, ROOF SIDE INNER GARNISH
62515BCOVER, SIDE TRIM BASE, NO.1 RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
62525DCOVER, SIDE TRIM BASE, NO.1 LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62597DCLIP
62911DHOOK, SIDE WINDOW LOCK
67910PLATE ASSY, DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
OVERTRAIL PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
OVERTRAIL PACKAGE,BLACK,TRIM2#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
67920PLATE ASSY, DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#,4#
OVERTRAIL PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
OVERTRAIL PACKAGE,BLACK,TRIM2#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#
sub67920-78051
"F SPORT"*(F),BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
7104
9046706190
main90467-06190
43 parts on this diagram · 4 diagrams in section
