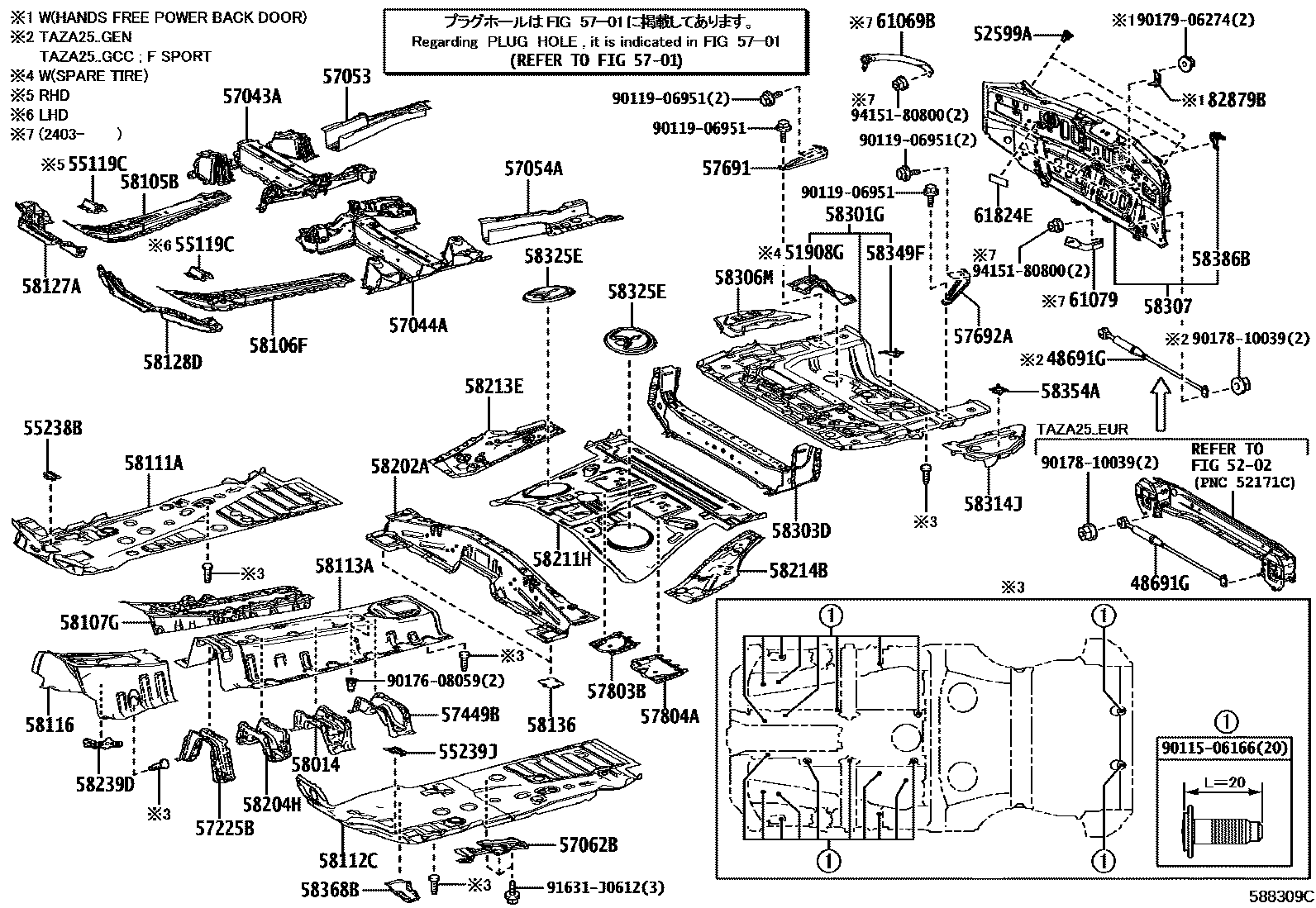

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

48691GDAMPER, SUSPENSION TOWER

main48691-78050iAAZH26..RHD;AAZH25..EUR,GEN;AAZH26..LHD..EUR202403

OVERTRAIL PACKAGE

51908GBRACKET SUB-ASSY, SPARE TIRE CARRIER

main51908-42060iAAZA25..EUR202111-202403

5202

52599ASTOPPER, REAR BUMPER, UPPER

main52599-76010×2iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

55119CBRACKET, CLUTCH BOOSTER

main55119-42010iAAZH25,TAZA25..GCC202111-202405

main55119-42020iAAZA2#..RHD202403-202506

55238BPLATE, DASH PANEL INSULATOR, LOWER RH

main55238-42010iAAZA2#202403-202506

55239JPLATE, DASH PANEL INSULATOR, LOWER LH

main55239-42010iAAZA2#202403-202506

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-42030iAAZA2#202403-202506

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-42030iAAZA2#202403-202506

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-42020iAAZA2#,AAZH2#,MAZA20..CHI,EUR,GEN202111-202403

main57053-78010iTAZA25202403

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-42020iAAZA2#,AAZH21,26,MAZA20202111-202403

main57054-42030iAAZH20,25,TAZA25202403

57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH

main57062-42020iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

main57062-78040iAAZH25..GCC202111-202405

57225BBRACE, FRONT MOUNTING BRACKET

main57225-42010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

57449BRETAINER, CENTER FLOOR CROSSMEMBER, LH

main57449-78010iAAZA2#202403-202506

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-78010iAAZA2#202403-202506

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-78010iAAZA2#202403-202506

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-42020iAAZA2#202403-202506

main57803-42030iAAZH21,26202403

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-42020iAAZH20,25,MAZA20,TAZA25202403

main57804-42030iAAZH21,26202111-202403

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-42030iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-42040iAAZA2#202403-202506

PLANT NO. A51-A54

main58105-78010iAAZH2#,MAZA20,TAZA25202403

PLANT NO. Q11-Q12

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-42010iAAZH20,25,TAZA25202403

PLANT NO. A51-A54

main58106-78010iAAZH2#,MAZA20,TAZA25202403

PLANT NO. Q11-Q12

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-42010iAAZA2#202403-202506

main58107-42020iAAZH2#202403

58111APAN, FRONT FLOOR, RH

main58111-42220iTAZA25..EUR,GEN202111-202403

TAHARA PLANT

main58111-78020iAAZA2#202403-202506

PLANT NO. Q11-Q12

58112CPAN, FRONT FLOOR, LH

main58112-42030iTAZA25..GCC202111-202405

TAHARA PLANT

main58112-78010iAAZH25,TAZA25..GCC202111-202405

TMK PLANT

58113APANEL, FRONT FLOOR, CENTER

main58113-42030iTAZA25..GCC202111-202405

main58113-42040iAAZH2#..CHI,EUR,GEN202111-202403

58116PLATE, SHIFT CABLE MOUNTING

main58116-42030iMAZA20202201-202403

main58116-78010iAAZH2#,TAZA25202403-202408

main58116-78011iAAZA2#202409-202506

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-42021iAAZA2#202403-202506

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-42021iAAZA2#202403-202506

58136COVER, FRONT FLOOR HOLE

main58136-42030×2iAAZH25,TAZA25..GCC202111-202405

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-42030iAAZA2#,MAZA20,TAZA25202111-202309

main58202-42031iMAZA20,TAZA25202403

main58202-42040iAAZH20,25..CHI,EUR,GEN202111-202403

main58202-42050iAAZH21,26202111-202403

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-78010iAAZA2#202403-202506

main58204-78020iTAZA25202403

58211HPAN, CENTER FLOOR

main58211-42020iTAZA25..GCC202111-202405

main58211-42030iAAZH20,25202403

main58211-42040iAAZH21,26202111-202403

58213EPANEL, SEAT FLOOR SIDE, RH

main58203-42020iAAZH21,26202403

main58213-48050iAAZA2#,AAZH20,25,MAZA20,TAZA25..CHI,EUR,GEN202111-202403

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-48040iAAZA2#202403-202506

58239DBRACKET, CABLE CLAMP

main58239-42010iAAZA2#202403-202506

main58239-42020iAAZH21,26202111-202403

58301GPAN SUB-ASSY, REAR FLOOR

main58301-78901supersedes 58301-78900iAAZA25..EUR202403-202506

TIRE & DISC WHEEL-235/60R18 SUMMER TIRE EMT, 7.5J

main58301-78902iAAZH20,25202111-202303

main58301-78903iAAZH21,26202111-202303

main58301-78904iAAZH25..GCC202303-202405

main58301-78905iAAZH21,26202303-202403

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-42020iAAZH2#,MAZA20,TAZA25202403

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-78010iAAZH2#202403

main58306-78020iTAZA25..GCC202111-202405

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-78020iAAZH25,TAZA25..GCC202111-202405

main58307-78021iAAZH2#,TAZA25..CHI,GCC,GEN202403

main58307-78030iAAZA2#,AAZH20,25,26,MAZA20,TAZA25..EUR202111-202403

main58307-78031iAAZA2#..EUR202403-202506

58314JPANEL, REAR FLOOR SIDE, LH

main58314-78010iAAZH25,TAZA25..GCC202111-202405

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10051×2iTAZA25..GCC202111-202405

main58325-42040iAAZH20,25..CHI,EUR,GEN202111-202403

main58325-42050iAAZH21,26202111-202403

58349FRETAINER, REAR FLOOR SUPPORT STAY

main58349-78010iAAZA2#202403-202506

58354ASTAY, REAR FLOOR, LH

main58354-78010iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202211

main58354-78011iAAZA2#202403-202506

58368BBRACKET, FUEL TUBE, NO.2

main58368-42010iAAZH25,TAZA25..GCC202111-202405

main58368-42020iAAZH21,26202403

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×4iAAZH2#,MAZA20,TAZA25202403

61069BBRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 RH

main61069-78010iAAZA2#202403-202506

61079BRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 LH

main61079-78010iAAZH2#,MAZA20,TAZA25202403

61824EPLATE, NOISE CONTROL, NO.1

main61824-78010×3iAAZA2#,AAZH2#,TAZA25..CHI,EUR,GEN202111-202403

82879BADAPTER, COMPUTER INTEGRATION BOX

main82879-78040iAAZH20,25..LHD..EUR202111-202212

SINGAPOLE SPEC

9011506166

main90115-06166

9011906951

main90119-06951

9017608059

main90176-08059

9017810039

main90178-10039

9017906274

main90179-06274

91631J0612

main91631-J0612

9415180800

main94151-80800

57 parts on this diagram · 4 diagrams in section
