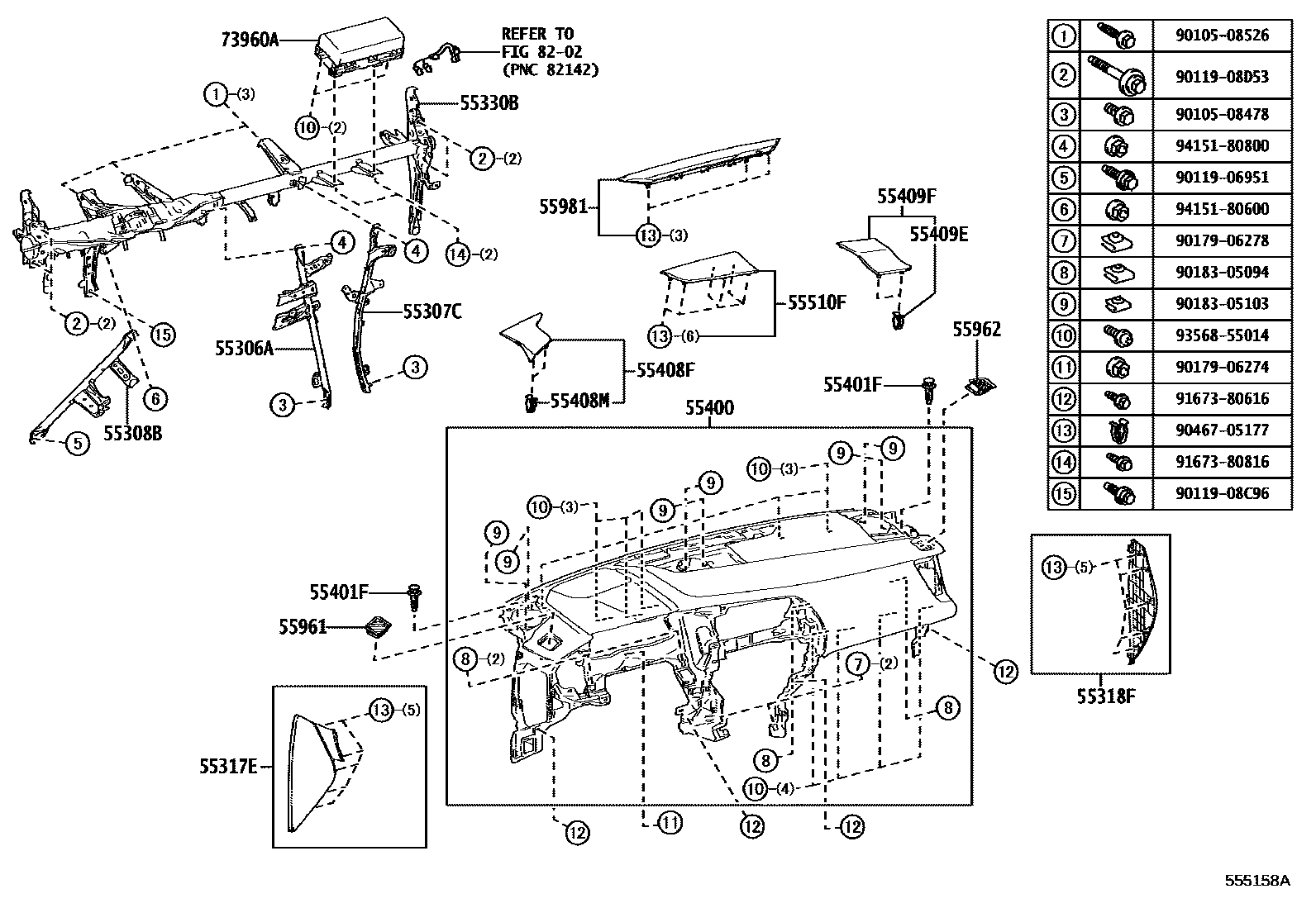

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
ARMENIA SPEC,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&INTERMITTENT WIPER-WITH(RAIN SENSOR)
HEAD UP DISPLAY-WITH
55400PAD ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,2#,3#,4#
COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM0#,2#,3#,4#
HEAD UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#
55401FCLIP(FOR SAFETY PAD)
sub52161-0K040
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#
55408MCLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409ECLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#
55510FCOVER ASSY, SPEAKER OPENING, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
AUDIO-EMVN & 17SPEAKER,BLACK,TRIM0#,2#,3#
AUDIO-*EMV & 17SPEAKER,BLACK,TRIM0#,2#,3#,4#
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9010508478
main90105-08478
9010508526
main90105-08526
9011906951
main90119-06951
9011908C96
main90119-08C96
9011908D53
main90119-08D53
9017906274
main90179-06274
9017906278
main90179-06278
9018305094
main90183-05094
9018305103
main90183-05103
9046705177
main90467-05177
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800
33 parts on this diagram · 10 diagrams in section
