FRONT FENDER APRON & DASH PANEL

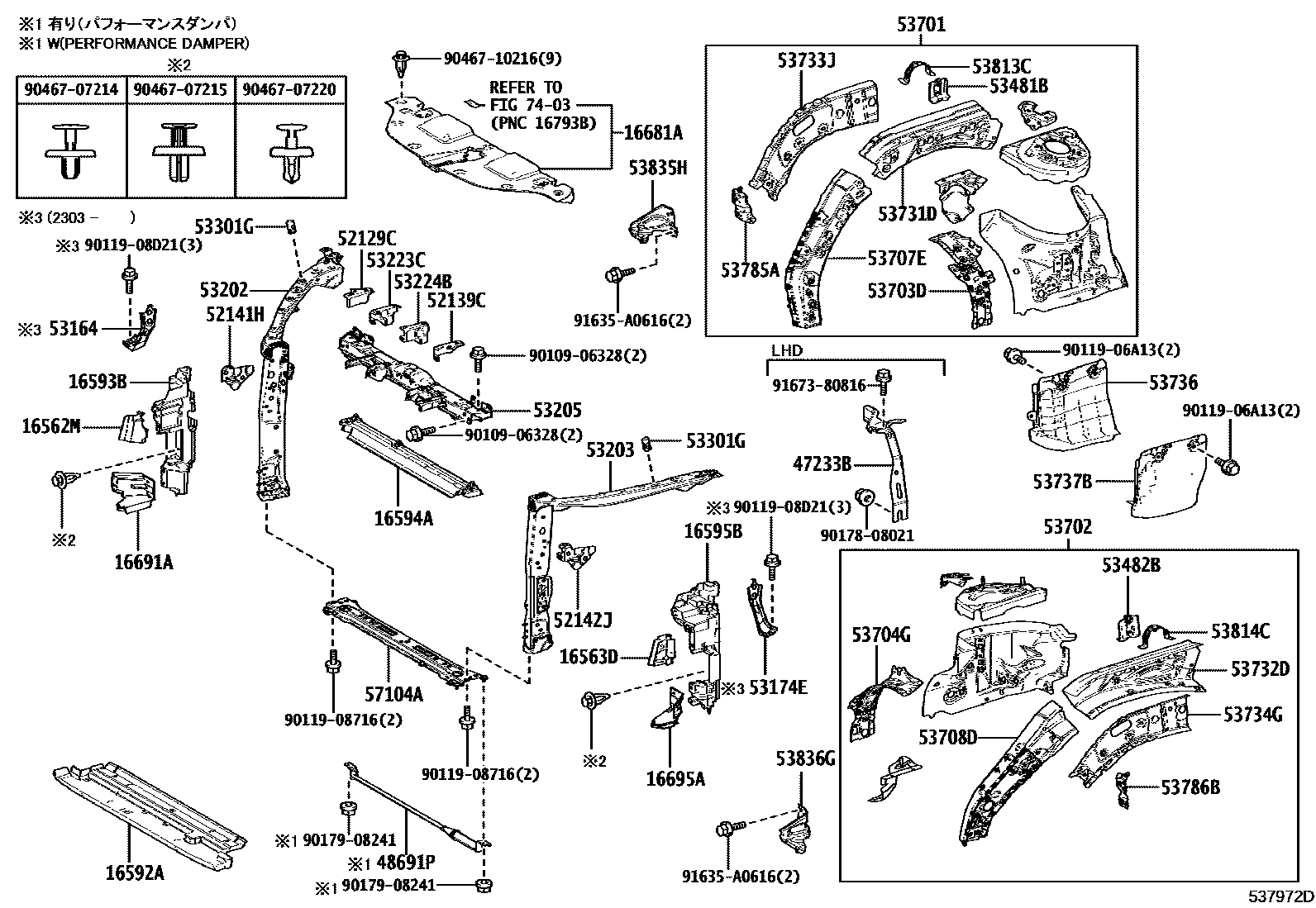

Parts diagram

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-25010i202403-202506

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-25010i202111-202405

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25040i202403-202506

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24100i202403

main16593-25160i202111-202403

main16593-25170i202403

main16593-25200supersedes 16593-25210i202111-202403

TOWING PACKAGE-1500KG

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020i202111-202403

main16594-25040i202501-202506

main16594-25050i202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24100i202403

main16595-25170i202111-202405

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25040i202403-202506

main16681-25060i202111-202403

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25090i202403-202506

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25090i202403-202506

47233BBRACKET, RESERVOIR TANK, NO.1

main47233-78010i202403-202506

48691PDAMPER, SUSPENSION TOWER

main48691-78060i202403

"F SPORT"*(F)

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-48030i202403

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-78020i202403

52141HARM, FRONT BUMPER, UPPER RH

main52141-42030i202403-202506

52142JARM, FRONT BUMPER, UPPER LH

main52142-78010i202403-202506

53164BRACKET, RADIATOR SUPPORT SIDE

main53164-78010i202403

53174EBRACKET, RADIATOR SUPPORT SIDE

main53174-78010i202303-202403

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-78022i202111-202303

main53202-78023i202303-202405

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-78022i202111-202303

main53203-78023i202403-202506

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-78030i202403-202506

53223CBRACKET, RADIATOR GRILLE MOUNTING, RH

main53223-78020i202403-202506

53224BBRACKET, RADIATOR GRILLE MOUNTING, LH

main53224-78020i202403-202506

53301GCUSHION, HOOD BUMPER

main90541-15037×2i202403-202506

53481BBRACKET, HOOD SUPPORT, RH

main53481-78020i202403-202506

53482BBRACKET, HOOD SUPPORT LH

main53481-78020i202403-202506

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-78900i202111-202405

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-78900i202403

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-42030i202403-202506

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-42040i202403-202506

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42020i202403-202506

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42020i202403-202506

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-42070i202403-202506

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-42060i202403-202506

53733JMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH

main53733-42030i202403-202506

53734GMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH

main53734-42030i202403-202506

53736SEAL, FRONT FENDER APRON, RH

main53736-42050i202403-202506

53737BSEAL, FRONT FENDER APRON, LH

main53737-42010i202403-202506

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-42010i202403-202506

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-42010i202403-202506

53813CEXTENSION, FRONT FENDER, RH

main53813-78011i202403-202506

53814CEXTENSION, FRONT FENDER, LH

main53814-78011i202403-202506

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-78010i202403

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-78010i202111-202403

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-42090i202403-202506

7403

9010906328

main90109-06328

9011906A13

main90119-06A13

9011908716

main90119-08716

9011908D21

main90119-08D21

9017808021

main90178-08021

9017908241

main90179-08241

9046707214

main90467-07214

9046707215

main90467-07215

9046707220

main90467-07220

9046710216

main90467-10216

91635A0616

main91635-A0616

9167380816

main91673-80816

57 parts on this diagram · 3 diagrams in section
