E
EPC Data

RADIATOR GRILLE

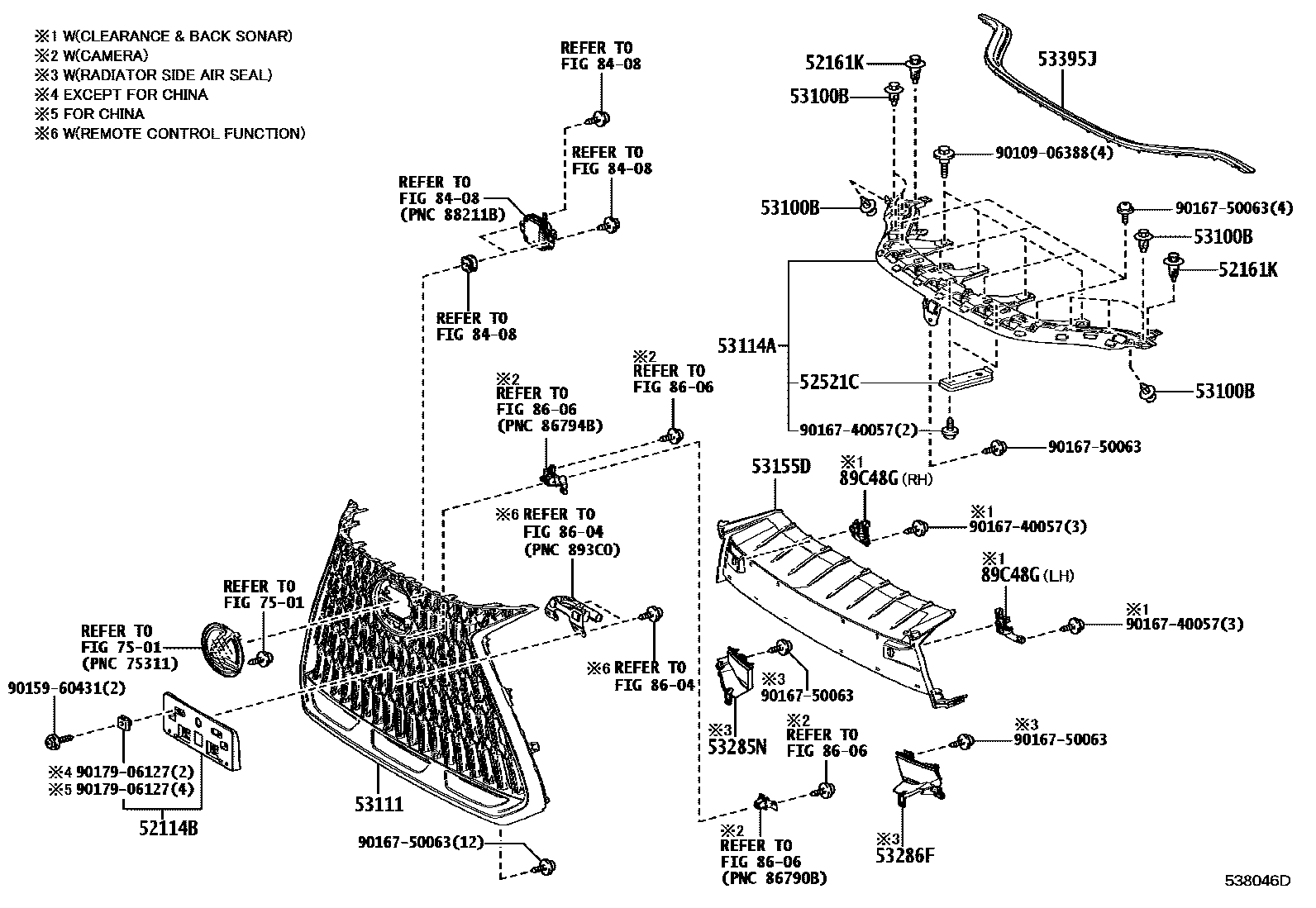

Parts diagram
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-78220i202111-202405
main52114-78240i202111-202403
main52114-78250i202111-202506
main52114-78260i202403-202506
main52114-78260i202111-202403
TAIWAN SPEC
main52114-78260i202403
TAIWAN SPEC&RADIATOR GRILLE-OVERTRAIL NORMAL
main52114-78260i202403
TAIWAN SPEC&RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)
main52114-78300i202111-202403
"F SPORT"*(F)
main52114-78340i202111-202403
main52114-78390i202403
KAZAKHSTAN SPEC
main52114-78390i202403
BELARUS SPEC
main52114-78390i202403
RUSSIA SPEC
main52114-78390i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)
main52114-78390i202403
RADIATOR GRILLE-OVERTRAIL NORMAL
main52114-78390i202403
OVERTRAIL PACKAGE
main52114-78390i202403
ARMENIA SPEC
main52114-78390i202403
AZB,GRZ SPEC
main52114-78390i202403
UKRAINE SPEC
main52114-78390i202403-202506
main52114-78400i202403
"F SPORT"*(F)
52161KPIECE, FRONT BUMPER
main52161-16010i202111-202506
sub52161-0K040
52521CRETAINER, FRONT BUMPER, UPPER
main52521-78010i202111-202506
53100BCLIP, RADIATOR GRILLE
main90467-05063-C0i202111-202506
BLACK
sub90467-05063
53111GRILLE, RADIATOR
main53101-78500i202403
NO PAINT REQ.,"F SPORT"*(F)&TOWING PACKAGE-1000KG
main53101-78500i202111-202403
NO PAINT REQ.
main53101-78500i202111-202403
NO PAINT REQ.,TAIWAN SPEC&"F SPORT"*(F)
main53101-78500i202403
NO PAINT REQ.,CHILE SPEC&"F SPORT"*(F)
main53101-78500i202403
NO PAINT REQ.,"F SPORT"*(F)
main53101-78500i202403
NO PAINT REQ.,"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)
main53101-78500i202403
NO PAINT REQ.,"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&CLEARANCE & BACK SONAR-W
main53101-78500i202111-202403
NO PAINT REQ.,"F SPORT"*(F)&TOWING PACKAGE-1500KG
main53111-78180i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
sub53111-78181
main53111-78180i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
sub53111-78181
main53111-78180i202111-202302
NO PAINT REQ.
sub53111-78181
main53111-78180i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
sub53111-78181
main53111-78181i202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
main53111-78181i202303-202506
NO PAINT REQ.
main53111-78181i202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
main53111-78181i202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
main53111-78190i202111-202302
NO PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANECHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANECHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,VIETNAM SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,VIETNAM SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB*PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.,CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
sub53111-78191
main53111-78190i202111-202302
NO PAINT REQ.
sub53111-78191
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53111-78191i202303-202403
NO PAINT REQ.,TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANECHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANECHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
main53111-78191i202303-202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB*PVM)
main53111-78191i202303-202403
NO PAINT REQ.,CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53111-78191i202303-202403
NO PAINT REQ.
main53111-78191i202303-202403
NO PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53111-78191i202303-202403
NO PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53111-78191i202303-202403
NO PAINT REQ.,INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53111-78191i202403
NO PAINT REQ.,TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53111-78191i202403
NO PAINT REQ.,TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53111-78191i202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53111-78191i202403
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
53114AGRILLE, RADIATOR, INNER
main53114-78011i202111-202506
53155DSEAL, RADIATOR GRILLE, NO.1
main53155-78020i202403
RADIATOR GRILLE-OVERTRAIL NORMAL
main53155-78020i202403
OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&CLEARANCE & BACK SONAR-WITH(REAR C
main53155-78020i202403
OVERTRAIL PACKAGE
main53155-78020i202111-202403
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
main53155-78020i202111-202403
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)&LANE CHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
main53155-78020i202111-202403
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
main53155-78020i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)
main53155-78020i202111-202506
main53155-78030i202111-202403
CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202403
COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEATADJUSTER-POWER SEAT(DRIVER & PASSENGER)&AUDIO-*EMV & 10SPEAKER&CLEARANCE & BACK SO
main53155-78030i202403
COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEATADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&AUDIO-*EMV & 10SPEAKER&CLEARANCE & B
main53155-78030i202403
PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEATADJUSTER-POWER SEAT(DRIVER & PASSENGER)&AUDIO-*EMV & 10SPEAKER&CLEARANCE & BACK SO
main53155-78030i202403
PREMIUM PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEATADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&AUDIO-*EMV & 10SPEAKER&CLEARANCE & B
main53155-78030i202403
OVERTRAIL PACKAGE&TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202403
OVERTRAIL PACKAGE&TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
OVERTRAIL PACKAGE&TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH
main53155-78030i202403
OVERTRAIL PACKAGE&TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACKMONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTI
main53155-78030i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202403
TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202403
TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FU
main53155-78030i202403
TOWING PACKAGE-1000KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *PVM)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANE CHANGE ASSIST-WITH(*ARFHL & SAFE EXIT ASSIST)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202403
MOROCCO SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53155-78030i202111-202403
MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
main53155-78030i202403
TAIWAN SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB *PVM)
main53155-78030i202403
TAIWAN SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
TAIWAN SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE &*PVM)
main53155-78030i202111-202403
TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202111-202403
TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53155-78030i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53155-78030i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53155-78030i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53155-78030i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53155-78030i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53155-78030i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53155-78030i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53155-78030i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53155-78030i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53155-78030i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53155-78030i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53155-78030i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
CHILE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202111-202403
TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53155-78030i202111-202403
TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53155-78030i202111-202403
TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FU
main53155-78030i202111-202403
TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)
main53155-78030i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
53285NSEAL, RADIATOR SIDE AIR, RH
main53285-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53285-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)
main53285-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53285-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53285-78010i202111-202506
53286FSEAL, RADIATOR SIDE AIR, LH
main53286-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
main53286-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)
main53286-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
main53286-78010i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM)
main53286-78010i202111-202506
53395JSEAL, HOOD TO FRONT END PANEL
main53395-78030i202111-202210
sub53395-78031
main53395-78031i202211-202506
7501
8408
8604
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
main89348-78220i202111-202403
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH
main89348-78220i202111-202403
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT),RH
main89348-78220i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),RH
main89348-78220i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RH
main89348-78220i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),RH
main89348-78220i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,RH
main89348-78220i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM),RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM)&ADVANCED PARK-WITH,RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *PVM),RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,RH
main89348-78220i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),RH
main89348-78220i202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),RH
main89348-78220i202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),RH
main89348-78220i202111-202403
RH
main89348-78220i202111-202403
MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),RH
main89348-78220i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),RH
main89348-78220i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),RH
main89348-78220i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),RH
main89348-78220i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),RH
main89348-78220i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),RH
main89348-78220i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),RH
main89348-78220i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR),RH
main89348-78220i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),RH
main89348-78220i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),RH
main89348-78220i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),RH
main89348-78220i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),RH
main89348-78220i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),RH
main89348-78220i202111-202403
COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),RH
main89348-78220i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),RH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM)&ADVANCED PARK-WITH,LH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *PVM),LH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),LH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,LH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL WITH(GRILLE SEAL)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),LH
main89348-78230i202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),LH
main89348-78230i202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),LH
main89348-78230i202111-202403
LH
main89348-78230i202111-202403
MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),LH
main89348-78230i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),LH
main89348-78230i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),LH
main89348-78230i202111-202403
INDIA SPEC&COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),LH
main89348-78230i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),LH
main89348-78230i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),LH
main89348-78230i202111-202403
INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),LH
main89348-78230i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR),LH
main89348-78230i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),LH
main89348-78230i202111-202403
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),LH
main89348-78230i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR),LH
main89348-78230i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),LH
main89348-78230i202403
INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),LH
main89348-78230i202111-202403
COMFORT PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),LH
main89348-78230i202111-202403
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),LH
main89348-78230i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),LH
main89348-78230i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),LH
main89348-78230i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM),LH
main89348-78230i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&ADVANCED PARK-WITH,LH
main89348-78230i202403
OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),LH
main89348-78230i202403
RADIATOR GRILLE-OVERTRAIL NORMAL&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB *PVM),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),LH
main89348-78230i202111-202403
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE),LH
9010906388
main90109-06388
9015960431
main90159-60431
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127

20 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
