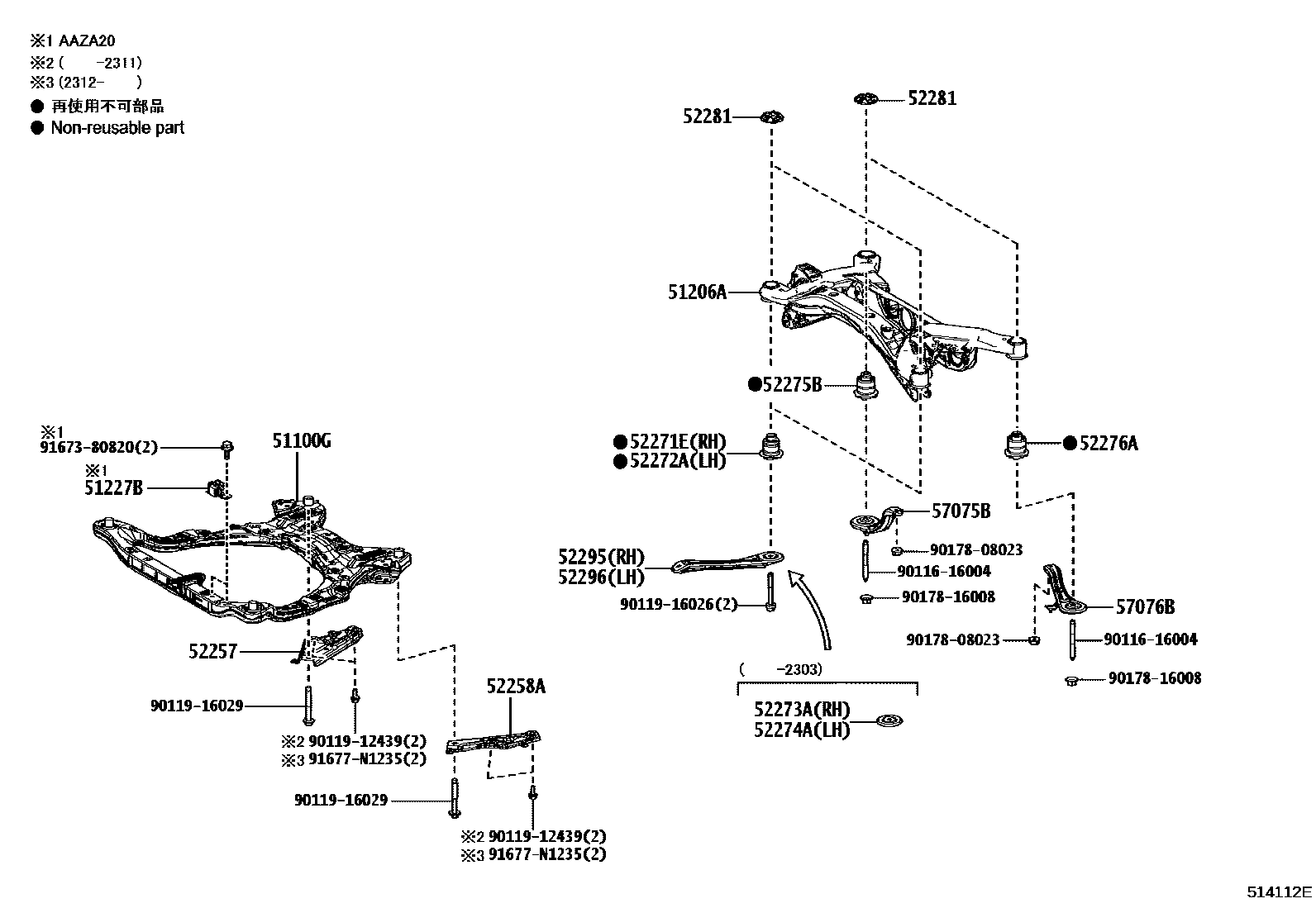

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1SUSPENSION CROSSMEMBER 0004 1SUSPENSION CROSSMEMBER 0005 1UNDER COVER 0006 1UNDER COVER 0007 1UNDER COVER 0008 1UNDER COVER 0009 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42051iAAZH26..RHD;AAZH26..LHD..EUR;AAZA2#,AAZH20,21,25,MAZA20,TAZA25202111-202405

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42070iAAZA25,TAZA25..EUR,GEN202111-202403

main51206-42080iAAZH25,26202403

main51206-42090iAAZH20,21,MAZA20202403

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33120iAAZA2#202403-202506

main51229-78010iTAZA25..GCC202111-202405

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAAZA2#202403-202506

main52257-78010iTAZA25..EUR,GEN202111-202403

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAAZA2#,AAZH2#,MAZA20..CHI,EUR,GEN202111-202403

main52258-78010iTAZA25..EUR,GEN202111-202403

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-42010iAAZA2#202403-202506

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-42010iAAZH2#,MAZA20,TAZA25202403

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-33030iAAZA2#,AAZH2#,MAZA20..CHI,EUR,GEN202111-202303

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-33030iAAZA2#,AAZH2#,MAZA20..CHI,EUR,GEN202111-202303

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42010iAAZA2#202403-202506

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42010iAAZA2#202403-202506

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020×4iAAZH25,TAZA25..GCC202111-202405

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-78020iAAZH2#,MAZA20,TAZA25202403

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-78020iAAZA2#202403-202506

57075BBRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-78010iAAZH2#,MAZA20,TAZA25202403

57076BBRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-78010iAAZH25,TAZA25..GCC202111-202405

9011616004

main90116-16004

9011912439

main90119-12439

9011916026

main90119-16026

9011916029

main90119-16029

9017808023

main90178-08023

9017816008

main90178-16008

9167380820

main91673-80820

91677N1235

main91677-N1235

24 parts on this diagram · 9 diagrams in section
