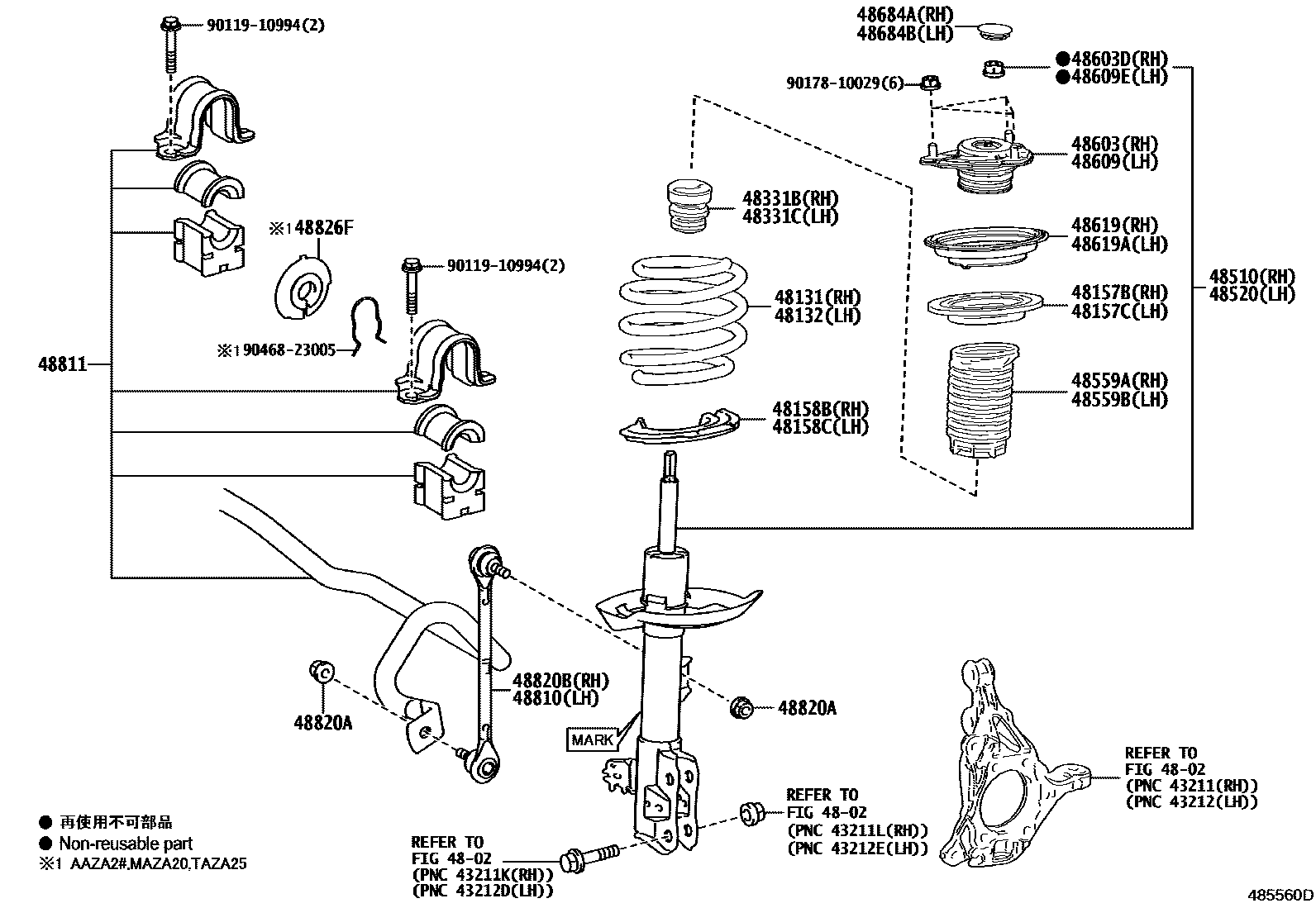

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
OVERTRAIL PACKAGE
OVERTRAIL PACKAGE
OVERTRAIL PACKAGE
48132SPRING, FRONT COIL, LH
OVERTRAIL PACKAGE
OVERTRAIL PACKAGE
OVERTRAIL PACKAGE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-78220
MARK 48510-78230
MARK 48510-78240
MARK 48510-78250
MARK 48510-78280
MARK 48510-78310,INDONESIA SPEC&"F SPORT"*(F)
MARK 48510-78560,AZB,GRZ SPEC
MARK 48510-78540
MARK 48510-78550,INDONESIA SPEC
MARK 48510-78570
MARK 48510-78580,AZB,GRZ SPEC
MARK 48510-78290,TURKEY SPEC
MARK 48510-78380,CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC)
TURKEY SPEC
MARK 48510-78490,COSTARICA,GUATEMALA SPEC&OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-78220
MARK 48520-78230
MARK 48520-78240
MARK 48520-78250
MARK 48520-78280
MARK 48520-78310,INDONESIA SPEC&"F SPORT"*(F)
MARK 48520-78560,INDIA SPEC&"VERSION L"*(L)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
MARK 48520-78540
MARK 48520-78550,INDONESIA SPEC
MARK 48520-78570
MARK 48520-78580,AZB,GRZ SPEC
MARK 48520-78290,TURKEY SPEC
MARK 48520-78380,FRANCE SPEC&"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC)
TURKEY SPEC
MARK 48520-78490,MONGOL SPEC&OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48826FPROTECTOR, STABILIZER
9011910994
main90119-10994
9017810029
main90178-10029
9046823005
main90468-23005
29 parts on this diagram · 2 diagrams in section
