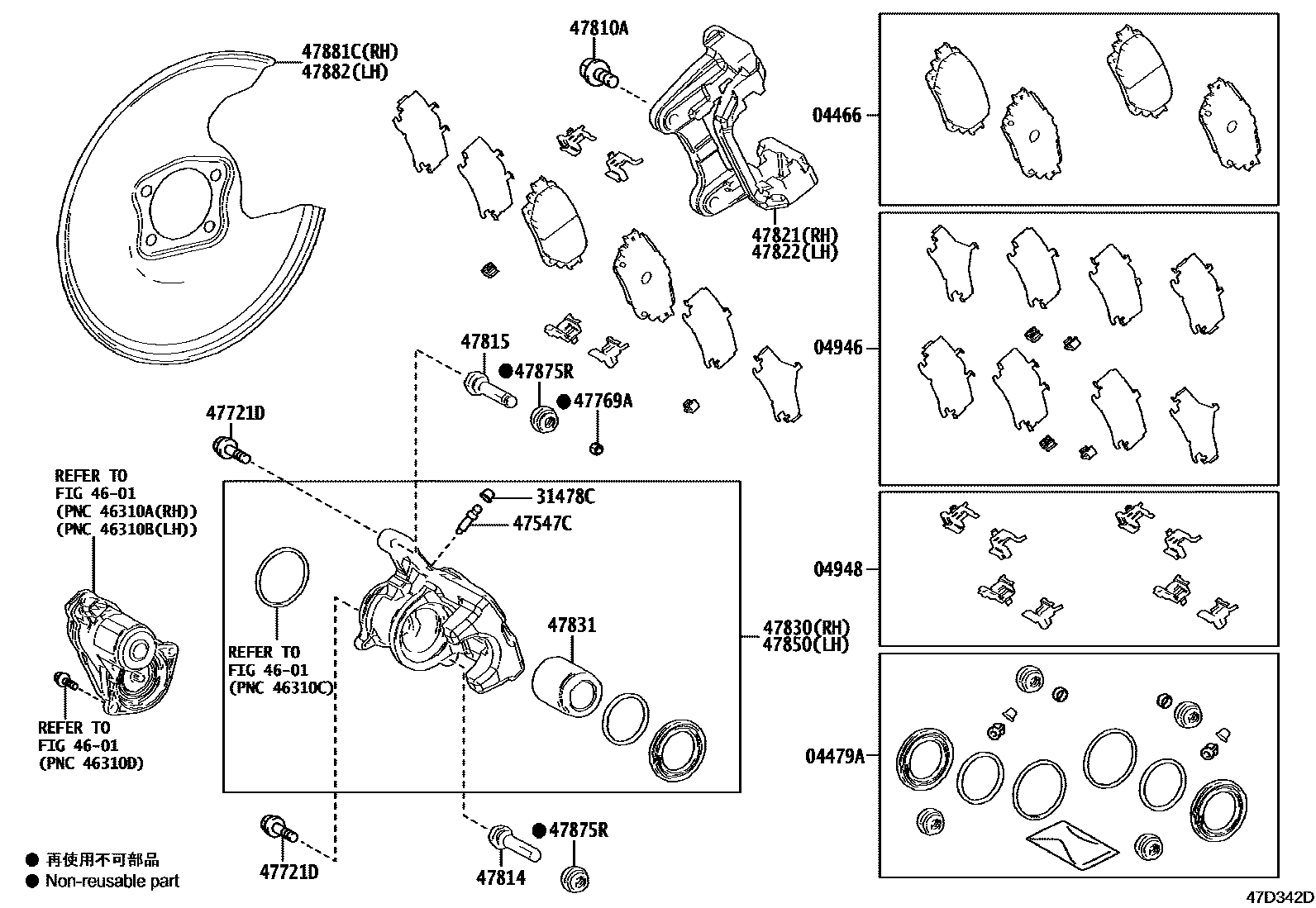

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-30410iAAZA2#202403-202506

MARK NBK D6363-FF N

main04466-F4020iAAZH25,TAZA25..GCC202111-202405

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42110iAAZH25,TAZA25..GCC202111-202506

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30280iAAZA2#202403-202506

main04946-F4020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

main04948-V2010iAAZA2#202403-202506

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAAZA2#202111-202506

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAAZA2#202111-202506

*8-1.00PX23-12.5

sub90016-AA614

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAAZA2#202111-202506

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14212iAAZA2#202111-202506

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAAZA2#202111-202506

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-42110iAAZA2#202111-202506

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-42100iAAZA2#202111-202506

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42100iAAZA2#202111-202506

47831PISTON, REAR DISC BRAKE

main47831-42100iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202210

main47831-58040iAAZH2#,MAZA20,TAZA25202210-202506

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42090iAAZA2#202111-202506

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAAZA2#202111-202506

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-42040iAAZA2#202111-202506

47882COVER, DISC BRAKE DUST, REAR LH

main47882-42040iAAZA2#202111-202506

20 parts on this diagram · 1 diagram in section
