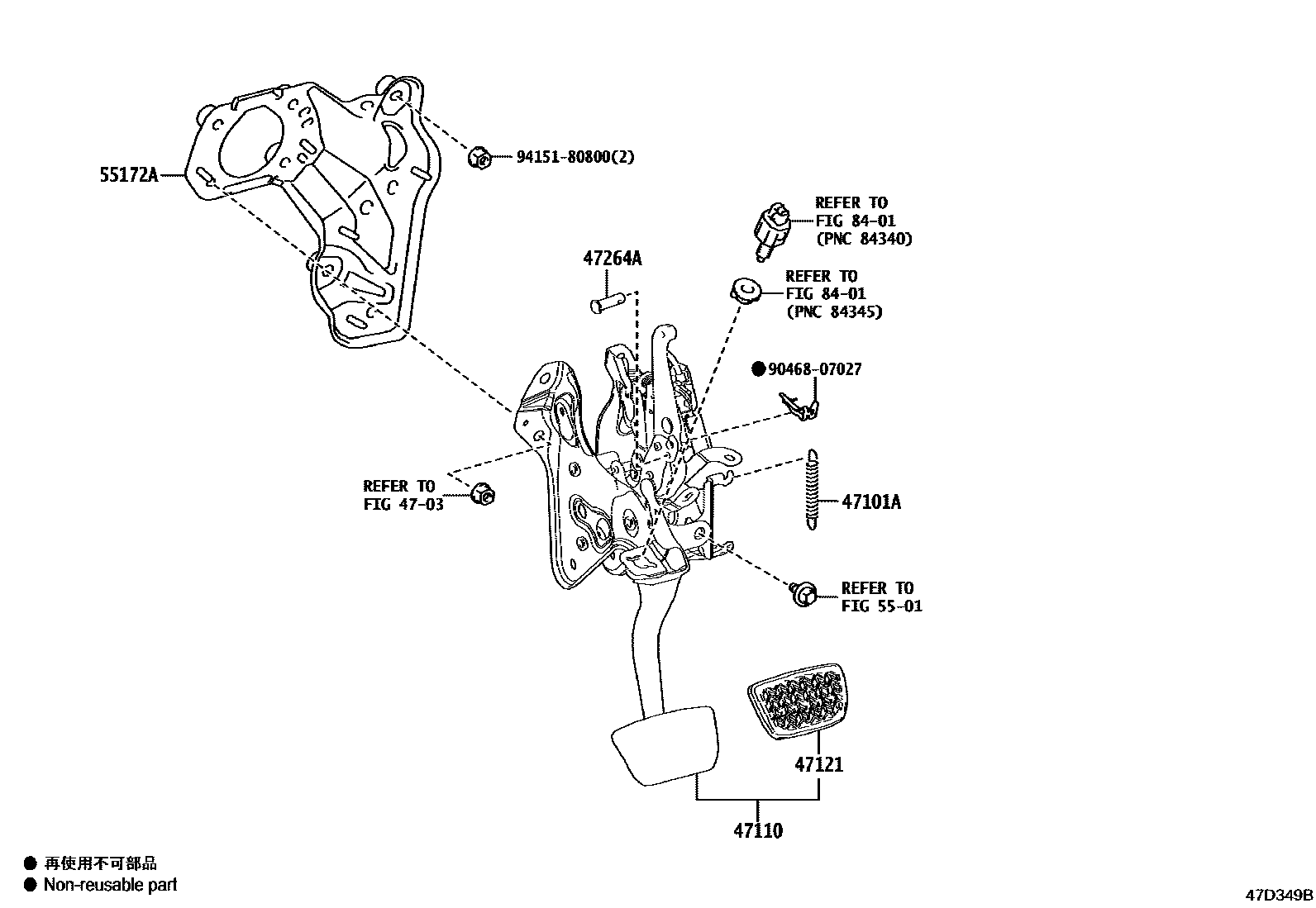

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

4703

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAAZA2#202111-202506

47110SUPPORT ASSY, BRAKE PEDAL

main47110-78080iTAZA25..LHD..(EUR,GEN)202403

OVERTRAIL PACKAGE

main47110-78080iAAZA2#,MAZA20..LHD202111-202506

main47110-78090iTAZA25..RHD202403

OVERTRAIL PACKAGE

main47110-78090iAAZA2#..RHD202111-202506

main47110-78100iAAZH2#..LHD202111-202405

main47110-78110iAAZH20,25,26..RHD202111-202403

main47110-78120iTAZA25..LHD..(EUR,GEN)202111-202403

main47110-78120iTAZA25..GCC202111-202405

"F SPORT"*(F)

main47110-78130iTAZA25..RHD202111-202403

main47110-78140iAAZH25..GCC202111-202405

"F SPORT"*(F)

main47110-78150iAAZH20,25,26..RHD202111-202403

"F SPORT"*(F)

47121PAD, BRAKE PEDAL

main47121-11020iTAZA25..EUR,GEN202111-202405

"F SPORT"*(F)

main47121-62010iAAZA2#202111-202506

main47121-62010iTAZA25..EUR,GEN202403

OVERTRAIL PACKAGE

47264APIN(FOR PUSH ROD)

main90240-06028iTAZA25..GCC202111-202506

main90240-08082iAAZH25..GCC202111-202405

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-42010iAAZA2#,AAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR,GEN)202111-202506

main55172-42030iAAZA2#,AAZH20,25,26,TAZA25..RHD202111-202303

main55172-78010iAAZA2#..RHD202303-202506

8401

9046807027

main90468-07027

9415180800

main94151-80800

10 parts on this diagram · 6 diagrams in section
