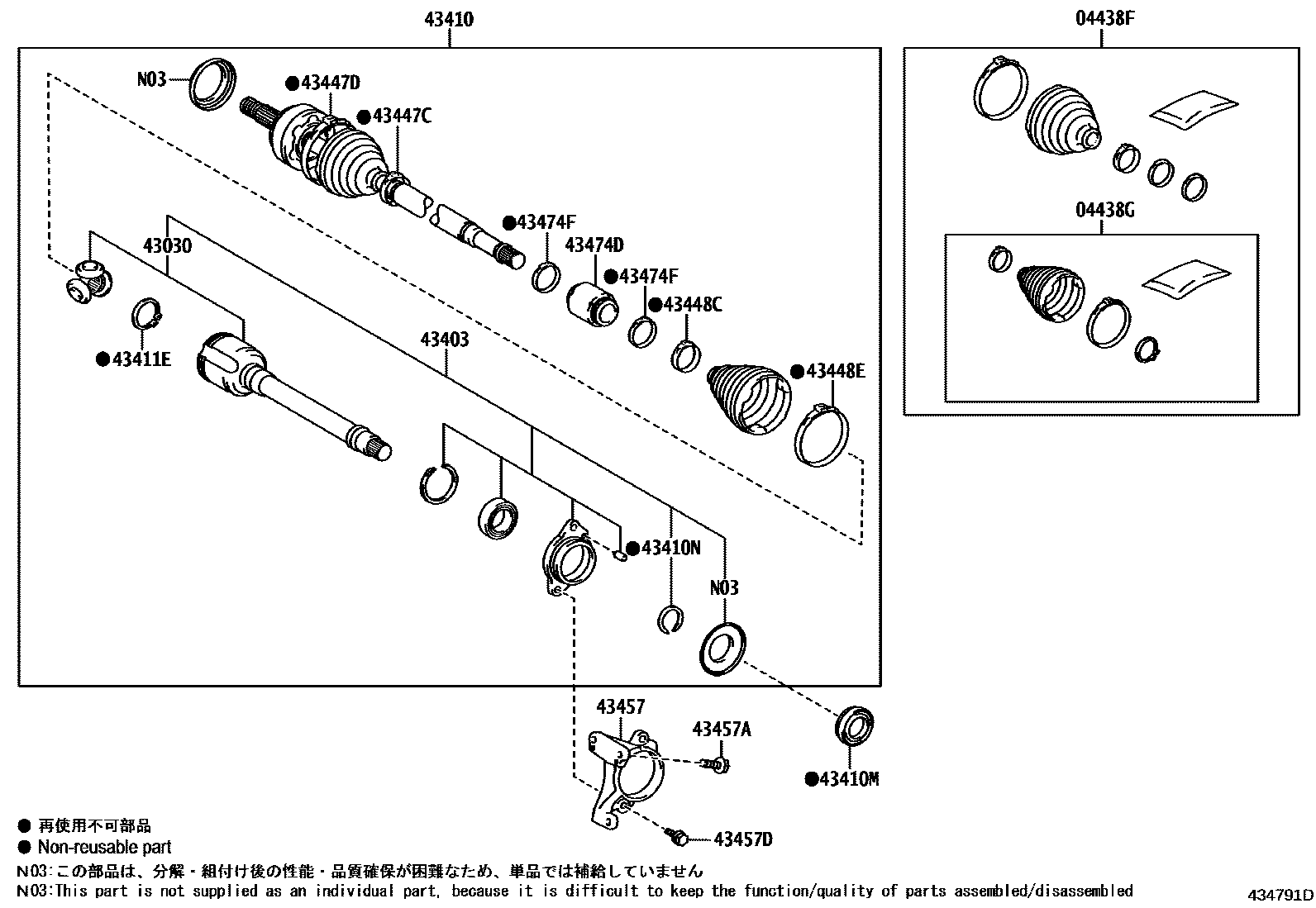

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1RH 0006 1LH 0007 1LH 0008 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42210iAAZH2#202111-202211

sub04427-42211

main04427-42211iAAZH2#202211-202405

main04427-78020iTAZA25202111-202308

main04427-78021iTAZA25..EUR,GEN202309-202405

main04427-78030iAAZA2#202111-202506

main04427-78050iMAZA20202201-202403

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-42090iAAZH2#202111-202211

sub04438-48170

main04437-48161iTAZA25..EUR,GEN202208-202405

main04437-48180iAAZH2#..CHI,EUR,GEN202211-202405

main04437-78030iTAZA25202111-202208

sub04437-48161

main04437-78040iAAZA2#202111-202506

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-78070iTAZA25202111-202405

main43030-78090iAAZA20202111-202506

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-78020iAAZA20202111-202506

main43403-78030iMAZA20202201-202403

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42390iAAZH2#202111-202210

sub43410-42391

main43410-42391iAAZH2#..CHI,EUR,GEN202211-202405

main43410-78050iTAZA25..GCC202111-202405

main43410-78110iAAZA20202111-202506

main43410-78120iAAZA25202111-202506

main43410-78130iMAZA20202201-202403

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iAAZH2#202111-202506

main90311-40047iMAZA20202201-202403

main90316-34001iAAZA25202111-202506

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0R050iAAZA25202111-202506

main43425-0R200iAAZA20202111-202506

main43425-42030iAAZH2#202111-202405

main43425-78040iTAZA25..EUR,GEN202111-202405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12020iAAZA2#202111-202506

main43425-42040iAAZH2#..CHI,EUR,GEN202111-202405

main43425-58030iTAZA25..EUR,GEN202111-202405

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42030iAAZH2#202111-202211

main42345-48140iTAZA25202111-202405

main42345-48240iAAZH2#202211-202405

main42345-F4320iAAZA2#,MAZA20202111-202506

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42140iAAZH2#202111-202211

sub42345-48280

main42345-48280iAAZH2#202211-202405

main42345-F4180iTAZA25202111-202405

main42345-F4340iAAZA2#202111-202506

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42030iAAZH2#202111-202211

main42345-48140iTAZA25202111-202405

main42345-48240iAAZH2#202211-202405

main42345-78110iMAZA20202111-202506

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42020iAAZH2#202111-202211

main42345-48130iTAZA25202111-202405

main42345-48270iAAZH2#..CHI,EUR,GEN202211-202405

main42345-78100iAAZA2#202111-202506

43457BRACKET, DRIVE SHAFT BEARING

main43457-33050iAAZA20202111-202506

main43457-33060iMAZA20202201-202403

main43457-42190iAAZA25,TAZA25..EUR,GEN202111-202506

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10381iAAZA2#202111-202506

*10-1.25PX32-30

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10361iAAZA20202111-202506

main90119-10461iAAZA25,TAZA25..EUR,GEN202111-202506

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0R070iAAZA2#202111-202506

main43474-42070iAAZH2#202111-202405

main43474-48040iTAZA25..EUR,GEN202111-202405

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0R250iAAZA2#202111-202506

main42345-42040iAAZH2#202111-202204

sub42345-42240

main42345-42240iAAZH2#202205-202405

main42345-48170iTAZA25202111-202405

17 parts on this diagram · 8 diagrams in section
