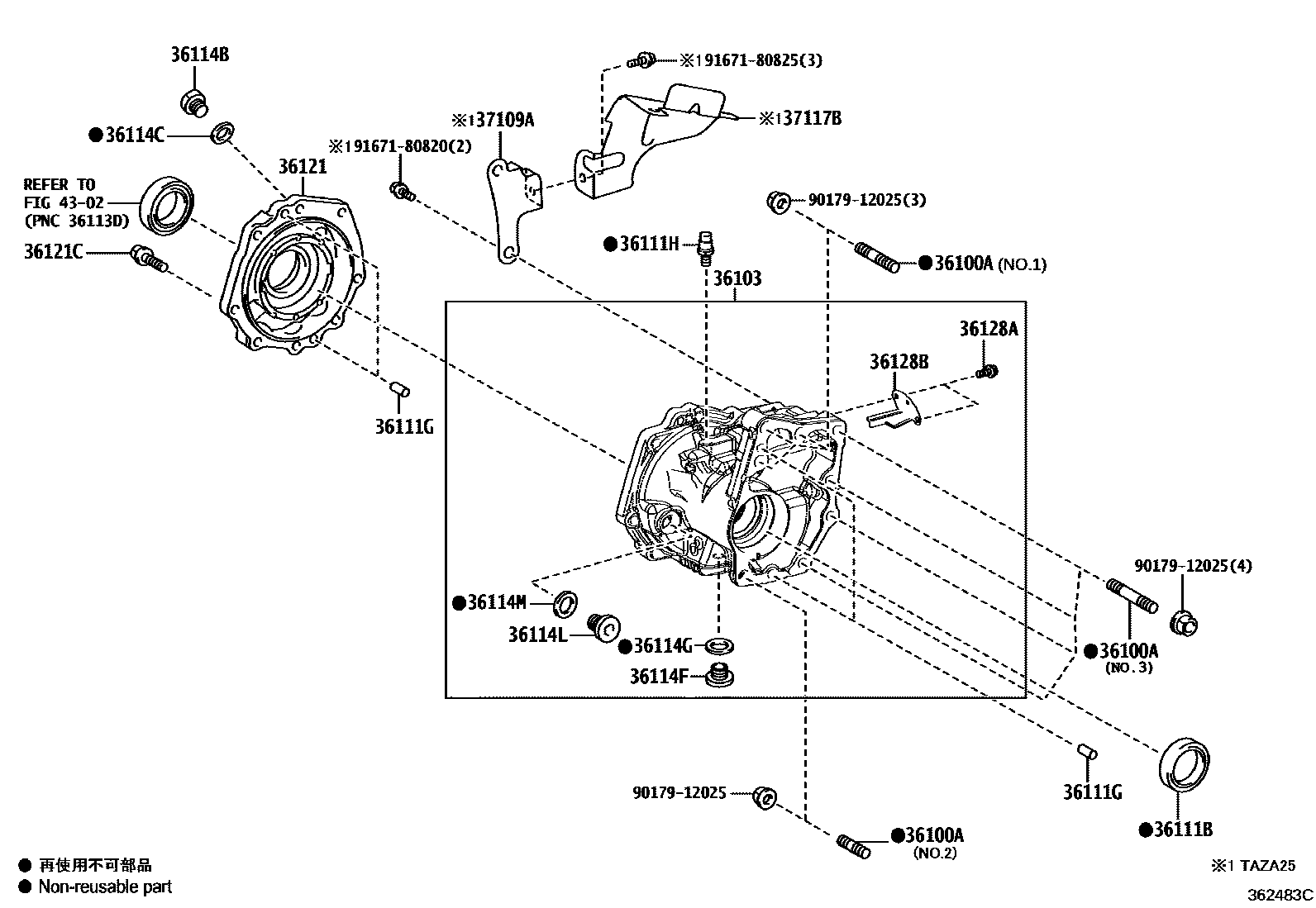

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041iTAZA25..GCC202111-202506

S=30 & 22,L=64,NO.3

main90116-12051iAAZA25,TAZA25..EUR,GEN202111-202506

S=22 & 22,L=73,NO.1

main90116-12052iAAZA25,TAZA25..EUR,GEN202111-202506

S=22 & 22,L=53,NO.2

36103CASE SUB-ASSY, TRANSFER

main36103-52030iAAZA25202111-202506

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iAAZA25,TAZA25..EUR,GEN202111-202506

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iAAZA25202111-202506

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iAAZA25202111-202506

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iAAZA25202111-202506

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iAAZA25202111-202506

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iTAZA25202111-202506

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iAAZA25202111-202506

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iAAZA25202111-202506

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iAAZA25202111-202506

36121COVER, TRANSFER CASE, NO.1

main36121-52020iAAZA25202111-202506

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030iAAZA25202111-202506

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614iAAZA25202111-202506

36128BDEFLECTOR, BREATHER OIL

main36128-42010iAAZA25202111-202506

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-42010iTAZA25202111-202405

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-78010iTAZA25202111-202405

4302

9017912025

main90179-12025

9167180820

main91671-80820

9167180825

main91671-80825

21 parts on this diagram · 1 diagram in section
