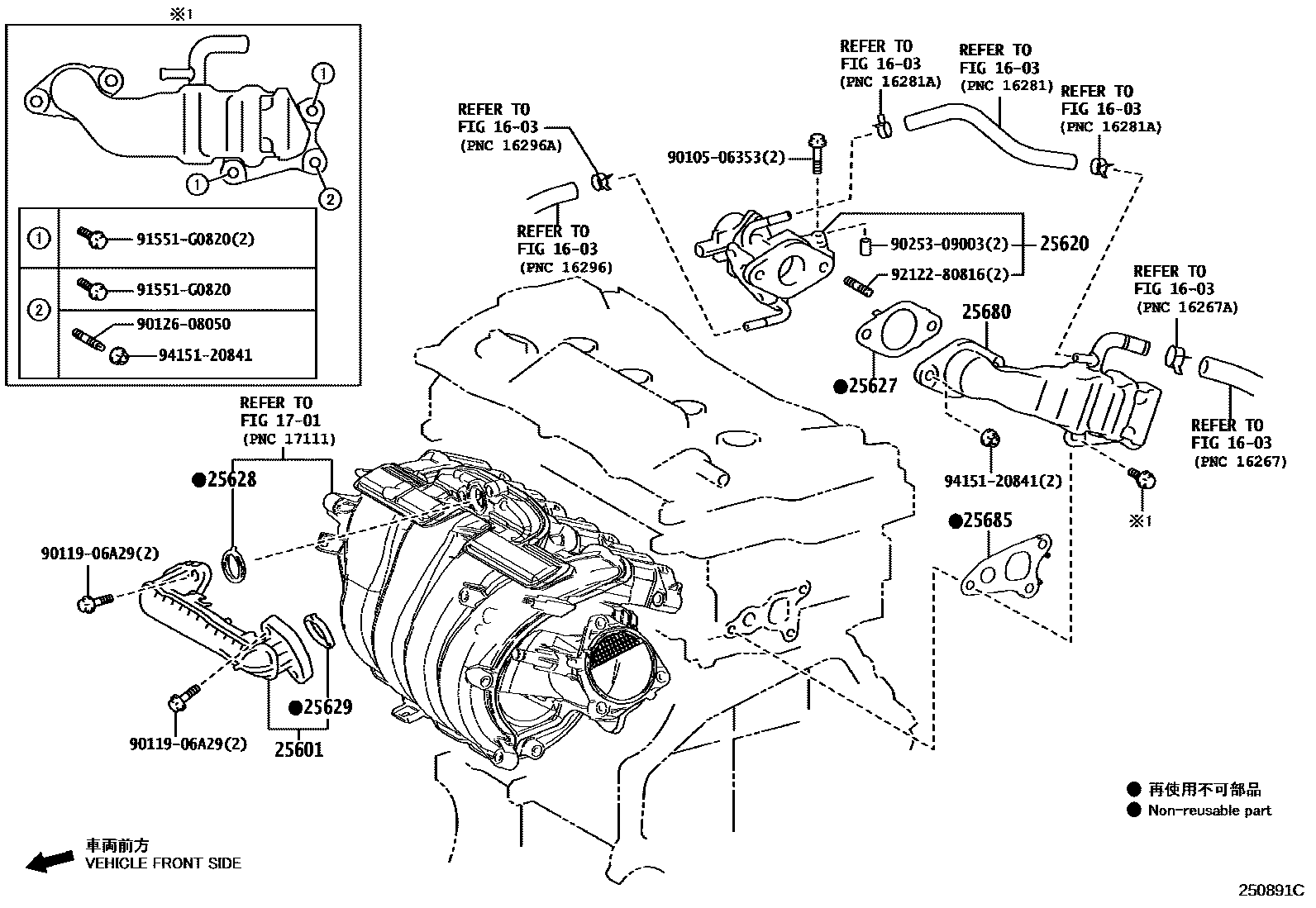

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-24030iM20AFKS..MAZA20202201-202403

main25601-25030iA25AFXS..AAZH25..GCC202111-202405

25620VALVE ASSY, EGR

main25620-24050iA25AFXS..AAZH20,25,26..EUR,GCC,GEN202403

main25620-24060supersedes 25620-24050iA25AFXS..AAZH20,25..LHD..EUR202403

KAZAKHSTAN SPEC

25627GASKET, EGR VALVE

main25627-24010iA25AFKS..AAZA2#202403-202506

25628GASKET, EGR INLET

main25628-25010iA25AFKS..AAZA2#202403-202506

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFKS..AAZA2#202403-202506

25680COOLER ASSY, EGR

main25680-25060iA25#..AAZA2#,AAZH20,25,26..EUR,GEN202111-202403

main25680-25070iA25AFKS..AAZA25..EUR202403-202506

UKRAINE SPEC

main25680-25080supersedes 25680-25060iA25AFXS..AAZH20,25..LHD..EUR202111-202403

MOROCCO SPEC

main25680-24020supersedes 25680-24010iM20AFKS..MAZA20202201-202403

KAZAKHSTAN SPEC

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25AFXS..AAZH2#202403

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

16 parts on this diagram · 2 diagrams in section
