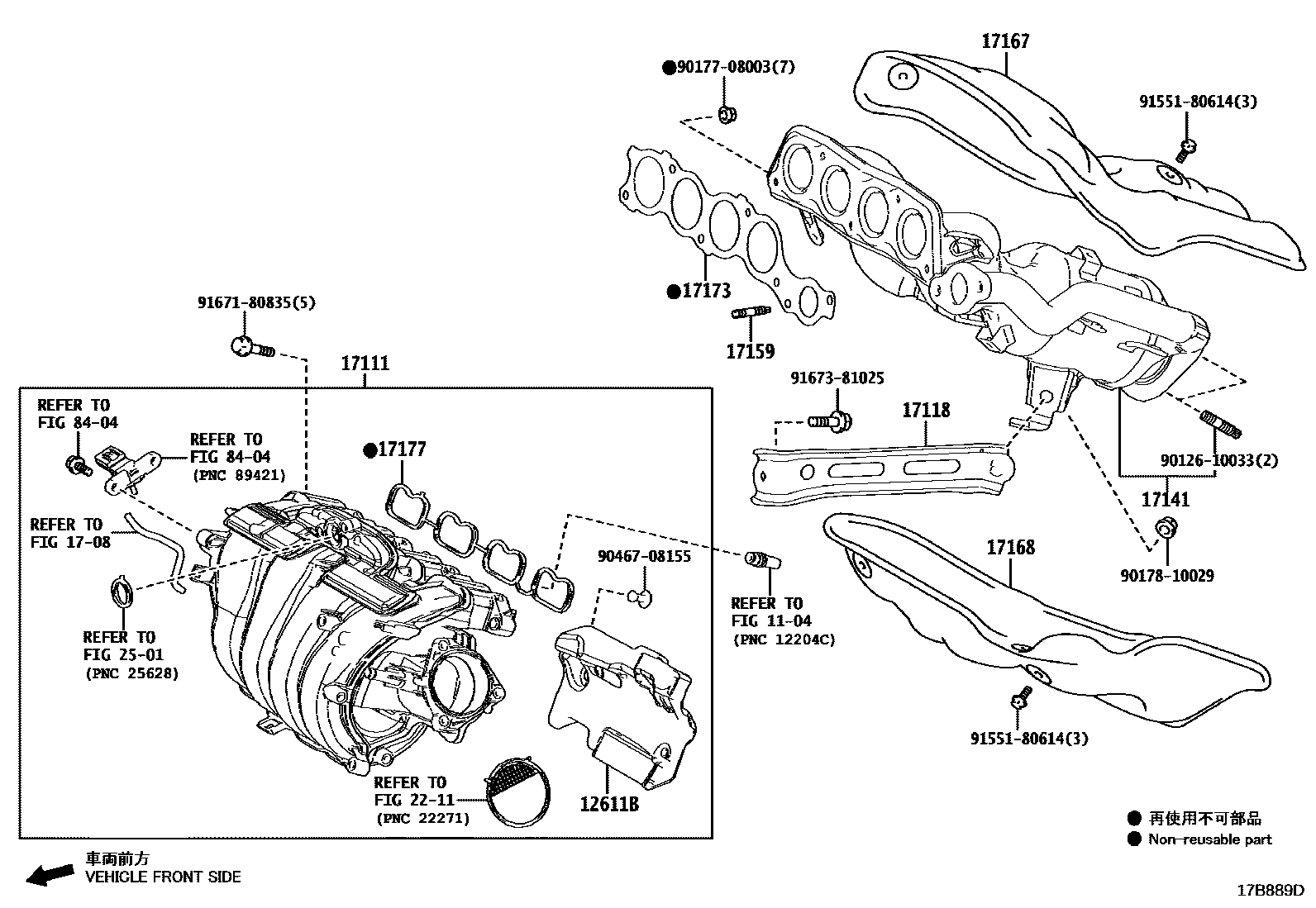

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1104

12611BCOVER, ENGINE, NO.1

main12613-25010iA25AFKS..AAZA2#202111-202403

main12613-25020iA25AFXS..AAZH25..GCC202111-202405

1708

17111MANIFOLD, INTAKE

main17120-24010iM20AFKS..MAZA20202403

main17120-25010iA25AFKS..AAZA2#202403-202506

main17120-25020iA25AFXS..AAZH25..GCC202111-202405

main17120-25080iT24AFTS..TAZA25..EUR,GEN202111-202403

17118STAY, MANIFOLD

main17118-24020iM20AFKS..MAZA20202201-202403

main17118-25030iA25#..AAZA2#,AAZH2#..CHI,EUR,GEN202111-202403

main17118-25040iT24AFTS..TAZA25202403

17141MANIFOLD, EXHAUST

main17141-24090iM20AFKS..MAZA20202201-202303

main17141-24330iM20AFKS..MAZA20202403

main17141-25021iA25AFXS..AAZH25..LHD..EUR202111-202303

MOLDOVA SPEC

main17141-25031iA25AFKS..AAZA2#..EUR,GEN202403-202506

main17141-25081iA25#..AAZA20,AAZH20,21,25..CHI202111-202303

main17141-25182iA25AFXS..AAZH20,25,26..EUR202403-202506

*114=TOYOTA/25180/Y

main17141-25590iA25AFKS..AAZA20..CHI202403-202506

main17141-25630iA25AFXS..AAZH25..LHD..EUR202303-202403

MOLDOVA SPEC

main17141-25750iA25AFXS..AAZH20,26..LHD..EUR202403

MOLDOVA SPEC

main17141-25770iA25AFXS..AAZH20,21,25..CHI202403

main17141-25320iA25AFXS..AAZH25,26..LHD..GEN202403

BRAZIL SPEC

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7iM20AFKS..MAZA20202403

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24040iM20AFKS..MAZA20202403

main17167-25030iA25AFXS..AAZH20,25,26..EUR202111-202403

main17167-25040iA25#..AAZA20,AAZH20,21,25..CHI202111-202303

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24040iM20AFKS..MAZA20202403

main17168-25040iA25#..AAZA2#,AAZH2#..CHI,EUR,GEN202111-202403

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010iM20AFKS..MAZA20202201-202403

main17173-25020iA25AFKS..AAZA2#202403-202506

main17173-25030iT24AFTS..TAZA25202403

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020iM20AFKS..MAZA20202403

main17171-25010iA25#..AAZA2#,AAZH2#..CHI,EUR,GEN202111-202403

main17177-25040iT24AFTS..TAZA25..GCC202111-202405

2211

2501

8404

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9046708155

main90467-08155

9155180614

main91551-80614

9167180835

main91671-80835

9167381025

main91673-81025

21 parts on this diagram · 7 diagrams in section
