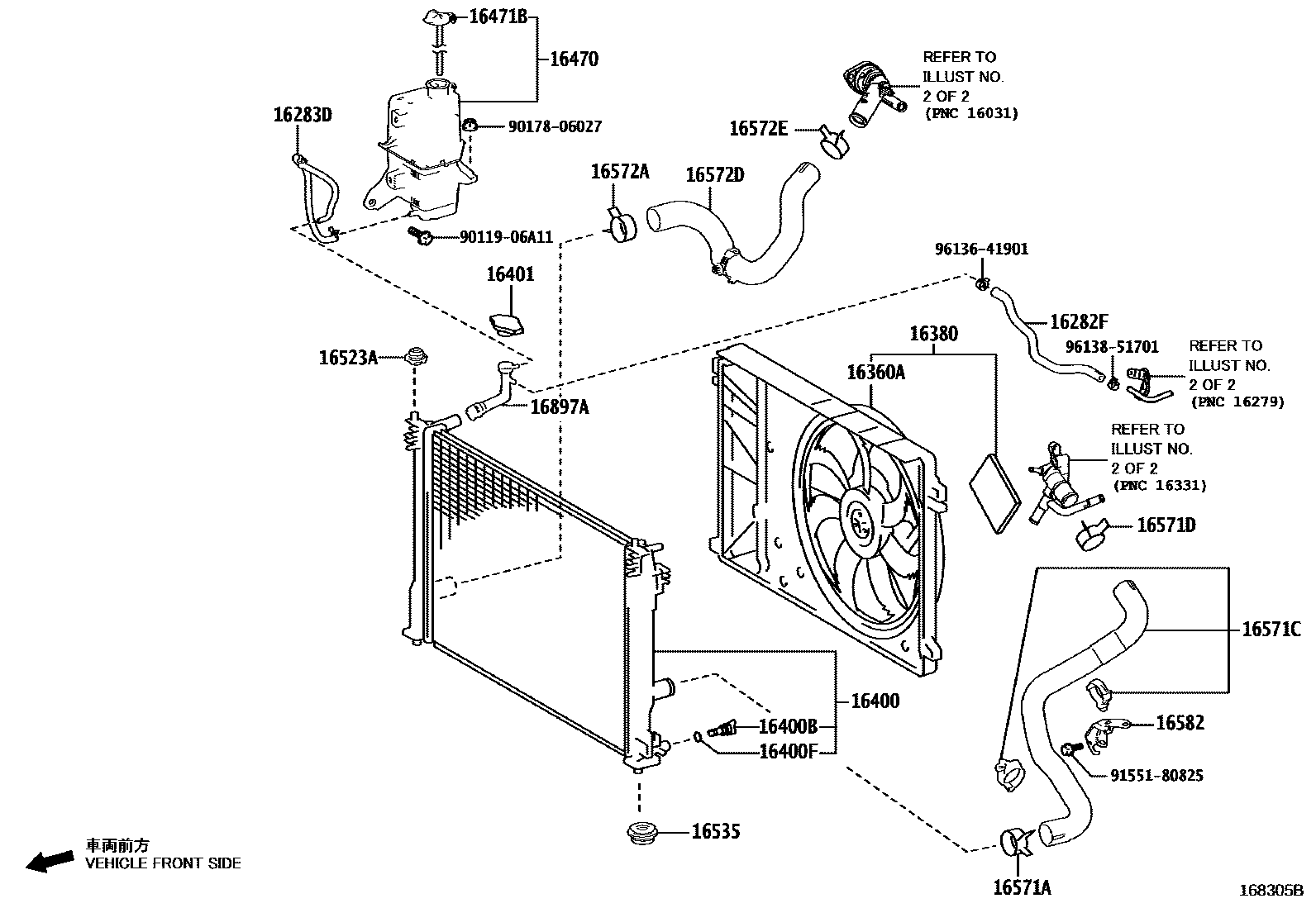

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE 0003 1RADIATOR SIDE 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1RADIATOR SIDE 0007 1ENGINE SIDE,W/O(ENGINE OIL CO0008 1ENGINE SIDE, W(ENGINE OIL COO0009 1 0010 1 0011 1 0012 1

16282HOSE, WATER BY-PASS, NO.5

main16282-24020iM20AFKS..MAZA20202403

main16282-25030iA25AFKS..AAZA2#202403-202506

main16282-25040iA25AFXS..AAZH2#..CHI,EUR,GEN202111-202403

main16282-25130iT24AFTS..TAZA25..EUR,GEN202111-202403

16282FHOSE, WATER BY-PASS, NO.5

main16282-24050iM20AFKS..MAZA20202403

main16282-25100iA25AFXS..AAZH21,26202403

main16282-25120iT24AFTS..TAZA25..EUR,GEN202111-202403

main16282-25140iA25AFKS..AAZA2#202111-202403

main16282-25150iA25AFXS..AAZH20,25202403

16283HOSE, WATER BY-PASS, NO.6

main16283-25010iA25AFKS..AAZA25..EUR202403-202506

UKRAINE SPEC

main16283-25020iA25AFXS..AAZH25..GCC202111-202405

16283DHOSE, WATER BY-PASS, NO.6

main16283-25080iA25AFXS..AAZH20,25202403

main16283-25090iA25AFXS..AAZH21,26202111-202403

16360AFAN ASSY, W/MOTOR

main16360-25010iM20AFKS..MAZA20202403

main16360-25030iA25AFXS..AAZH25..GCC202111-202405

main16360-25040iT24AFTS..TAZA25202111-202204

main16360-25041iT24AFTS..TAZA25202403

main16360-31500iA25AFKS..AAZA2#202111-202403

16380BRACKET ASSY, FAN

main16380-31010iA25AFKS..AAZA2#202403-202506

16400RADIATOR ASSY

main16400-25130supersedes 16400-25190iT24AFTS..TAZA25..EUR202403

VIETNAM SPEC

main16400-25170supersedes 16400-25141iA25AFXS..AAZH21,26202403

TOWING PACKAGE-1000KG

main16400-25190iM20AFKS..MAZA20202201-202403

main16400-31690supersedes 16400-25190iT24AFTS..TAZA25..GCC202111-202405

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280supersedes 16417-21280iM20AFKS..MAZA20202403

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050supersedes 16492-21050iM20AFKS..MAZA20202403

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25AFKS..AAZA2#202403-202506

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iM20AFKS..MAZA20202403

16471BCAP, RESERVE TANK

main16471-23010iM20AFKS..MAZA20202403

16523ACUSHION, RADIATOR SUPPORT

main16523-25010×2iA25AFKS..AAZA2#202403-202506

16535SUPPORT, RADIATOR, LOWER

main16535-28030×2iA25AFXS..AAZH2#202403

main16535-28060×2iT24AFTS..TAZA25..EUR,GEN202111-202403

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25#..AAZA2#,AAZH2#..CHI,EUR,GEN202111-202403

16571CHOSE, RADIATOR, NO.1

main16571-24040iM20AFKS..MAZA20202201-202403

main16571-25070iA25AFKS..AAZA2#202111-202403

main16571-25120supersedes 16571-25160iA25AFXS..AAZH26;A25AFXS..AAZH20,21,25..CHI,GEN202111-202403

TOWING PACKAGE-1500KG

main16571-25140iT24AFTS..TAZA25..EUR,GEN202111-202403

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002iT24AFTS..TAZA25..GCC202111-202405

main90466-43002iA25#..AAZA2#,AAZH2#..CHI,EUR,GEN202111-202403

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iM20AFKS..MAZA20202403

16572DHOSE, RADIATOR, NO.2

main16572-24040iM20AFKS..MAZA20202403

main16572-25050iA25AFKS..AAZA2#202111-202403

main16572-25060supersedes 16572-25100iA25AFXS..AAZH25..GCC202111-202405

main16572-25080iT24AFTS..TAZA25..EUR,GEN202111-202403

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002×2iT24AFTS..TAZA25..GCC202111-202405

main90466-43002iM20AFKS..MAZA20202201-202403

16582BRACKET, RADIATOR, NO.1

main16582-25010iA25AFKS..AAZA2#202111-202403

16897ANECK, FILLER

main16897-25041iA25AFXS..AAZH21,26202403

main16897-25050iA25AFXS..AAZH20,25202403

9011906A11

main90119-06A11

9017806027

main90178-06027

9155180825

main91551-80825

9613641901

main96136-41901

9613851701

main96138-51701

27 parts on this diagram · 12 diagrams in section
