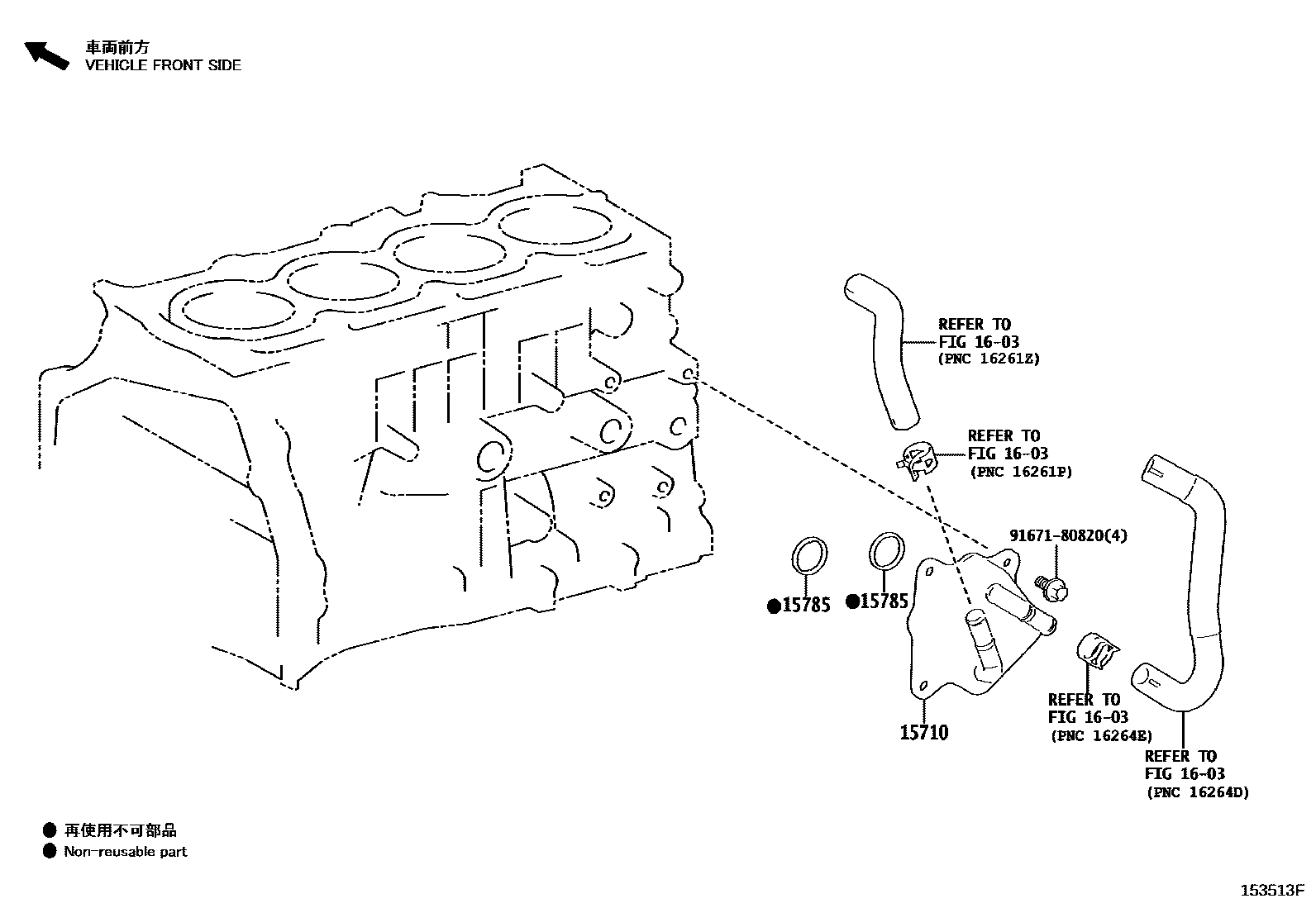

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-25010iA25AFXS..AAZH25..GCC¥28,900202111-202506

main15710-25040iT24AFTS..TAZA25..GCC¥26,900202111-202405

15785GASKET, OIL COOLER

main15785-25010iA25AFXS..AAZH2#¥340202403

ARMENIA SPEC

main15785-25010iM20AFKS..MAZA20¥340202403

BELARUS SPEC

main15785-25010iM20AFKS..MAZA20¥340202403

KAZAKHSTAN SPEC

main15785-25010iM20AFKS..MAZA20¥340202403

UKRAINE SPEC

main15785-25010iM20AFKS..MAZA20¥340202403

AZB,GRZ SPEC

main15785-25010iM20AFKS..MAZA20¥340202403

RUSSIA SPEC

main15785-25010iA25AFKS..AAZA2#¥340202111-202506

main15785-25020iT24AFTS..TAZA25..EUR,GEN¥340202111-202405

1603

9167180820

main91671-80820¥80

4 parts on this diagram · 3 diagrams in section
