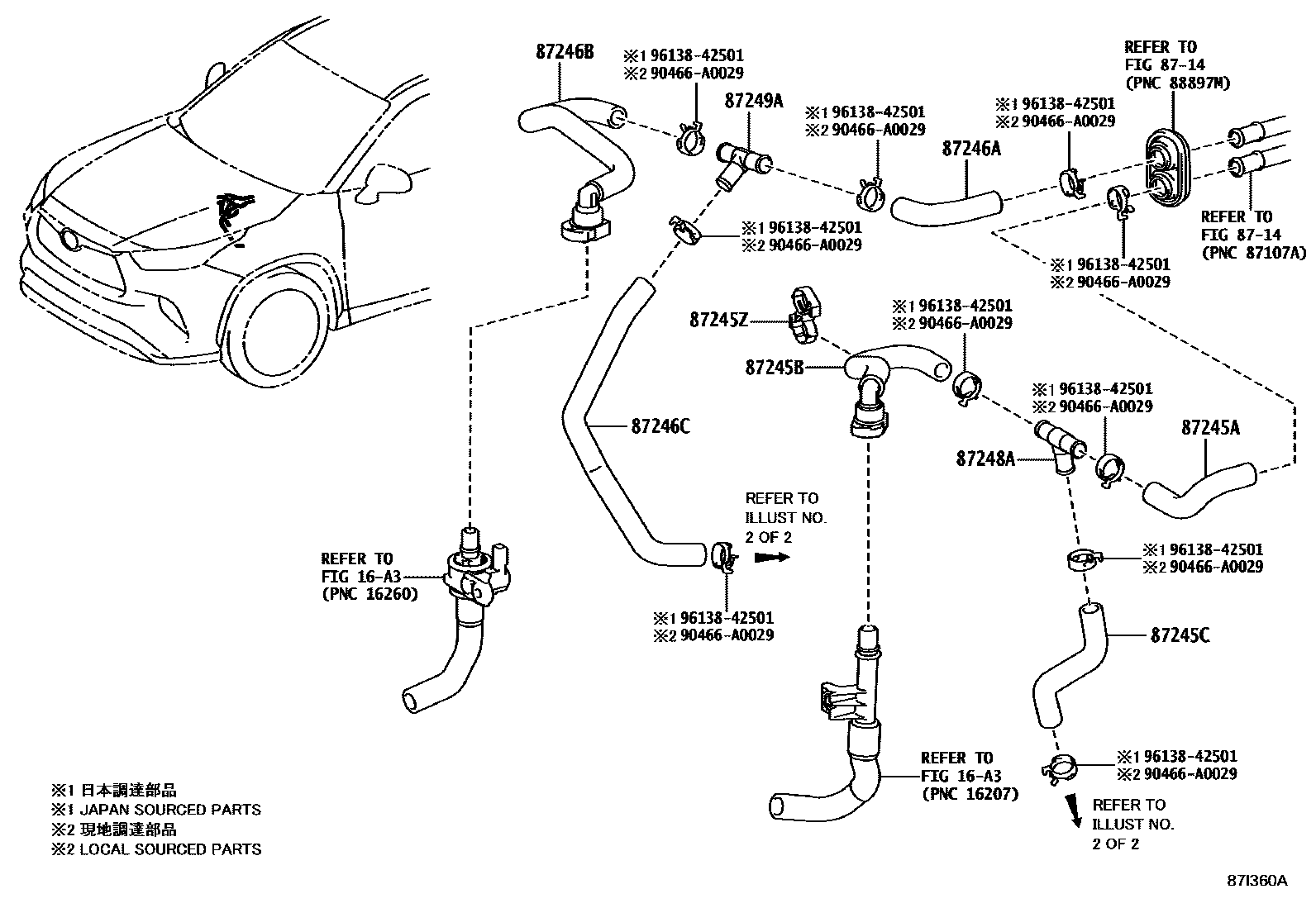

HEATING & AIR CONDITIONING - WATER PIPING
8714
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87245CHOSE, HEATER WATER ,INLET C
87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)
87246AHOSE, HEATER WATER, OUTLET A
87246BHOSE, HEATER WATER, OUTLET B
87246CHOSE, HEATER WATER, OUTLET C
87248APIPE, HEATER WATER INLET, A
87249APIPE, HEATER WATER OUTLET, A
90466A0029
main90466-A0029
9613842501
main96138-42501
12 parts on this diagram · 7 diagrams in section
