HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1REAR AIR DUCT 0006 1REAR AIR DUCT 0007 1SENSOR 0008 1SENSOR 0009 1SENSOR 0010 1SENSOR

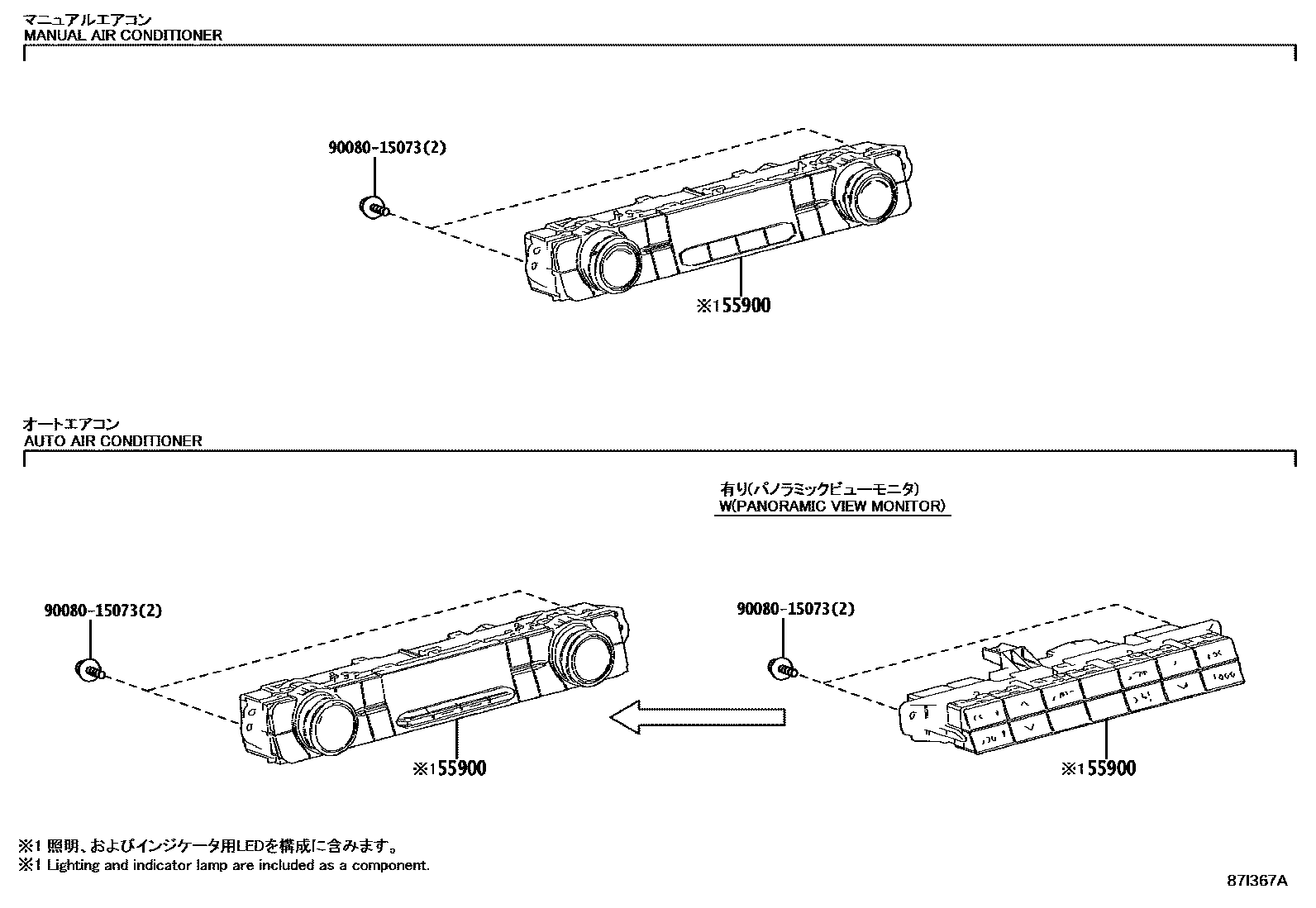

55900CONTROL ASSY, AIR CONDITIONER

main55900-0E560iGSU75..LIMD..RUS202003-202210

main55900-0E561iAXUH78..LHD..LIMD..EUR202210-202311

PLATINUM PACKAGE&BACK MONITOR-PANORAMIC VIEW MONITOR

main55900-0E610iAXUH7#..LIMD..GCC202002-202210

main55900-0E611iAXUH7#..LIMD..GCC202210-202410

main55900-0E620iAXUH7#..(LE,XLE)..GCC202002-202210

main55900-0E621iAXUH7#..(LE,XLE)..GCC202210-202311

main55900-0E650iGSU7#..LIMD..ARL202012-202210

main55900-0E651iTXUA7#..LIMD..ARL202210-202312

main55900-0E670iGSU7#..LE..ARL202012-202210

main55900-0E750iAXUH78..RHD..EUR202011-202210

main55900-0E751iAXUH78..RHD..EUR202210-202312

main55900-0E760iGSU75..LE..RUS;AXUH78..LHD..EUR202003-202210

main55900-0E761iTXUA75..LE..RUS;AXUH78..LHD..EUR202210-202311

main55900-0EA90iAXUH78..LIMD..ARL202012-202210

main55900-0EA91iAXUH78..LIMD..ARL202210-202312

main55900-0EB10iAXUH78..LE..ARL202012-202210

main55900-0EB11iAXUH78..LE..ARL202210-202312

main55900-0ED00iTXUA7#..LE..ARL202210-202312

9008015073

main90080-15073

2 parts on this diagram · 10 diagrams in section
