TELEPHONE & MAYDAY

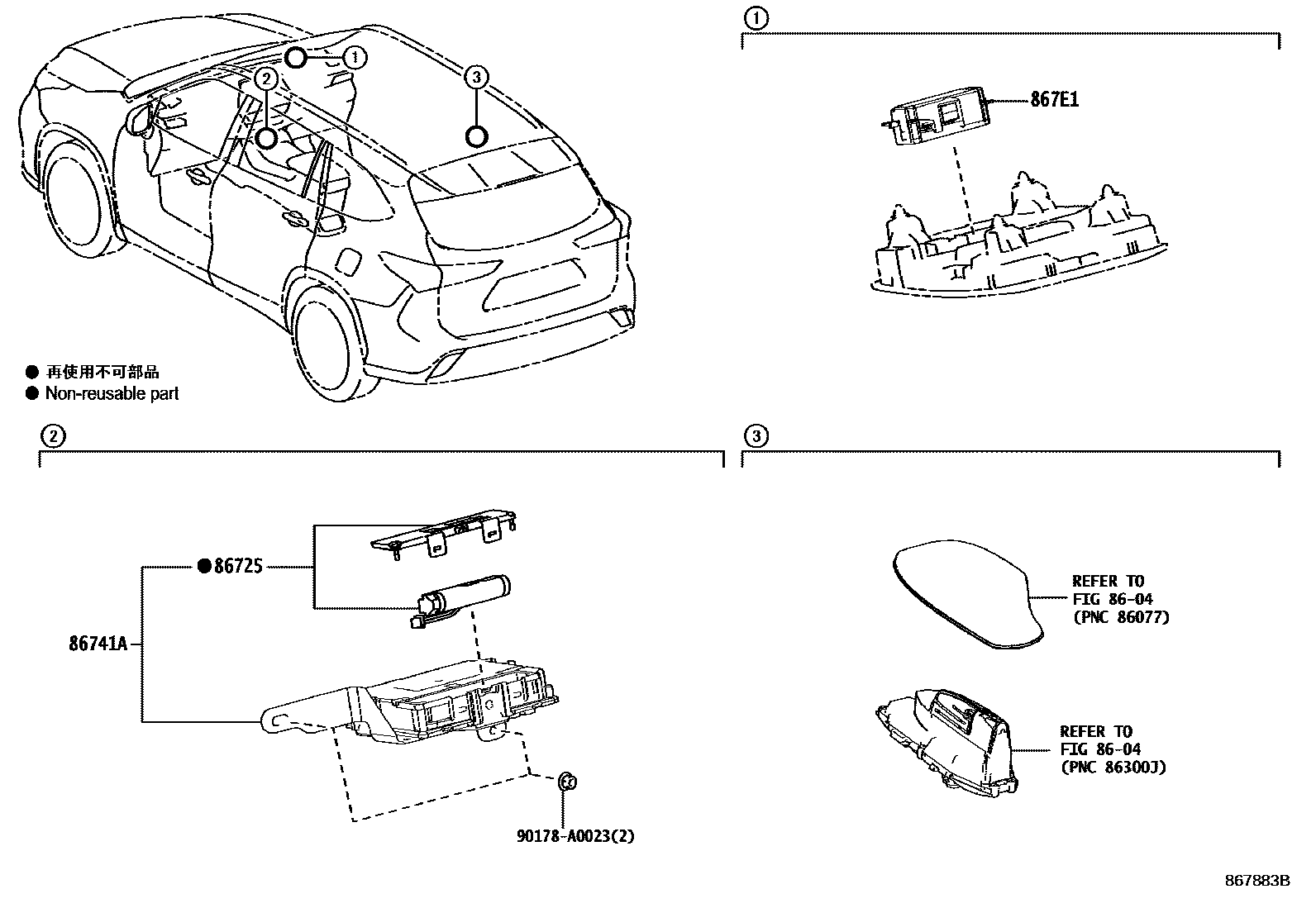

Parts diagram

8604

86725BATTERY, MOBILEPHONE

main86725-06020i202311

KUWAIT SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86725-06020i202210-202311

QATAR SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86725-06020i202311-202410

DATA COMMUNICATION MODULE-MID-EAST DCM

main86725-06020i202210-202311

U.A.E. SPEC&DATA COMMUNICATION MODULE-UAE DCM

main86725-06020i202308-202311

BAHRAIN SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86725-48010i202003-202210

UKRAINE SPEC

main86725-48010i202003-202210

GEORGIA SPEC

main86725-48010i202003-202210

AZERBAIJAN SPEC

main86725-78010i202011-202407

AZERBAIJAN SPEC

main86725-78010i202011-202407

GEORGIA SPEC

main86725-78010i202011-202407

UKRAINE SPEC

main86725-78010i202210-202407

NEW ZEALAND SPEC

main86725-78010i202210-202312

main86725-78011i202408

UKRAINE SPEC

main86725-78011i202408

GEORGIA SPEC

main86725-78011i202408

AZERBAIJAN SPEC

main86725-78011i202408

NEW ZEALAND SPEC

86741ATRANSCEIVER, TELEMATICS

main86740-0E090i202210-202311

UKRAINE SPEC

main86740-0E090i202210-202311

AZERBAIJAN SPEC

main86740-0E090i202210-202312

main86740-0E090i202210-202311

GEORGIA SPEC

main86740-0E150i202311

GEORGIA SPEC

main86740-0E150i202311

UKRAINE SPEC

main86740-0E150i202311

AZERBAIJAN SPEC

main86740-0E160i202011-202111

AZERBAIJAN SPEC

main86740-0E160i202011-202111

UKRAINE SPEC

main86740-0E160i202011-202111

GEORGIA SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86740-0E160i202011-202111

AZERBAIJAN SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86740-0E160i202011-202111

GEORGIA SPEC

main86740-0E161i202112-202210

UKRAINE SPEC

main86740-0E161i202112-202210

GEORGIA SPEC

main86740-0E161i202112-202210

AZERBAIJAN SPEC

main86740-0E161i202112-202210

GEORGIA SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86740-0E161i202112-202210

AZERBAIJAN SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86740-0E170i202011-202210

TURKEY SPEC

main86740-0E180i202210-202311

GEORGIA SPEC

main86740-0E180i202210-202311

AZERBAIJAN SPEC

main86740-0E180i202210-202311

UKRAINE SPEC

main86740-0E190i202210-202311

KAZAKHSTAN SPEC

main86740-48230i202003-202210

GEORGIA SPEC

main86740-48230i202003-202210

UKRAINE SPEC

main86740-48230i202003-202210

AZERBAIJAN SPEC

main86740-48320i202311

U.A.E. SPEC&DATA COMMUNICATION MODULE-UAE DCM

main86740-60400i202210-202311

U.A.E. SPEC&DATA COMMUNICATION MODULE-UAE DCM

main86741-0E160i202210-202312

main86741-0E160i202210-202311

NEW ZEALAND SPEC

main86741-0E180i202401

NEW ZEALAND SPEC

main86741-48140i202311

QATAR SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86741-48150i202311

KUWAIT SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86741-48150i202311-202410

DATA COMMUNICATION MODULE-MID-EAST DCM

main86741-60080i202210-202311

QATAR SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

main86741-60090i202308-202311

BAHRAIN SPEC&DATA COMMUNICATION MODULE-MID-EAST DCM

867E1BOX, COMMUNICATION TELEMATICS

main867E1-33011i202210-202311

DATA COMMUNICATION MODULE-UAE DCM

main867E1-33011i202003-202312

90178A0023

main90178-A0023

5 parts on this diagram · 2 diagrams in section
