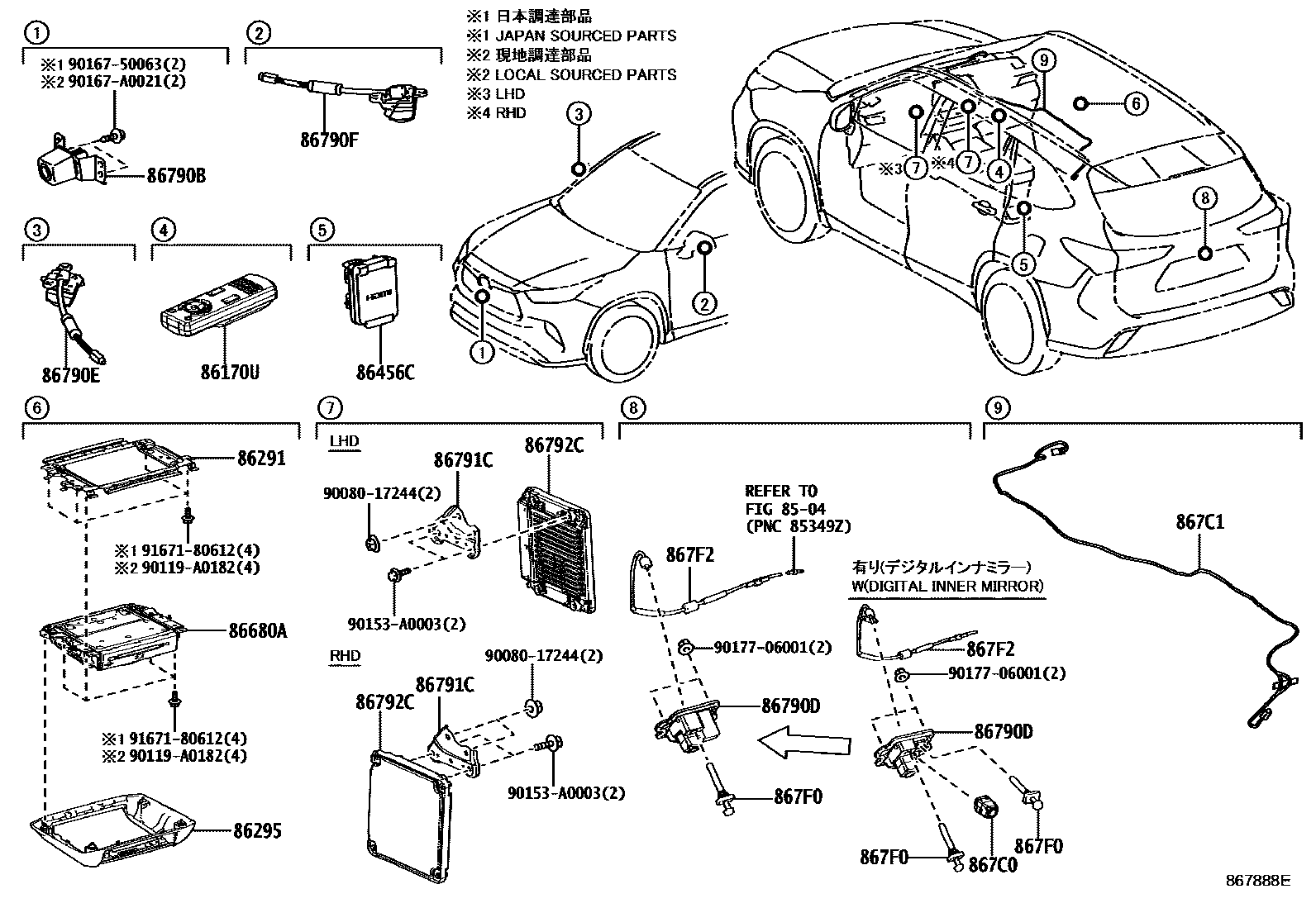

CAMERA & REAR MONITOR DISPLAY

0001 1 0003 1 0004 1

8504

86170USWITCH & VOLUME ASSY, REAR

main86170-48070iAXUH78,GSU7#..LIMD..ARL202012-202210

TELEVISION & DVD PLAYER-WITH

main86170-48090iAXUH7#..(LIMD,XLE)..GCC202002-202210

TELEVISION & DVD PLAYER-WITH

86291BRACKET, TELEVISION

main86291-0E020iAXUH7#,GSU7#..(LIMD,XLE)..(ARL,GCC)202002-202210

TELEVISION & DVD PLAYER-WITH

86295BASE, TELEVISION

main86295-0E080-B0iAXUH7#..LIMD..GCC202002-202210

TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1#,2#,4#

main86295-0E080-B0iAXUH7#..XLE..GCC202002-202210

TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1#,2#

main86295-0E080-B0iAXUH78,GSU7#..LIMD..ARL202012-202210

TELEVISION & DVD PLAYER-WITH,LT.GRAY,TRIM1#,2#,40

main86295-0E080-C0iAXUH78,GSU7#..LIMD..ARL202012-202210

TELEVISION & DVD PLAYER-WITH,BLACK,TRIM41

86456CCOVER, MULTI-MEDIA MODULE

main86456-0E010iAXUH7#,GSU7#..(LIMD,XLE)..(ARL,GCC)202002-202210

TELEVISION & DVD PLAYER-WITH

86680ADISPLAY ASSY, TELEVISION

main86680-48210iAXUH78,GSU7#..LIMD..ARL202012-202210

PANASONIC,TELEVISION & DVD PLAYER-WITH

main86680-48230iAXUH7#..(LIMD,XLE)..GCC202002-202210

PANASONIC,TELEVISION & DVD PLAYER-WITH

86790BCAMERA ASSY, TELEVISION, FR

main86790-0E081iAXUH78..LIMD..EUR202011-202110

PLATINUM PACKAGE

main86790-0E081iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202002-202110

main86790-0E420iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202110-202210

PLATINUM PACKAGE

main86790-0E560iAXUH78..LHD..LIMD..EUR202210-202312

PLATINUM PACKAGE

main86790-0E560iAXUH70..LIMD202311-202410

86790DCAMERA ASSY, TELEVISION, RR

main86790-0E150iAXUH7#,GSU7#..(LE,XLE)..(ARL,EUR,GCC)202002-202210

main86790-0E540iAXUH7#,TXUA7#..(LE,XLE)..(ARL,EUR,GCC)202210-202312

main86790-0E541iAXUH7#,TXUA7#..(LE,XLE)..(ARL,EUR,GCC)202311

main86790-0E590iAXUH78..LIMD..EUR202210-202312

PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main86790-0E590iAXUH78..LIMD..EUR202311

PLATINUM PACKAGE

main86790-0E600iAXUH78..LIMD..EUR202210-202312

PLATINUM PACKAGE

main86790-0E600iAXUH70..LIMD202311-202410

main867B0-0E120iAXUH78,GSU7#..LE..ARL202012-202110

LEATHER PACKAGE

main867B0-0E120iGSU75..LE..RUS;AXUH7#,GSU7#..LIMD202002-202110

main867B0-0E121iAXUH78,GSU7#..LE..ARL202110-202210

LEATHER PACKAGE

main867B0-0E170iAXUH78..LIMD..EUR202011-202110

PLATINUM PACKAGE

main867B0-0E171iAXUH78..LIMD..EUR202110-202210

PLATINUM PACKAGE

main867B0-0E280iTXUA75..LE..RUS;AXUH78..LIMD..EUR202210-202303

LEATHER PACKAGE

sub867B0-0E281

main867B0-0E281iTXUA75..LE..RUS;AXUH78..LIMD..EUR202304-202310

LEATHER PACKAGE

main867B0-0E282iAXUH78..RHD..EUR202311-202312

LEATHER PACKAGE

main867B0-0E300iAXUH78,TXUA7#..LE..ARL202401

LEATHER PACKAGE

main867B0-0E300iTXUA75..LE..RUS;AXUH78..LIMD..EUR202311

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E100iAXUH78..LIMD..EUR202011-202110

PLATINUM PACKAGE

main86790-0E100iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202002-202110

main86790-0E440iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202110-202210

PLATINUM PACKAGE

main86790-0E580iAXUH78..LHD..LIMD..EUR202210-202312

PLATINUM PACKAGE

main86790-0E580iAXUH70..LIMD202311-202410

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E090iAXUH78..LIMD..EUR202011-202110

PLATINUM PACKAGE

main86790-0E090iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202002-202110

main86790-0E430iAXUH78..LIMD..EUR202110-202210

PLATINUM PACKAGE

main86790-0E570iAXUH78,TXUA7#..LIMD..ARL202210-202312

PLATINUM PACKAGE

main86790-0E570iAXUH70..LIMD202311-202410

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

UKRAINE SPEC&PLATINUM PACKAGE

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

CANARY ISLAND SPEC&PLATINUM PACKAGE

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

TURKEY SPEC&PLATINUM PACKAGE

main86791-0E010iAXUH78..LHD..LIMD..EUR202011-202210

ISRAEL SPEC&PLATINUM PACKAGE

main86791-0E010iAXUH7#,GSU75..LIMD..(GCC,RUS)202002-202210

main86791-0E020iAXUH78..RHD..LIMD..EUR202011-202210

PLATINUM PACKAGE

main86791-0E020iAXUH78,GSU7#..LIMD..ARL202012-202210

main86791-0E150iAXUH78,TXUA75..LIMD..(GCC,RUS)202210-202311

PLATINUM PACKAGE

main86791-0E150iAXUH70..LIMD202311-202410

main86791-0E160iAXUH78..RHD..EUR202210-202312

PLATINUM PACKAGE

86792CCOMPUTER, PARKING ASSIST

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

TURKEY SPEC&PLATINUM PACKAGE

main86792-48490iAXUH7#,GSU75..LIMD..(GCC,RUS)202002-202110

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

CANARY ISLAND SPEC&PLATINUM PACKAGE

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

ISRAEL SPEC&PLATINUM PACKAGE

main86792-48490iAXUH78..LHD..LIMD..EUR202011-202110

UKRAINE SPEC&PLATINUM PACKAGE

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

UKRAINE SPEC&PLATINUM PACKAGE

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

ISRAEL SPEC&PLATINUM PACKAGE

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

CANARY ISLAND SPEC&PLATINUM PACKAGE

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86792-48491iAXUH78..LHD..LIMD..EUR202110-202210

TURKEY SPEC&PLATINUM PACKAGE

main86792-48500iAXUH78..RHD..LIMD..EUR202011-202110

PLATINUM PACKAGE

main86792-48500iAXUH78,GSU7#..LIMD..ARL202012-202110

main86792-48501iAXUH78..RHD..LIMD..EUR202110-202210

PLATINUM PACKAGE

main86792-48700iAXUH78..LHD..LIMD..EUR202011-202110

PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

main86792-48701iAXUH78..LHD..LIMD..EUR202110-202210

PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

main86792-48890iAXUH78..LHD..LIMD..EUR202210-202305

PLATINUM PACKAGE

sub86792-48891

main86792-48890iAXUH78..LHD..LIMD..EUR202210-202305

AUDIO-12.3INCH T2 JBL11SPEAKER

sub86792-48891

main86792-48891iAXUH7#..LIMD..GCC202306-202311

PLATINUM PACKAGE

main86792-48891iTXUA75..LIMD..RUS202306-202311

AUDIO-12.3INCH T2 JBL11SPEAKER

main86792-48A00iAXUH78..RHD..EUR202210-202305

PLATINUM PACKAGE

sub86792-48A01

main86792-48A01iAXUH78..RHD..EUR202306-202312

PLATINUM PACKAGE

main86792-48A10iAXUH7#..LIMD..GCC202210-202305

sub86792-48A11

main86792-48A11iAXUH7#..LIMD..GCC202306-202311

main86792-48A50iAXUH78..LIMD..GCC202311-202410

AUDIO-12.3INCH JBL11SPEAKER

main86792-48A50iTXUA75..LIMD..RUS202311

PLATINUM PACKAGE

main86792-48A60iAXUH78,TXUA7#..LIMD..ARL202401

PLATINUM PACKAGE

main86792-48A70iAXUH78..LIMD..GCC202311-202410

867C0CAMERA ASSY, INNER MIRROR

main867C0-48010iAXUH78..LHD..LIMD..EUR202210-202312

PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867C0-48010iAXUH78..LHD..LIMD..EUR202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867C0-48010iAXUH78..LIMD..EUR202011-202210

PLATINUM PACKAGE

867C1WIRE, MIRROR CAMERA

main867C1-0E010iAXUH78..XLE..GCC202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867C1-0E010iAXUH78..LIMD..EUR202011-202210

PLATINUM PACKAGE&MOON ROOF-WITH

main867C1-0E030iAXUH78..RHD..EUR202210-202312

MOON ROOF-WITH(PANORAMA ROOF)&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867C1-0E030iAXUH78..LIMD..EUR202011-202210

PLATINUM PACKAGE&MOON ROOF-WITH(PANORAMA ROOF)

main867C1-0E050iAXUH78..LIMD..EUR202011-202210

PLATINUM PACKAGE

main867C1-0E050iAXUH78..RHD..EUR202210-202312

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

867F0NOZZLE ASSY, CAMERA CLEANER

main867F0-0E010iAXUH78..XLE..GCC202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867F0-0E010iAXUH78..XLE..GCC202210-202312

PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867F0-0E010iAXUH70..LIMD202002-202410

main867F0-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202011-202210

PLATINUM PACKAGE

867F2HOSE, CAMERA CLEANER

main867F2-0E020iAXUH7#,GSU7#202002-202410

main867F2-0E030iAXUH78..LIMD..EUR202011-202210

PLATINUM PACKAGE

main867F2-0E030iAXUH78..XLE..GCC202210-202312

PLATINUM PACKAGE&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main867F2-0E030iAXUH78..LHD..LIMD..EUR202210-202311

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

9008017244

main90080-17244

90119A0182

main90119-A0182

90153A0003

main90153-A0003

9016750063

main90167-50063

90167A0021

main90167-A0021

9017706001

main90177-06001

9167180612

main91671-80612

23 parts on this diagram · 3 diagrams in section
