NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0003 1 0004 1 0006 1

5501

8601

86101HCORD SUB-ASSY, ANTENNA

main86101-0EK40iAXUH7#,GSU7#..LIMD..(ARL,GCC,RUS)202002-202210

86110BMULTI-DISPLAY ASSY

main86110-0E090iAXUH78..LHD..LIMD..EUR202011-202210

DENSO,AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

86110DKNOB, MULTI-DISPLAY SWITCH

main86125-48010×2iAXUH78..LHD..LIMD..EUR202011-202210

AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0E400iGSU75..LE..RUS202003-202104

PANASONIC

main86140-0E401iGSU75..LE..RUS202105-202109

PANASONIC

main86140-0E520iAXUH78,TXUA7#..LIMD..ARL202210-202312

DENSO TEN

main86140-0E590iGSU75..LIMD..RUS202003-202104

PANASONIC

main86140-0E591iGSU75..LIMD..RUS202105-202109

PANASONIC

main86140-0E600iAXUH78,GSU7#..LIMD..ARL202012-202210

PIONEER

main86140-0E620iAXUH78..RHD..EUR202011-202104

PANASONIC

main86140-0E621iAXUH78..RHD..EUR202105-202210

PANASONIC

main86140-0EA40iGSU75..LE..RUS202109-202210

PANASONIC

main86140-0EA50iGSU75..LIMD..RUS202109-202210

PANASONIC

main86140-0ED10iAXUH78,TXUA7#..LIMD..ARL202401

DENSO TEN

main86140-0E390supersedes 86140-0E380iAXUH78,GSU7#..LE..ARL202012-202210

PIONEER,LEATHER PACKAGE

main86140-0E500supersedes 86140-0ED00iAXUH78,TXUA7#..LE..ARL202210-202312

DENSO TEN,LEATHER PACKAGE

main86140-0E530iAXUH78..(LE,XLE)..GCC202210-202311

PANASONIC,SAUDI ARABIA SPEC

main86140-0E540supersedes 86140-0EA30iAXUH7#..LIMD..GCC202210-202311

PANASONIC,SAUDI ARABIA SPEC

main86140-0E630iAXUH78..LHD..LIMD..EUR202011-202104

PANASONIC,AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86140-0E631iAXUH78..LHD..LIMD..EUR202105-202109

PANASONIC,AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86140-0E640supersedes 86140-0ED51iAXUH78..RHD..LIMD..EUR202011-202104

PANASONIC,AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86140-0E641supersedes 86140-0ED51iAXUH78..RHD..LIMD..EUR202105-202210

PANASONIC,AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86140-0E700supersedes 86140-0EE30iAXUH7#..(LE,XLE)..GCC202002-202210

DENSO TEN,U.A.E. SPEC

main86140-0E710supersedes 86140-0EA30iAXUH7#..LIMD..GCC202002-202210

PIONEER,U.A.E. SPEC

main86140-0E810iAXUH78..XLE..EUR202210-202311

PANASONIC,AUDIO-8INCH T1 6SPEAKER

main86140-0E860iAXUH78..LHD..LIMD..EUR202210-202311

PANASONIC,AUDIO-12.3INCH T2 JBL11SPEAKER

main86140-0E870supersedes 86140-0ED51iAXUH78..RHD..EUR202210-202312

PANASONIC,AUDIO-12.3INCH T2 JBL11SPEAKER

main86140-0E880supersedes 86140-0EE40iAXUH7#..LIMD..GCC202210-202311

PANASONIC,SAUDI ARABIA SPEC&AUDIO-12.3INCH T2 JBL11SPEAKER

main86140-0EA10supersedes 86140-0ED42iAXUH78..LHD..EUR202210-202311

PANASONIC,AZERBAIJAN SPEC

main86140-0EA70iAXUH78..LHD..LIMD..EUR202109-202210

PANASONIC,AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86140-0EA80supersedes 86140-0EA30iAXUH7#..LIMD..GCC202210-202311

PANASONIC,AUDIO-12.3INCH T2 JBL11SPEAKER

main86140-0EB90supersedes 86140-0EC90iTXUA75..LE..RUS202210-202311

PANASONIC,KAZAKHSTAN SPEC

main86140-0EC00supersedes 86140-0EE00iTXUA75..LIMD..RUS202210-202311

PANASONIC,KAZAKHSTAN SPEC

main86140-0EC10supersedes 86140-0ED42iAXUH78..LHD..EUR202210-202311

PANASONIC,UKRAINE SPEC

main86140-0EC20iAXUH78..LHD..LIMD..EUR202210-202311

PANASONIC,UKRAINE SPEC

main86140-0EC80supersedes 86140-0ED00iAXUH78,TXUA7#..LE..ARL202401

DENSO TEN,LEATHER PACKAGE

main86140-0ED20iAXUH78..(LE,XLE)..GCC202311

PANASONIC,SAUDI ARABIA SPEC

main86140-0ED30supersedes 86140-0EE40iAXUH78..LIMD..GCC202311

DENSO TEN,SAUDI ARABIA SPEC

main86140-0ED70supersedes 86140-0ED51iAXUH78..RHD..EUR202401-202406

PANASONIC,AUDIO-12.3INCH JBL11SPEAKER

main86140-0ED71supersedes 86140-0ED51iAXUH78..RHD..EUR202407

PANASONIC,AUDIO-12.3INCH JBL11SPEAKER

main86140-0ED90supersedes 86140-0EE40iAXUH78..LIMD..GCC202311

PANASONIC,SAUDI ARABIA SPEC&AUDIO-12.3INCH JBL11SPEAKER

main86140-0EE10supersedes 86140-0ED42iAXUH78..LHD..EUR202311

PIONEER,AZERBAIJAN SPEC

main86140-0EE20iAXUH78..LHD..LIMD..EUR202311-202406

PIONEER,AUDIO-12.3INCH JBL11SPEAKER

main86140-0EE21iAXUH78..LHD..LIMD..EUR202407-202412

PANASONIC,AUDIO-12.3INCH JBL11SPEAKER

main86140-0EE22iAXUH78..LHD..LIMD..EUR202501

PANASONIC,AUDIO-12.3INCH JBL11SPEAKER

main86140-0EE50supersedes 86140-0EE40iAXUH78..LIMD..GCC202311

PANASONIC,AUDIO-12.3INCH JBL11SPEAKER

main86140-0EE60supersedes 86140-0EC90iTXUA75..LE..RUS202311

PANASONIC,KAZAKHSTAN SPEC

main86140-0EE70supersedes 86140-0EE00iTXUA75..LIMD..RUS202311

PANASONIC,KAZAKHSTAN SPEC

main86140-0EE80supersedes 86140-0ED42iAXUH78..LHD..EUR202311

PIONEER,UKRAINE SPEC

main86140-0EE90supersedes 86140-0EE00iAXUH78..LHD..LIMD..EUR202311

PIONEER,UKRAINE SPEC&AUDIO-12.3INCH JBL11SPEAKER

main86140-0EF00iAXUH78..XLE..EUR202311-202406

PANASONIC,AUDIO-8INCH 6SPEAKER

main86140-0EF01iAXUH78..XLE..EUR202407-202412

PANASONIC,AUDIO-8INCH 6SPEAKER

main86140-0EF02iAXUH78..XLE..EUR202501

PANASONIC,AUDIO-8INCH 6SPEAKER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22129×2iAXUH7#,GSU7#..LIMD..(ARL,GCC)202002-202210

main90011-23045×2iAXUH7#,GSU7#..(LE,XLE)..(ARL,GCC)202002-202210

main90011-23049supersedes 90011-23048iAXUH78,TXUA7#..LE..ARL202210-202312

LEATHER PACKAGE

main90011-25328×2iAXUH78,GSU75..EUR,RUS202003-202210

main90011-25346iAXUH78..XLE..EUR202210-202311

UKRAINE SPEC&AUDIO-8INCH T1 6SPEAKER

main90011-25349supersedes 90011-25346iAXUH78..RHD..EUR202210-202312

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0E130iAXUH78,TXUA7#;AXUH70..LE,XLE202311

86211MBRACKET, RADIO RECEIVER, NO.3

main86211-0E120iAXUH7#,GSU75..LIMD..(GCC,RUS)202002-202210

main86211-0E150iAXUH78,GSU7#..LIMD..ARL202012-202210

LEATHER PACKAGE

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0E130iAXUH7#,TXUA75..LHD202210-202311

86212FBRACKET, RADIO RECEIVER, NO.4

main86212-0E120iAXUH7#,GSU75..LIMD..(GCC,RUS)202002-202210

main86212-0E150iAXUH78,GSU7#..LIMD..ARL202012-202210

LEATHER PACKAGE

86271DISC, DISC PLAYER

main86807-11033iAXUH7#..LIMD202002-202006

main86807-11034iAXUH7#..LIMD..GCC202007-202106

main86807-11035iAXUH7#..LIMD..GCC202107-202207

main86807-11036iAXUH7#..LIMD..GCC202208-202210

sub86807-11037

main86807-11043iAXUH78,GSU7#..LIMD..ARL202012-202109

LEATHER PACKAGE

main86807-11044iAXUH78,GSU7#..LIMD..ARL202110-202210

LEATHER PACKAGE

86841COMPUTER, NAVIGATION

main86840-0E090iAXUH78,GSU7#..LIMD..ARL202012-202109

LEATHER PACKAGE

main86840-0E091iAXUH78,GSU7#..LIMD..ARL202110-202210

LEATHER PACKAGE

main86840-0E110iAXUH7#..LIMD202002-202008

main86840-0E111iAXUH7#..LIMD..GCC202009-202108

main86840-0E112iAXUH7#..LIMD..GCC202109-202206

main86840-0E113iAXUH7#..LIMD..GCC202207-202210

main86840-0E120iGSU75..LIMD..RUS202003-202202

main86840-0E121iGSU75..LIMD..RUS202202-202210

TURKEY SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

main86840-0E140iAXUH78..LHD..LIMD..EUR202011-202202

TURKEY SPEC&AUDIO-8INCH(AVN)DECKLESS JBL11SP

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iAXUH78,GSU7#..LIMD..ARL202012-202210

LEATHER PACKAGE

main86848-33060iAXUH7#..LIMD..GCC202002-202210

main86848-78030iAXUH78,TXUA7#..LE..ARL202410

LEATHER PACKAGE

main86848-78050iAXUH78..LIMD..GCC202410

9008011699

main90080-11699

9008015073

main90080-15073

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9167380616

main91673-80616

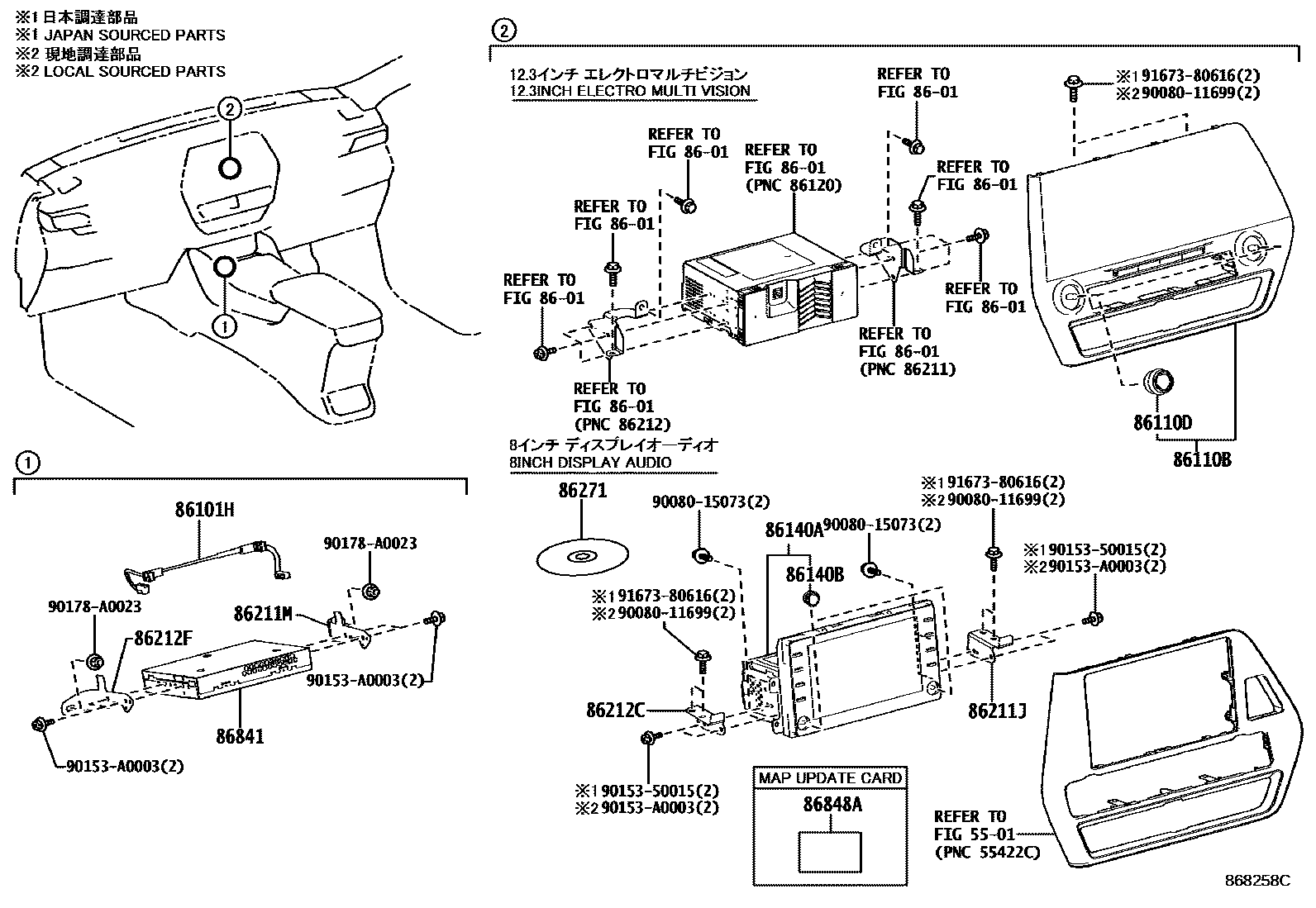

20 parts on this diagram · 4 diagrams in section
