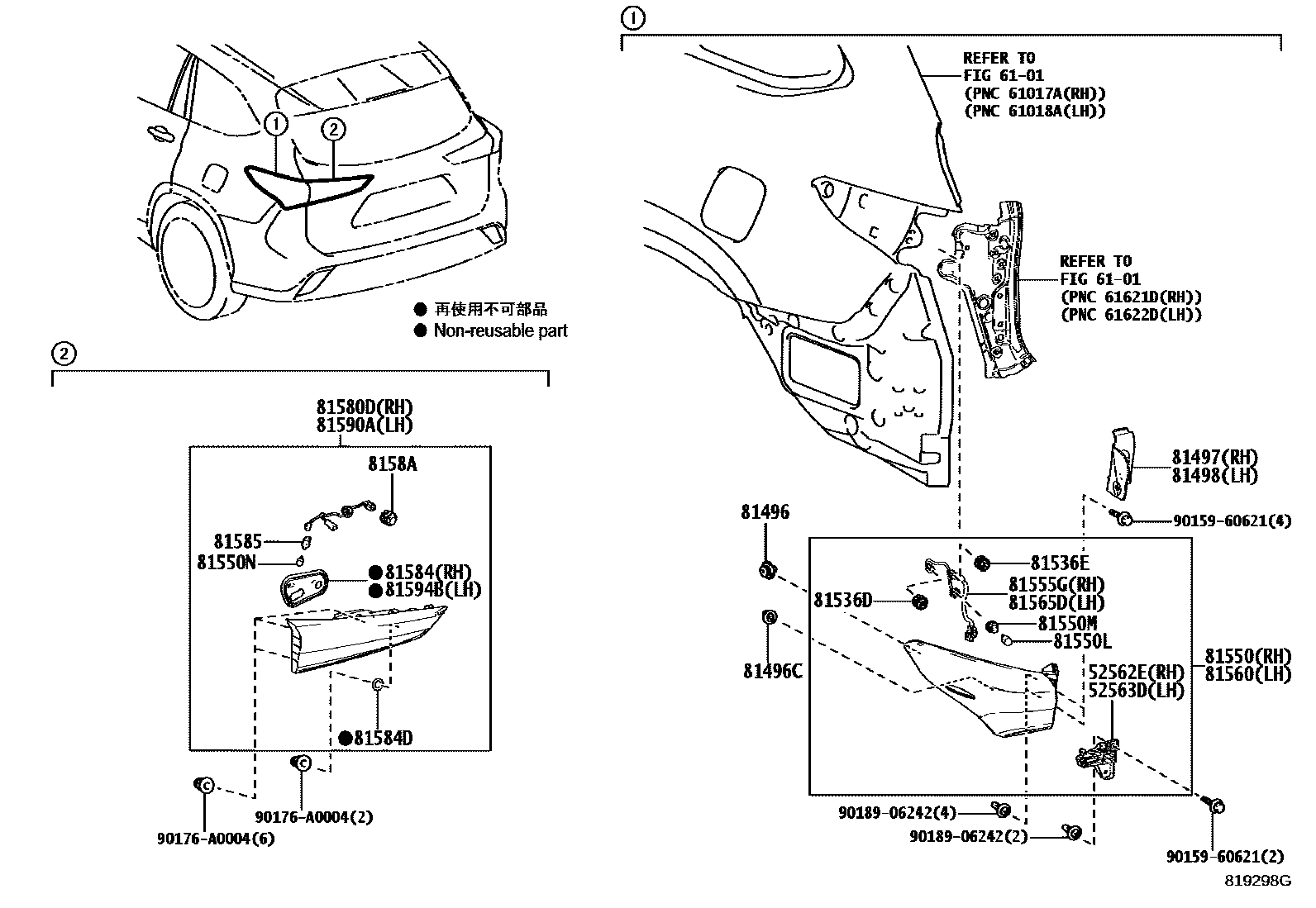

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0E030iAXUH7#,GSU7#202002-202410

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0E030iAXUH7#,GSU7#202002-202410

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-50010iAXUH7#,GSU7#202002-202410

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020iAXUH7#,GSU7#202002-202410

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E030iAXUH7#,GSU7#202002-202410

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E030iAXUH7#,GSU7#202002-202410

81536DLED, TAILLAMP

main8158A-0D610iAXUH7#,GSU7#202002-202312

81536ELED, STOP LAMP

main8158A-0D610iAXUH7#,GSU7#202002-202312

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E240iAXUH7#,GSU7#202002-202312

main81550-0E370iAXUH70..LIMD202311-202410

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iAXUH7#,GSU7#202002-202410

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60028iAXUH7#,GSU7#202002-202312

81550NBULB, BACK UP LAMP

main90981-11059iAXUH7#,GSU7#202002-202410

12V 16W

81555GCORD, REAR COMBINATION LAMP, RH

main81555-0E230iAXUH7#,GSU7#202002-202312

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E240iAXUH7#,GSU7#202002-202312

main81560-0E370iAXUH70..LIMD202311-202410

81565DCORD, REAR COMBINATION LAMP, LH

main81555-0E230iAXUH7#,GSU7#202002-202312

81580DLAMP ASSY, REAR, RH

main81580-0E180iAXUH7#,GSU7#202002-202312

main81580-0E290iAXUH70..LIMD202311-202410

81584PACKING, REAR LAMP RH

main81582-0E180iAXUH7#,GSU7#202002-202312

81584DGASKET, REAR LAMP

main81584-0E180iAXUH7#,GSU7#202002-202312

81585SOCKET & WIRE, REAR LAMP

main81585-0E120iAXUH7#,GSU7#202002-202312

8158ALED, REAR LAMP

main8158A-0D610iAXUH7#,GSU7#202002-202312

81590ALAMP ASSY, REAR, LH

main81590-0E180iAXUH7#,GSU7#202002-202312

main81590-0E290iAXUH70..LIMD202311-202410

81594BPACKING, REAR LAMP LH

main81592-0E180iAXUH7#,GSU7#202002-202312

9015960621

main90159-60621

90176A0004

main90176-A0004

9018906242

main90189-06242

26 parts on this diagram · 2 diagrams in section
