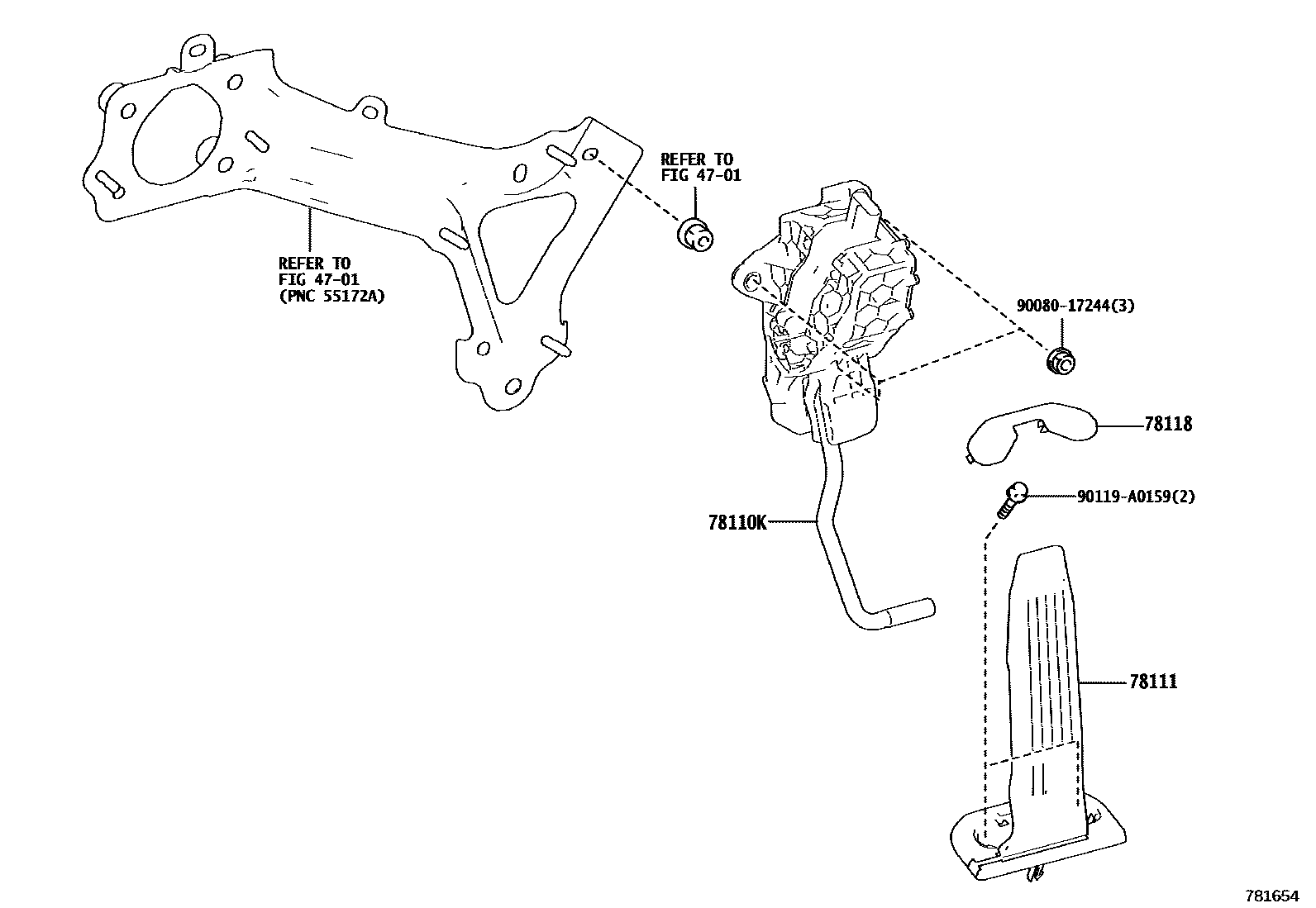

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06060iAXUH78..LHD..EUR202002-202012

sub78110-06061

main78110-06061iAXUH7#,TXUA75..LHD202012-202410

main78110-0E040iAXUH78..RHD202011-202012

main78110-0E041iAXUH78,TXUA7#..RHD202012-202312

78111PEDAL, ACCELERATOR

main78101-06010iAXUH7#,GSU7#202002-202201

sub78101-06011

main78101-06011iAXUH7#,TXUA75..LHD202202-202410

78118PAD, ACCELERATOR PEDAL

main78117-06010iAXUH7#,GSU7#202002-202410

9008017244

main90080-17244

90119A0159

main90119-A0159

6 parts on this diagram · 2 diagrams in section
