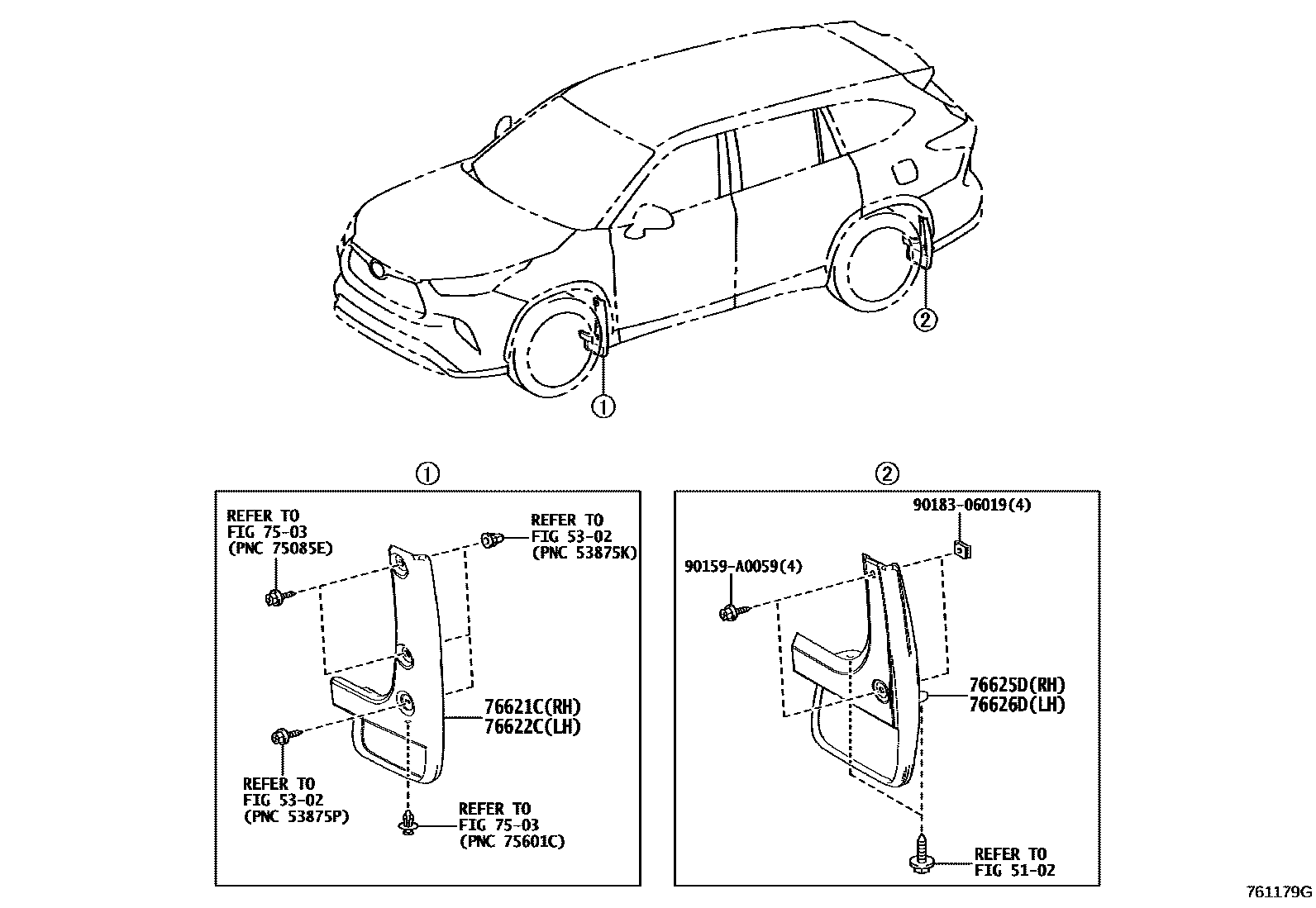

MUDGUARD & SPOILER

5102

5302

7503

76621CMUDGUAD, FRONT FENDER, RH

main76621-0E020iAXUH7#,GSU7#..ARL,GCC,RUS202002-202410

main76621-0E020iAXUH7#,TXUA7#..ARL,GCC,RUS202210-202312

MUD GUARD-WITH(FRONT & REAR)

76622CMUDGUARD, FRONT FENDER, LH

main76622-0E020iAXUH7#,GSU7#..ARL,GCC,RUS202002-202410

main76622-0E020iAXUH7#,TXUA7#..ARL,GCC,RUS202210-202312

MUD GUARD-WITH(FRONT & REAR)

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-0E020iAXUH7#,GSU7#..ARL,GCC,RUS202002-202410

main76625-0E020iAXUH7#,TXUA7#..ARL,GCC,RUS202210-202312

MUD GUARD-WITH(FRONT & REAR)

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-0E020iAXUH7#,GSU7#..ARL,GCC,RUS202002-202410

main76626-0E020iAXUH7#,TXUA7#..ARL,GCC,RUS202210-202312

MUD GUARD-WITH(FRONT & REAR)

90159A0059

main90159-A0059

9018306019

main90183-06019

9 parts on this diagram · 1 diagram in section
