EPC Data

FRONT SEAT & SEAT TRACK

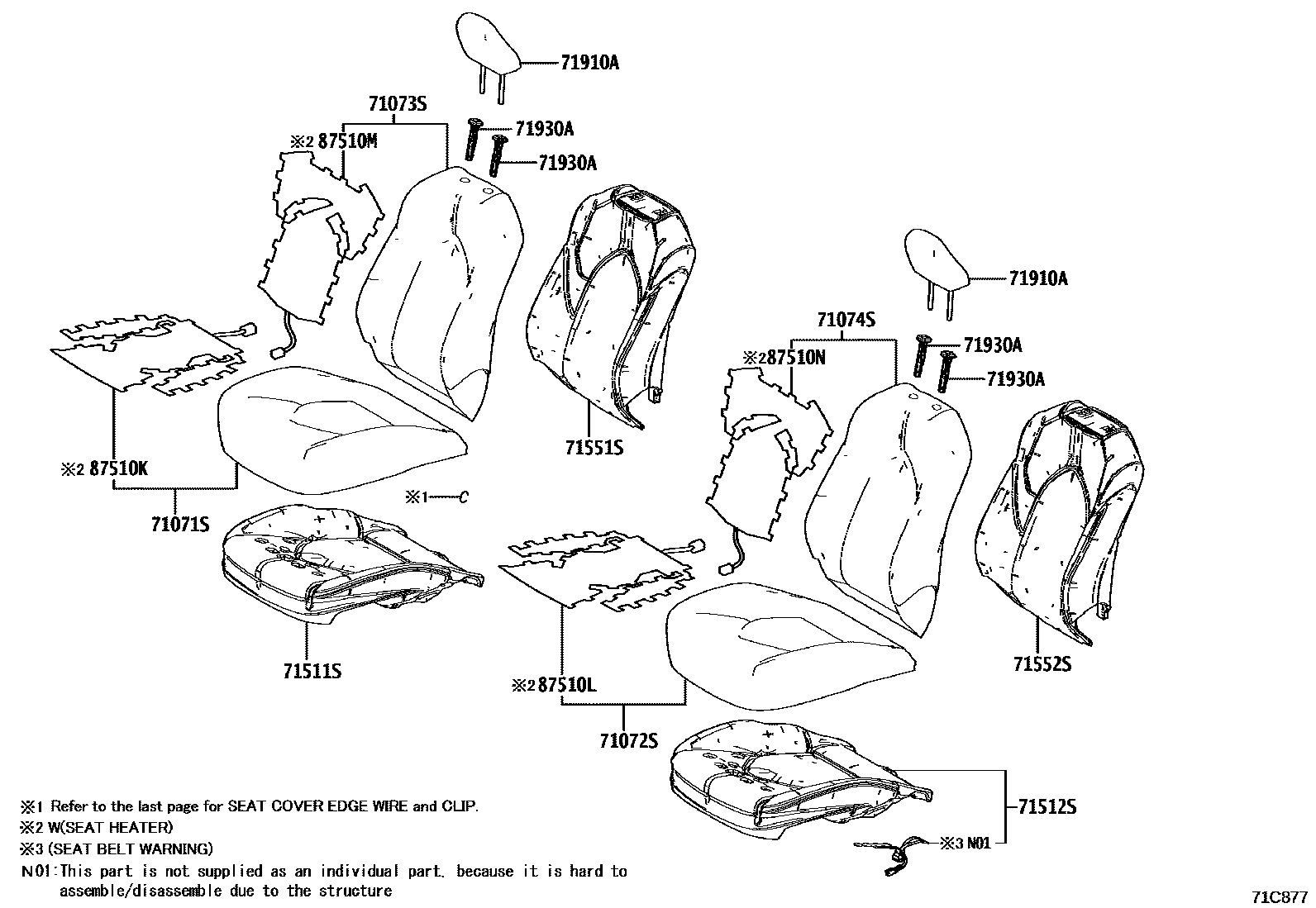

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0E360-B3i202002-202311
GRAY,TRIM1#
main71071-0E360-C3i202002-202311
BLACK,TRIM2#
main71071-0E380-B3i202012-202312
GRAY,TRIM1#
main71071-0E380-C3i202012-202312
BLACK,TRIM2#
main71071-0E390-B5i202003-202110
GRAY,TRIM1#
main71071-0E390-C5i202003-202110
BLACK,TRIM2#
main71071-0E390-E5i202003-202110
NEUTRAL BEIGE,TRIM4#
main71071-0E560-B6i202002-202110
GRAY,TRIM1#
main71071-0E560-C6i202002-202110
BLACK,TRIM2#
main71071-0E560-L1i202003-202110
OCHER,TRIM41
main71071-0E560-L2i202002-202110
NEUTRAL BEIGE,TRIM4#
main71071-0E560-L2i202003-202110
NEUTRAL BEIGE,TRIM40
main71071-0E570-B5i202012-202110
LEATHER PACKAGE,GRAY,TRIM1#
main71071-0E570-C5i202011-202110
BLACK,TRIM2#
main71071-0E570-C5i202012-202110
LEATHER PACKAGE,BLACK,TRIM2#
main71071-0E570-E5i202012-202110
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71071-0E571-B5i202110-202210
GRAY,TRIM1#
main71071-0E571-B5i202110-202210
LEATHER PACKAGE,GRAY,TRIM1#
main71071-0E571-C5i202110-202210
LEATHER PACKAGE,BLACK,TRIM2#
main71071-0E571-C5i202110-202210
BLACK,TRIM2#
main71071-0E571-E5i202110-202210
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71071-0E571-E5i202110-202210
NEUTRAL BEIGE,TRIM4#
main71071-0E572-B5i202210-202312
LEATHER PACKAGE,GRAY,TRIM1#
main71071-0E572-B5i202210-202311
GRAY,TRIM1#
main71071-0E572-C5i202210-202311
BLACK,TRIM2#
main71071-0E572-C5i202210-202312
LEATHER PACKAGE,BLACK,TRIM2#
main71071-0E572-E5i202210-202312
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71071-0E572-E5i202210-202311
NEUTRAL BEIGE,TRIM4#
main71071-0E580-B6i202011-202110
GRAY,TRIM1#
main71071-0E580-B7i202110-202210
GRAY,TRIM1#
main71071-0E580-C6i202011-202110
BLACK,TRIM2#
main71071-0E580-C7i202110-202210
BLACK,TRIM2#
main71071-0E580-L1i202011-202110
OCHER,TRIM41
main71071-0E580-L2i202011-202110
NEUTRAL BEIGE,TRIM40
main71071-0E580-L3i202110-202210
OCHER,TRIM41
main71071-0E580-L4i202110-202210
NEUTRAL BEIGE,TRIM4#
main71071-0E580-L4i202110-202210
NEUTRAL BEIGE,TRIM40
main71071-0E581-B7i202210-202410
GRAY,TRIM1#
main71071-0E581-C7i202210-202410
BLACK,TRIM2#
main71071-0E581-L3i202411
OCHER,TRIM4#
main71071-0E581-L3i202210-202411
OCHER,TRIM41
main71071-0E581-L4i202210-202411
NEUTRAL BEIGE,TRIM40
main71071-0E581-L4i202210-202410
NEUTRAL BEIGE,TRIM4#
main71071-0E891-E0i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71071-0EB30-B1i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0E380-B3i202012-202312
GRAY,TRIM1#
main71072-0E380-C3i202012-202312
BLACK,TRIM2#
main71072-0E400-B5i202012-202110
LEATHER PACKAGE,GRAY,TRIM1#
main71072-0E400-C5i202012-202110
LEATHER PACKAGE,BLACK,TRIM2#
main71072-0E400-C5i202011-202110
BLACK,TRIM2#
main71072-0E400-E5i202012-202110
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71072-0E410-B3i202002-202311
GRAY,TRIM1#
main71072-0E410-C3i202002-202311
BLACK,TRIM2#
main71072-0E430-B5i202003-202110
GRAY,TRIM1#
main71072-0E430-C5i202003-202110
BLACK,TRIM2#
main71072-0E430-E5i202003-202110
NEUTRAL BEIGE,TRIM4#
main71072-0E431-B5i202110-202210
LEATHER PACKAGE,GRAY,TRIM1#
main71072-0E431-B5i202110-202210
GRAY,TRIM1#
main71072-0E431-C5i202110-202210
LEATHER PACKAGE,BLACK,TRIM2#
main71072-0E431-C5i202110-202210
BLACK,TRIM2#
main71072-0E431-E5i202110-202210
NEUTRAL BEIGE,TRIM4#
main71072-0E431-E5i202110-202210
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71072-0E432-B5i202210-202312
LEATHER PACKAGE,GRAY,TRIM1#
main71072-0E432-B5i202210-202311
GRAY,TRIM1#
main71072-0E432-C5i202210-202311
BLACK,TRIM2#
main71072-0E432-C5i202210-202312
LEATHER PACKAGE,BLACK,TRIM2#
main71072-0E432-E5i202210-202311
NEUTRAL BEIGE,TRIM4#
main71072-0E432-E5i202210-202312
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71072-0E570-B6i202002-202110
GRAY,TRIM1#
main71072-0E570-B7i202110-202210
GRAY,TRIM1#
main71072-0E570-C6i202002-202110
BLACK,TRIM2#
main71072-0E570-C7i202110-202210
BLACK,TRIM2#
main71072-0E570-L1i202003-202110
OCHER,TRIM41
main71072-0E570-L2i202003-202110
NEUTRAL BEIGE,TRIM40
main71072-0E570-L2i202002-202110
NEUTRAL BEIGE,TRIM4#
main71072-0E570-L3i202110-202210
OCHER,TRIM41
main71072-0E570-L4i202110-202210
NEUTRAL BEIGE,TRIM40
main71072-0E570-L4i202110-202210
NEUTRAL BEIGE,TRIM4#
main71072-0E571-B7i202210-202410
GRAY,TRIM1#
main71072-0E571-C7i202210-202410
BLACK,TRIM2#
main71072-0E571-L3i202210-202411
OCHER,TRIM41
main71072-0E571-L3i202411
OCHER,TRIM4#
main71072-0E571-L4i202210-202411
NEUTRAL BEIGE,TRIM40
main71072-0E571-L4i202210-202410
NEUTRAL BEIGE,TRIM4#
main71072-0E580-B6i202011-202110
GRAY,TRIM1#
main71072-0E580-C6i202011-202110
BLACK,TRIM2#
main71072-0E580-L1i202011-202110
OCHER,TRIM41
main71072-0E580-L2i202011-202110
NEUTRAL BEIGE,TRIM40
main71072-0EA01-E0i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71072-0EB40-B1i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0E470-B2i202002-202312
GRAY,TRIM1#
main71073-0E470-C2i202002-202312
BLACK,TRIM2#
main71073-0E471-B2i202311
GRAY,TRIM1#
main71073-0E471-C2i202311
BLACK,TRIM2#
main71073-0E490-B4i202012-202110
LEATHER PACKAGE,GRAY,TRIM1#
main71073-0E490-B4i202003-202110
GRAY,TRIM1#
main71073-0E490-B5i202110-202311
GRAY,TRIM1#
main71073-0E490-B5i202110-202312
LEATHER PACKAGE,GRAY,TRIM1#
main71073-0E490-C4i202003-202110
BLACK,TRIM2#
main71073-0E490-C4i202012-202110
LEATHER PACKAGE,BLACK,TRIM2#
main71073-0E490-C5i202110-202311
BLACK,TRIM2#
main71073-0E490-C5i202110-202312
LEATHER PACKAGE,BLACK,TRIM2#
main71073-0E490-E4i202012-202110
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71073-0E490-E4i202003-202110
NEUTRAL BEIGE,TRIM4#
main71073-0E490-E5i202110-202311
NEUTRAL BEIGE,TRIM4#
main71073-0E490-E5i202110-202312
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71073-0E491-B5i202311
GRAY,TRIM1#
main71073-0E491-B5i202401
LEATHER PACKAGE,GRAY,TRIM1#
main71073-0E491-C5i202311
BLACK,TRIM2#
main71073-0E491-C5i202401
LEATHER PACKAGE,BLACK,TRIM2#
main71073-0E491-E5i202401
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71073-0E491-E5i202311
NEUTRAL BEIGE,TRIM4#
main71073-0E510-B6i202002-202110
GRAY,TRIM1#
main71073-0E510-B8i202110-202312
GRAY,TRIM1#
main71073-0E510-C6i202002-202110
BLACK,TRIM2#
main71073-0E510-C8i202110-202312
BLACK,TRIM2#
main71073-0E510-E7i202002-202110
NEUTRAL BEIGE,TRIM4#
main71073-0E510-E9i202110-202312
NEUTRAL BEIGE,TRIM4#
main71073-0E511-B8i202311-202411
GRAY,TRIM1#
sub71073-0E511
main71073-0E511-B9i202411
GRAY,TRIM1#
sub71073-0E511
main71073-0E511-C8i202311-202411
BLACK,TRIM2#
sub71073-0E511
main71073-0E511-C9i202411
BLACK,TRIM2#
sub71073-0E511
main71073-0E511-E9i202311-202411
NEUTRAL BEIGE,TRIM4#
sub71073-0E511
main71073-0E511-L2i202411
NEUTRAL BEIGE,TRIM4#
sub71073-0E511
main71073-0E520-B4i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B4i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B4i202003-202110
GRAY,TRIM1#
main71073-0E520-B6i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-B6i202110-202312
GRAY,TRIM1#
main71073-0E520-B6i202110-202312
PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E520-B6i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#
main71073-0E520-C4i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C4i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C4i202003-202110
BLACK,TRIM2#
main71073-0E520-C6i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C6i202110-202312
BLACK,TRIM2#
main71073-0E520-C6i202110-202312
PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-C6i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E520-E7i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-E7i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-E7i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-E7i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-E7i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-E7i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-E7i202011-202110
PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-E7i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-E7i202003-202110
OCHER,TRIM41
main71073-0E520-E8i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202003-202110
NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-E8i202011-202110
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-L1i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-L1i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-L1i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-L1i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71073-0E520-L1i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-L1i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-L1i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-L1i202110-202312
OCHER,TRIM41
main71073-0E520-L1i202110-202312
PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E520-L2i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202312
NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202312
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E520-L2i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E521-B6i202311
GRAY,TRIM1#
main71073-0E521-B6i202311
PLATINUM PACKAGE,GRAY,TRIM1#
main71073-0E521-C6i202311
PLATINUM PACKAGE,BLACK,TRIM2#
main71073-0E521-C6i202311
BLACK,TRIM2#
main71073-0E521-L1i202311-202411
PLATINUM PACKAGE,OCHER,TRIM41
main71073-0E521-L1i202311-202411
OCHER,TRIM41
main71073-0E521-L1i202411
OCHER,TRIM4#
main71073-0E521-L1i202411
PLATINUM PACKAGE,OCHER,TRIM4#
main71073-0E521-L2i202311-202411
NEUTRAL BEIGE,TRIM40
main71073-0E521-L2i202311-202411
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71073-0E830-C0i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71073-0EA40-C1i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0E480-B2i202002-202312
GRAY,TRIM1#
main71074-0E480-C2i202002-202312
BLACK,TRIM2#
main71074-0E481-B2i202311
GRAY,TRIM1#
main71074-0E481-C2i202311
BLACK,TRIM2#
main71074-0E500-B4i202012-202110
LEATHER PACKAGE,GRAY,TRIM1#
main71074-0E500-B4i202003-202110
GRAY,TRIM1#
main71074-0E500-B5i202110-202311
GRAY,TRIM1#
main71074-0E500-B5i202110-202312
LEATHER PACKAGE,GRAY,TRIM1#
main71074-0E500-C4i202003-202110
BLACK,TRIM2#
main71074-0E500-C4i202012-202110
LEATHER PACKAGE,BLACK,TRIM2#
main71074-0E500-C5i202110-202311
BLACK,TRIM2#
main71074-0E500-C5i202110-202312
LEATHER PACKAGE,BLACK,TRIM2#
main71074-0E500-E4i202003-202110
NEUTRAL BEIGE,TRIM4#
main71074-0E500-E4i202012-202110
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71074-0E500-E5i202110-202311
NEUTRAL BEIGE,TRIM4#
main71074-0E500-E5i202110-202312
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71074-0E501-B5i202311
GRAY,TRIM1#
main71074-0E501-B5i202401
LEATHER PACKAGE,GRAY,TRIM1#
main71074-0E501-C5i202311
BLACK,TRIM2#
main71074-0E501-C5i202401
LEATHER PACKAGE,BLACK,TRIM2#
main71074-0E501-E5i202401
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71074-0E501-E5i202311
NEUTRAL BEIGE,TRIM4#
main71074-0E520-B6i202002-202110
GRAY,TRIM1#
main71074-0E520-B8i202110-202312
GRAY,TRIM1#
main71074-0E520-C6i202002-202110
BLACK,TRIM2#
main71074-0E520-C8i202110-202312
BLACK,TRIM2#
main71074-0E520-E7i202002-202110
NEUTRAL BEIGE,TRIM4#
main71074-0E520-E9i202110-202312
NEUTRAL BEIGE,TRIM4#
main71074-0E521-B8i202311-202411
GRAY,TRIM1#
sub71074-0E521
main71074-0E521-B9i202411
GRAY,TRIM1#
sub71074-0E521
main71074-0E521-C8i202311-202411
BLACK,TRIM2#
sub71074-0E521
main71074-0E521-C9i202411
BLACK,TRIM2#
sub71074-0E521
main71074-0E521-E9i202311-202411
NEUTRAL BEIGE,TRIM4#
sub71074-0E521
main71074-0E521-L2i202411
NEUTRAL BEIGE,TRIM4#
sub71074-0E521
main71074-0E530-B4i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B4i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B4i202003-202110
GRAY,TRIM1#
main71074-0E530-B6i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B6i202110-202312
GRAY,TRIM1#
main71074-0E530-B6i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B6i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B6i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B6i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B6i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-B6i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,GRAY,TRIM1#
main71074-0E530-B6i202110-202312
PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E530-C4i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C4i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C4i202003-202110
BLACK,TRIM2#
main71074-0E530-C6i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C6i202110-202312
BLACK,TRIM2#
main71074-0E530-C6i202110-202312
PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-C6i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E530-E7i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-E7i202011-202110
PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-E7i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-E7i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-E7i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-E7i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-E7i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-E7i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-E7i202003-202110
OCHER,TRIM41
main71074-0E530-E8i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-E8i202003-202110
NEUTRAL BEIGE,TRIM40
main71074-0E530-L1i202110-202312
PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-L1i202110-202312
OCHER,TRIM41
main71074-0E530-L1i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-L1i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-L1i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-L1i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,OCHER,TRIM41
main71074-0E530-L1i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-L1i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-L1i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E530-L2i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202312
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
TURKEY SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E530-L2i202110-202312
NEUTRAL BEIGE,TRIM40
main71074-0E531-B6i202311
GRAY,TRIM1#
main71074-0E531-B6i202311
PLATINUM PACKAGE,GRAY,TRIM1#
main71074-0E531-C6i202311
BLACK,TRIM2#
main71074-0E531-C6i202311
PLATINUM PACKAGE,BLACK,TRIM2#
main71074-0E531-L1i202411
PLATINUM PACKAGE,OCHER,TRIM4#
main71074-0E531-L1i202311-202411
OCHER,TRIM41
main71074-0E531-L1i202311-202411
PLATINUM PACKAGE,OCHER,TRIM41
main71074-0E531-L1i202411
OCHER,TRIM4#
main71074-0E531-L2i202311-202411
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71074-0E531-L2i202311-202411
NEUTRAL BEIGE,TRIM40
main71074-0E840-C0i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71074-0EA40-C1i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-0E110i202002-202311
main71501-0E130i202011-202110
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71501-0E130i202002-202110
main71501-0E130i202011-202110
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71501-0E130i202011-202110
AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71501-0E130i202011-202110
CANARY ISLAND SPEC&PLATINUM PACKAGE
main71501-0E130i202011-202110
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71501-0E130i202011-202110
TURKEY SPEC&PLATINUM PACKAGE
main71501-0E130i202011-202110
ISRAEL SPEC&PLATINUM PACKAGE
main71501-0E130i202011-202110
UKRAINE SPEC&PLATINUM PACKAGE
main71501-0E250i202110-202210
main71501-0E250i202210-202311
HYBRID SPECIAL EDITION
main71501-0E260i202110-202210
TURKEY SPEC&PLATINUM PACKAGE
main71501-0E260i202110-202210
ISRAEL SPEC&PLATINUM PACKAGE
main71501-0E260i202110-202210
UKRAINE SPEC&PLATINUM PACKAGE
main71501-0E260i202110-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71501-0E260i202110-202210
AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71501-0E260i202110-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE
main71501-0E260i202110-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71501-0E260i202110-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71501-0E260i202210-202311
PLATINUM PACKAGE
main71501-0E260i202311-202410
main71511-0E180i202012-202312
main71511-0E210i202012-202312
LEATHER PACKAGE
main71511-0E210i202011-202210
main71511-0E220i202011-202312
PLATINUM PACKAGE
main71511-0E220i202012-202210
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0E080i202011-202312
main71502-0E090i202012-202110
main71502-0E090i202011-202110
PLATINUM PACKAGE
main71502-0E100i202110-202312
LEATHER PACKAGE
main71502-0E110i202110-202312
PLATINUM PACKAGE
main71512-0E230i202002-202311
main71512-0E240i202011-202210
ISRAEL SPEC&PLATINUM PACKAGE
main71512-0E240i202011-202210
UKRAINE SPEC&PLATINUM PACKAGE
main71512-0E240i202011-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71512-0E240i202011-202210
AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71512-0E240i202011-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE
main71512-0E240i202011-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71512-0E240i202011-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71512-0E240i202011-202210
TURKEY SPEC&PLATINUM PACKAGE
main71512-0E240i202210-202311
PLATINUM PACKAGE
main71512-0E240i202002-202410
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0E140i202002-202312
main71551-0E150i202011-202312
PLATINUM PACKAGE
main71551-0E150i202002-202410
main71551-0E150i202011-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71551-0E150i202011-202210
AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71551-0E150i202011-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE
main71551-0E150i202011-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71551-0E150i202011-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71551-0E150i202011-202210
TURKEY SPEC&PLATINUM PACKAGE
main71551-0E150i202011-202210
ISRAEL SPEC&PLATINUM PACKAGE
main71551-0E150i202011-202210
UKRAINE SPEC&PLATINUM PACKAGE
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0E140i202002-202312
main71552-0E150i202011-202210
AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71552-0E150i202011-202210
CANARY ISLAND SPEC&PLATINUM PACKAGE
main71552-0E150i202011-202210
GEORGIA SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71552-0E150i202011-202210
AZERBAIJAN SPEC&PLATINUM PACKAGE&AUDIO-8INCH(AVN)DECKLESS JBL11SP
main71552-0E150i202011-202210
TURKEY SPEC&PLATINUM PACKAGE
main71552-0E150i202011-202210
ISRAEL SPEC&PLATINUM PACKAGE
main71552-0E150i202011-202210
UKRAINE SPEC&PLATINUM PACKAGE
main71552-0E150i202011-202312
PLATINUM PACKAGE
main71552-0E150i202011-202210
PLATINUM PACKAGE&AUDIO-12.3INCH(EMV) DECKLESS JBL11SP
main71552-0E150i202002-202410
71910AHEADREST ASSY, FRONT SEAT
main71910-0E370-B0i202002-202010
GRAY,TRIM1#
main71910-0E370-C0i202002-202010
BLACK,TRIM2#
main71910-0E380-A0i202002-202010
NEUTRAL BEIGE/IVORY,TRIM4#
sub71910-0E381
main71910-0E380-A0i202003-202010
NEUTRAL BEIGE/IVORY,TRIM40
sub71910-0E381
main71910-0E380-B3i202002-202010
BLACK/GRAY,TRIM2#
sub71910-0E381
main71910-0E380-B4i202002-202010
GRAY/GRAY,TRIM1#
sub71910-0E381
main71910-0E380-E5i202003-202010
OCHER/BROWN,TRIM41
sub71910-0E381
main71910-0E440-B0i202003-202010
GRAY,TRIM1#
main71910-0E440-C0i202003-202010
BLACK,TRIM2#
main71910-0E440-E0i202003-202010
NEUTRAL BEIGE,TRIM4#
main71910-0E530-B0i202012-202312
GRAY,TRIM1#
main71910-0E530-C0i202012-202312
BLACK,TRIM2#
main71910-0E540-B0i202012-202312
LEATHER PACKAGE,GRAY,TRIM1#
main71910-0E540-B0i202110-202311
GRAY,TRIM1#
main71910-0E540-C0i202011-202311
BLACK,TRIM2#
main71910-0E540-C0i202012-202312
LEATHER PACKAGE,BLACK,TRIM2#
main71910-0E540-E0i202012-202312
LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71910-0E540-E0i202110-202311
NEUTRAL BEIGE,TRIM4#
main71910-0E550-A0i202011-202411
NEUTRAL BEIGE/IVORY,TRIM40
main71910-0E550-B0i202011-202312
BLACK/GRAY,TRIM2#
main71910-0E550-B1i202011-202312
GRAY/GRAY,TRIM1#
main71910-0E550-E0i202011-202411
OCHER/BROWN,TRIM41
main71910-0E550-E0i202411
OCHER/BROWN,TRIM4#
main71910-0E660-B0i202010-202311
GRAY,TRIM1#
main71910-0E660-C0i202010-202311
BLACK,TRIM2#
main71910-0E670-B0i202010-202311
GRAY,TRIM1#
main71910-0E670-C0i202010-202311
BLACK,TRIM2#
main71910-0E670-E0i202010-202311
NEUTRAL BEIGE,TRIM4#
main71910-0E680-A0i202010-202411
NEUTRAL BEIGE/IVORY,TRIM40
main71910-0E680-A0i202010-202410
NEUTRAL BEIGE/IVORY,TRIM4#
main71910-0E680-B0i202010-202410
BLACK/GRAY,TRIM2#
main71910-0E680-B1i202010-202410
GRAY/GRAY,TRIM1#
main71910-0E680-B2i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
main71910-0E680-E0i202010-202411
OCHER/BROWN,TRIM41
main71910-0E680-E0i202411
OCHER/BROWN,TRIM4#
main71910-0E680-E1i202210-202311
HYBRID SPECIAL EDITION,OCHRE,TRIM1#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-0R070-B1i202002-202410
W(LOCK),GRAY,TRIM1#
main71930-0R070-B1i202210-202311
W(LOCK),GRAY,TRIM10
main71930-0R070-C0i202002-202410
W(LOCK),BLACK,TRIM2#
main71930-0R070-C0i202210-202311
W(LOCK),BLACK,TRIM13,2#
main71930-0R070-C0i202003-202411
W(LOCK),BLACK,TRIM2#,41
main71930-0R070-C0i202311
W(LOCK),BLACK,TRIM2#,41,42
main71930-0R070-C0i202311
W(LOCK),BLACK,TRIM2#,42
main71930-0R070-C0i202411
W(LOCK),BLACK,TRIM2#,4#
main71930-0R070-E1i202002-202410
W(LOCK),NEUTRAL BEIGE,TRIM4#
main71930-0R070-E1i202012-202312
W(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71930-0R070-E1i202003-202411
W(LOCK),NEUTRAL BEIGE,TRIM40
main71931-0R050-B1i202002-202410
W/O(LOCK),GRAY,TRIM1#
main71931-0R050-B1i202210-202311
W/O(LOCK),GRAY,TRIM10
main71931-0R050-C0i202003-202411
W/O(LOCK),BLACK,TRIM2#,41
main71931-0R050-C0i202002-202410
W/O(LOCK),BLACK,TRIM2#
main71931-0R050-C0i202210-202311
W/O(LOCK),BLACK,TRIM13,2#
main71931-0R050-C0i202311
W/O(LOCK),BLACK,TRIM2#,42
main71931-0R050-C0i202311
W/O(LOCK),BLACK,TRIM2#,41,42
main71931-0R050-C0i202411
W/O(LOCK),BLACK,TRIM2#,4#
main71931-0R050-E1i202012-202312
W/O(LOCK),LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#
main71931-0R050-E1i202002-202410
W/O(LOCK),NEUTRAL BEIGE,TRIM4#
main71931-0R050-E1i202003-202411
W/O(LOCK),NEUTRAL BEIGE,TRIM40
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-0E200i202012-202312
LEATHER PACKAGE
main87510-0E200i202210-202311
HYBRID SPECIAL EDITION
main87510-0E200i202003-202210
main87510-0E260i202002-202410
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-0E210i202012-202312
LEATHER PACKAGE
main87510-0E210i202003-202210
main87510-0E210i202210-202311
HYBRID SPECIAL EDITION
main87510-0E270i202002-202410
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-0E180i202210-202311
HYBRID SPECIAL EDITION
main87530-0E180i202003-202210
main87530-0E180i202012-202312
LEATHER PACKAGE
main87530-0E210i202002-202410
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-0E180i202003-202210
main87530-0E180i202012-202312
LEATHER PACKAGE
main87530-0E180i202210-202311
HYBRID SPECIAL EDITION
main87530-0E210i202002-202410

14 parts on this diagram · 17 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
