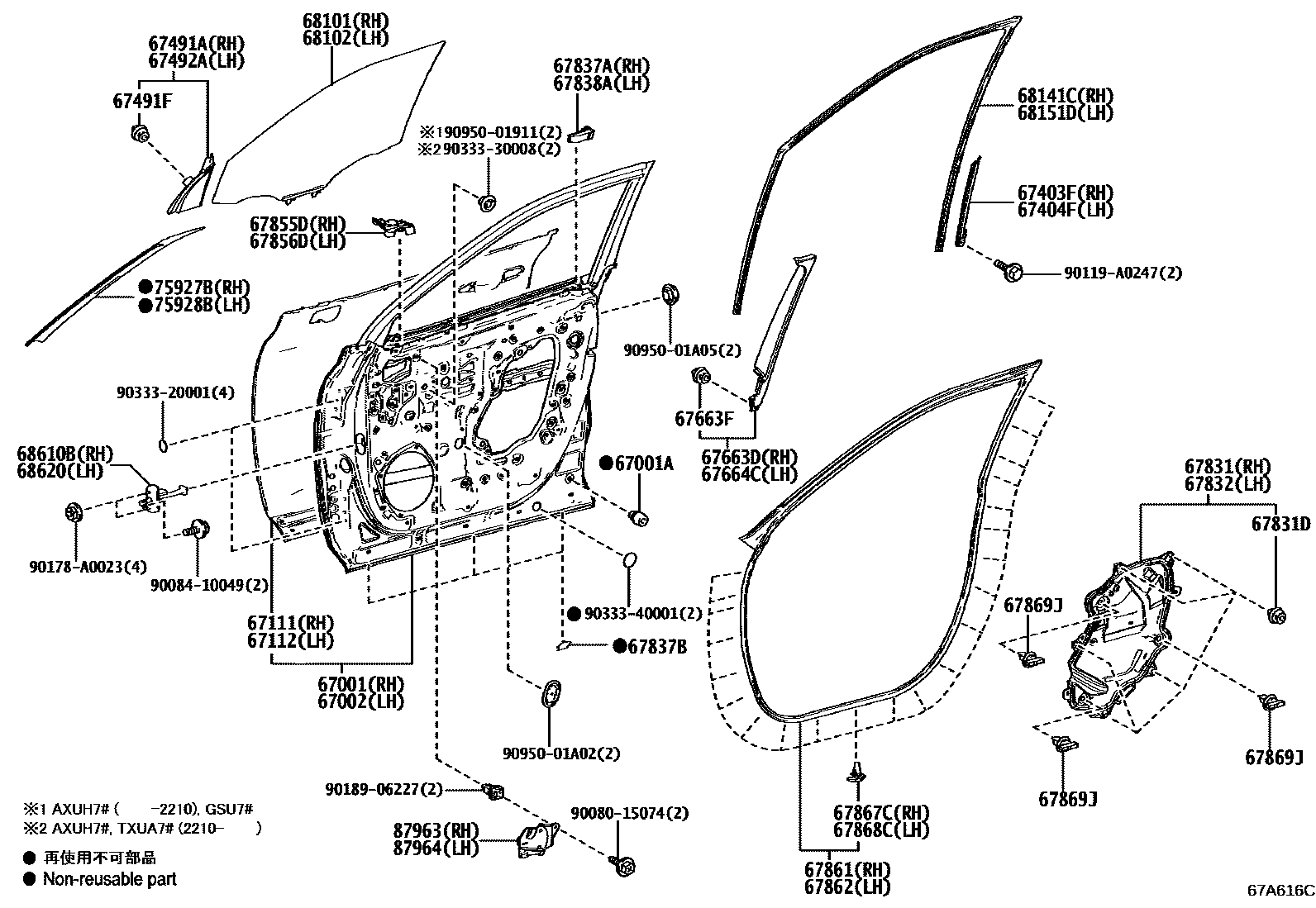

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E171iAXUH78,TXUA7#;AXUH70..LE,XLE¥46,700202002-202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iAXUH7#,GSU7#¥100202002-202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E171iAXUH7#,GSU7#202002-202410

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E081iAXUH7#,TXUA75..LHD202002-202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E081iAXUH7#,GSU7#202002-202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E090iAXUH7#,GSU7#202002-202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E090iAXUH7#,GSU7#202002-202410

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-0E060iAXUH78,TXUA7#;AXUH70..LE,XLE¥790202002-202410

67491FCLIP(FOR DOOR TRIM)

main90467-10167iAXUH70..LIMD¥90202002-202410

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-0E060iAXUH70..LIMD202002-202410

67663DGARNISH, DOOR FRAME, RH

main67663-0E070iAXUH7#,GSU7#¥1,940202002-202410

67663FCLIP(FOR DOOR FRAME GARNISH)

main90467-A0005iAXUH7#,GSU7#202002-202410

67664CGARNISH, DOOR FRAME, LH

main67664-0E070iAXUH7#,GSU7#202002-202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E090iAXUH7#,GSU7#202002-202410

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0005iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E090iAXUH7#,GSU7#202002-202410

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E110iAXUH7#,GSU7#¥640202002-202410

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0E060iAXUH7#,GSU7#202002-202410

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E110iAXUH7#,GSU7#202002-202410

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E050iAXUH7#,GSU7#¥450202002-202410

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E050iAXUH7#,GSU7#202002-202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E090iAXUH7#,GSU7#¥5,500202002-202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E090iAXUH7#,GSU7#202002-202410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAXUH7#,TXUA75..LHD¥100202002-202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAXUH7#,GSU7#¥100202002-202410

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010iAXUH7#,GSU7#202002-202410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E110iAXUH7#,GSU75..LIMD..(GCC,RUS);AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR)¥39,100202002-202410

main68101-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202002-202311

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E110iAXUH70..LIMD202002-202410

main68102-0E120iAXUH7#,TXUA75..LHD..(LE,XLE)202002-202311

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E080iAXUH7#,GSU7#¥2,550202002-202410

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E080iAXUH7#,GSU7#202002-202410

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E100iAXUH7#,GSU7#202002-202103

main68610-0E180iAXUH7#,GSU7#202103-202410

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E100iAXUH7#,GSU7#202002-202103

main68620-0E160iAXUH7#,GSU7#202103-202410

75927BTAPE, BLACK OUT, NO.4 RH

main75927-0E010iAXUH78,TXUA7#..LIMD¥12,300202002-202410

main75927-0E020iAXUH7#,TXUA75..LHD..(LE,XLE)202002-202312

75928BTAPE, BLACK OUT, NO.4 LH

main75928-0E010iAXUH70..LIMD202002-202410

main75928-0E020iAXUH7#,TXUA7#..LE,XLE202002-202312

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E030iAXUH78,TXUA7#..RHD202002-202410

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E030iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

9008015074

main90080-15074¥60

9008410049

main90084-10049

90119A0247

main90119-A0247

90178A0023

main90178-A0023

9018906227

main90189-06227¥70

9033320001

main90333-20001¥70

9033330008

main90333-30008¥70

9033340001

main90333-40001¥100

9095001911

main90950-01911¥50

9095001A02

main90950-01A02¥100

9095001A05

main90950-01A05¥100

47 parts on this diagram · 2 diagrams in section
