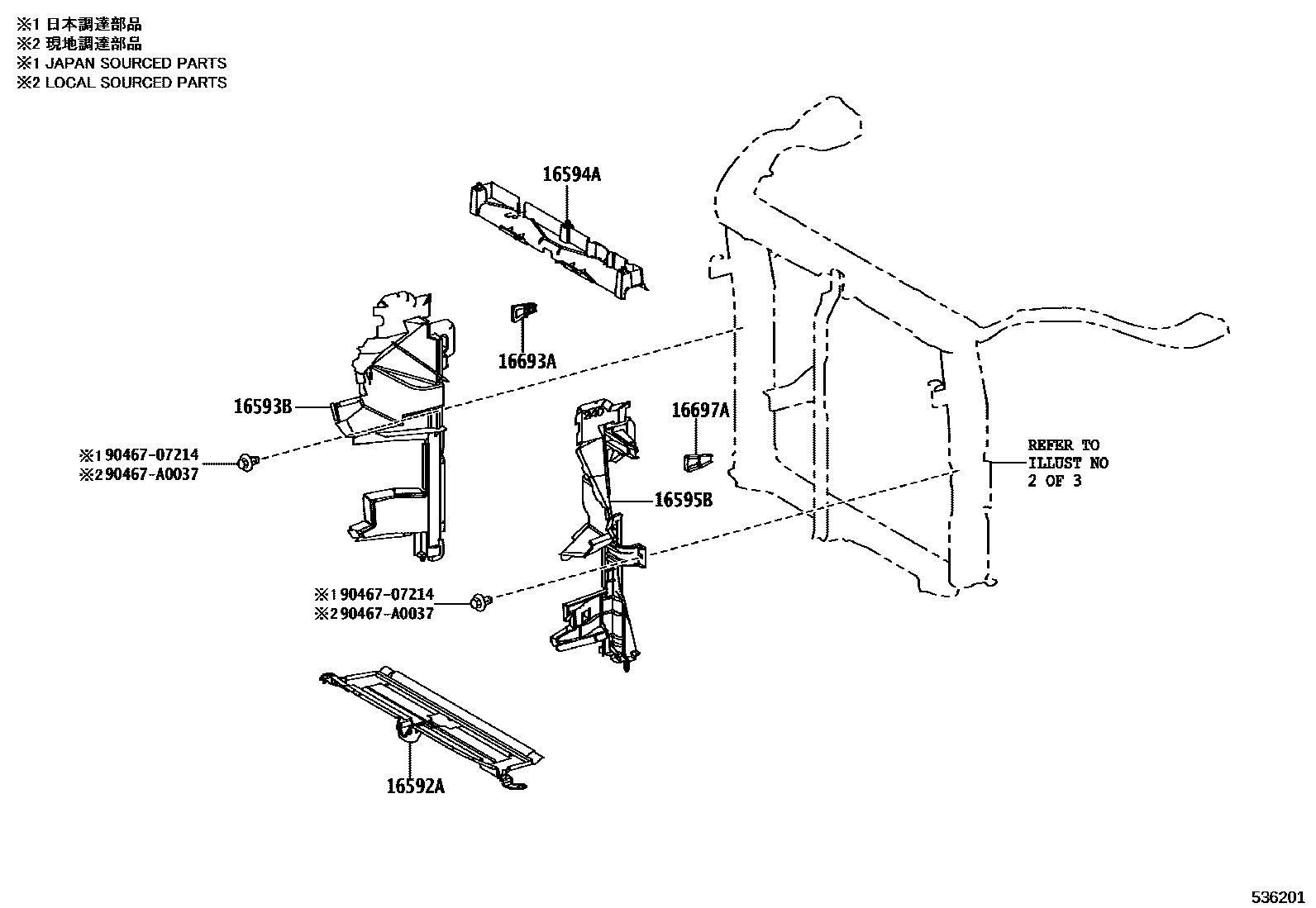

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1AIRGUIDE & RADIATOR SUPPORT C0004 1AIRGUIDE & RADIATOR SUPPORT C0005 1AIRGUIDE & RADIATOR SUPPORT C0006 1RADIATOR SUPPORT & FENDER APR0007 1RADIATOR SUPPPORT & FENDER AP0008 1DASH PANEL 0009 1DASH PANEL 0010 1DASH PANEL 0011 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-0P010iA25AFXS,T24AFTS..AXUH7#,TXUA75..LHD202002-202410

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0P030i2GRFKS..GSU7#202003-202210

main16593-F0210iA25AFXS..AXUH78..EUR202011-202110

main16593-F0230iA25AFXS..AXUH7#..GCC202002-202410

main16593-F0530iA25AFXS..AXUH78..EUR202110-202312

main16593-F0620iT24AFTS..TXUA75..RUS202210-202312

16594AGUIDE, RADIATOR AIR, NO.2

main16594-0P010iA25AFXS,T24AFTS..AXUH78,TXUA7#..RHD202002-202410

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-0P030i2GRFKS..GSU7#202003-202210

main16595-F0210iA25AFXS..AXUH78..EUR202011-202110

main16595-F0240iA25AFXS..AXUH70..LE,XLE;A25AFXS..AXUH78..ARL,GCC202002-202410

main16595-F0550iA25AFXS..AXUH78..EUR202110-202312

main16595-F0640iT24AFTS..TXUA7#..ARL202210-202312

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-0P010iA25AFXS..AXUH78..ARL202002-202410

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16693-0P010iA25AFXS..AXUH70..LE,XLE;A25AFXS..AXUH78..ARL,GCC202002-202410

9046707214

main90467-07214¥70

90467A0037

main90467-A0037

8 parts on this diagram · 11 diagrams in section
