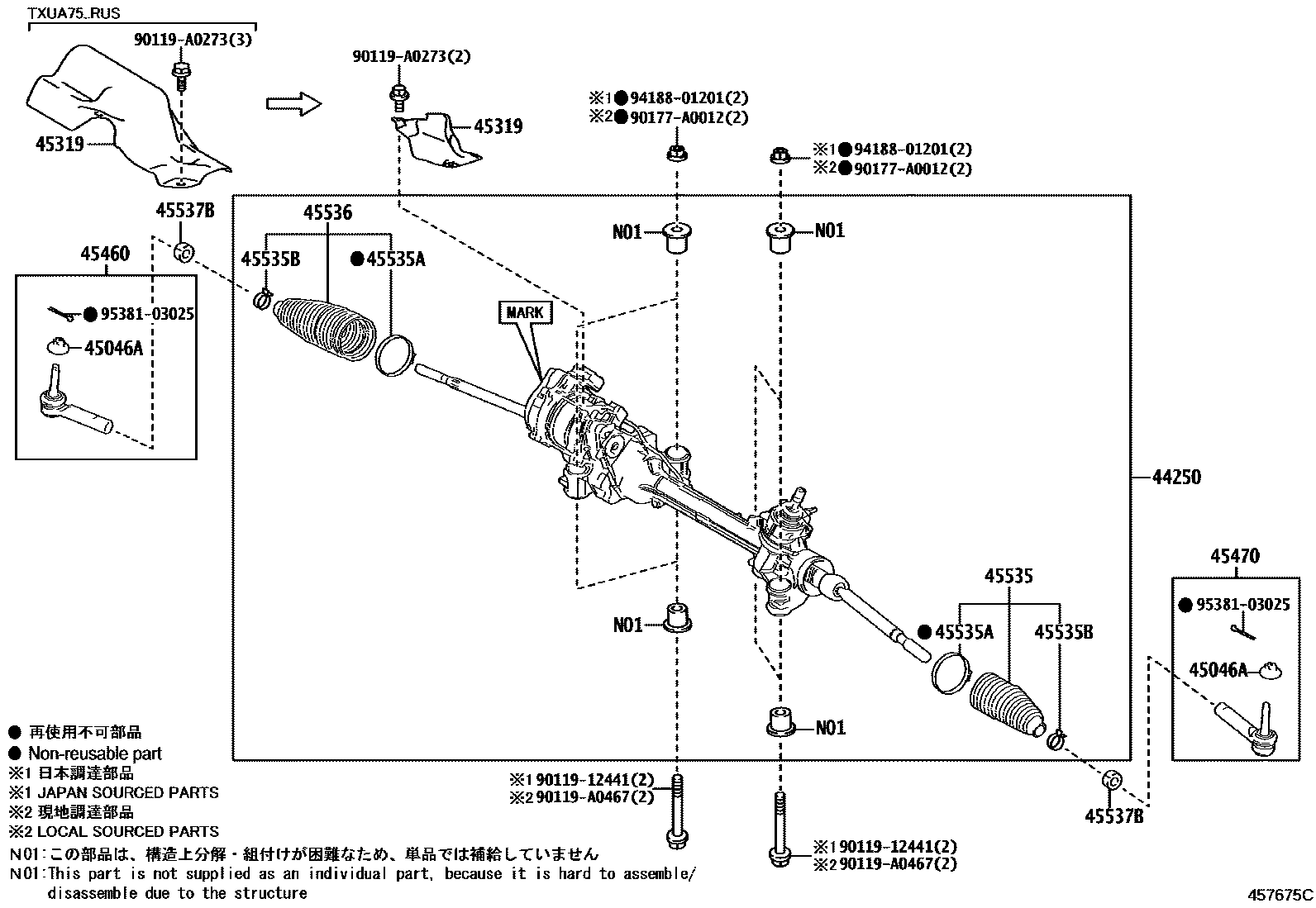

FRONT STEERING GEAR & LINK

0001 1 0002 1 0004 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0E040iAXUH7#,GSU75202002-202011

MARK:89650-48730

main44250-0E041iAXUH7#,GSU75..GCC,RUS202011-202210

MARK:89650-48B60

main44250-0E042iAXUH7#,TXUA75..GCC,RUS202210-202311

main44250-0E061iAXUH78,GSU7#..ARL202012-202210

main44250-0E062iAXUH78,TXUA7#..ARL202210-202312

main44250-0E071iAXUH78..LHD..EUR202011-202210

main44250-0E072iAXUH78..LHD..EUR202210-202311

main44250-0E081iAXUH78..RHD..EUR202011-202210

main44250-0E082iAXUH78..RHD..EUR202210-202312

main44250-0E260iAXUH70..LIMD202311-202410

*614

main44250-0E270iAXUH78,TXUA7#..RHD202401

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXUH70..LIMD202002-202410

45319INSULATOR, STEERING GEAR HEAT

main45319-0E030iAXUH78,GSU7#..RHD202011-202210

main45319-0R010iAXUH7#..LHD202002-202410

main45319-78020iAXUH78,TXUA7#..RHD202210-202312

main45319-F6010iTXUA75..RUS202210-202311

45460ROD ASSY, TIE, RH

main45460-09360iAXUH7#,TXUA75..LHD202210-202410

main45460-09370iAXUH7#,GSU7#202002-202210

sub45460-09360

45470ROD ASSY, TIE, LH

main45460-09360iAXUH7#,TXUA75..LHD202210-202410

main45460-09370iAXUH7#,GSU7#202002-202210

sub45460-09360

45535BOOT, STEERING RACK, NO.1

main45535-09600iAXUH7#,GSU7#202002-202210

main45535-0E030iAXUH70..LIMD202311-202410

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0T010iAXUH70..LIMD202002-202410

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020iAXUH7#,TXUA7#202009-202403

main45537-0T010iAXUH7#,GSU75202002-202008

main90467-19017iAXUH7#,TXUA7#202309-202312

sub90467-19021

main90467-19021iAXUH70..LIMD202404-202410

45536BOOT, STEERING RACK, NO.2

main45535-09600iAXUH7#,GSU7#202002-202210

main45535-0E030iAXUH70..LIMD202311-202410

45537BNUT, RACK END LOCK

main90178-16001iAXUH78,TXUA7#;AXUH70..LE,XLE202002-202410

(J)

main90178-A0013iAXUH78,TXUA7#..RHD202002-202410

(L)

9011912441

main90119-12441

90119A0273

main90119-A0273

90119A0467

main90119-A0467

90177A0012

main90177-A0012

9418801201

main94188-01201

9538103025

main95381-03025

16 parts on this diagram · 3 diagrams in section
