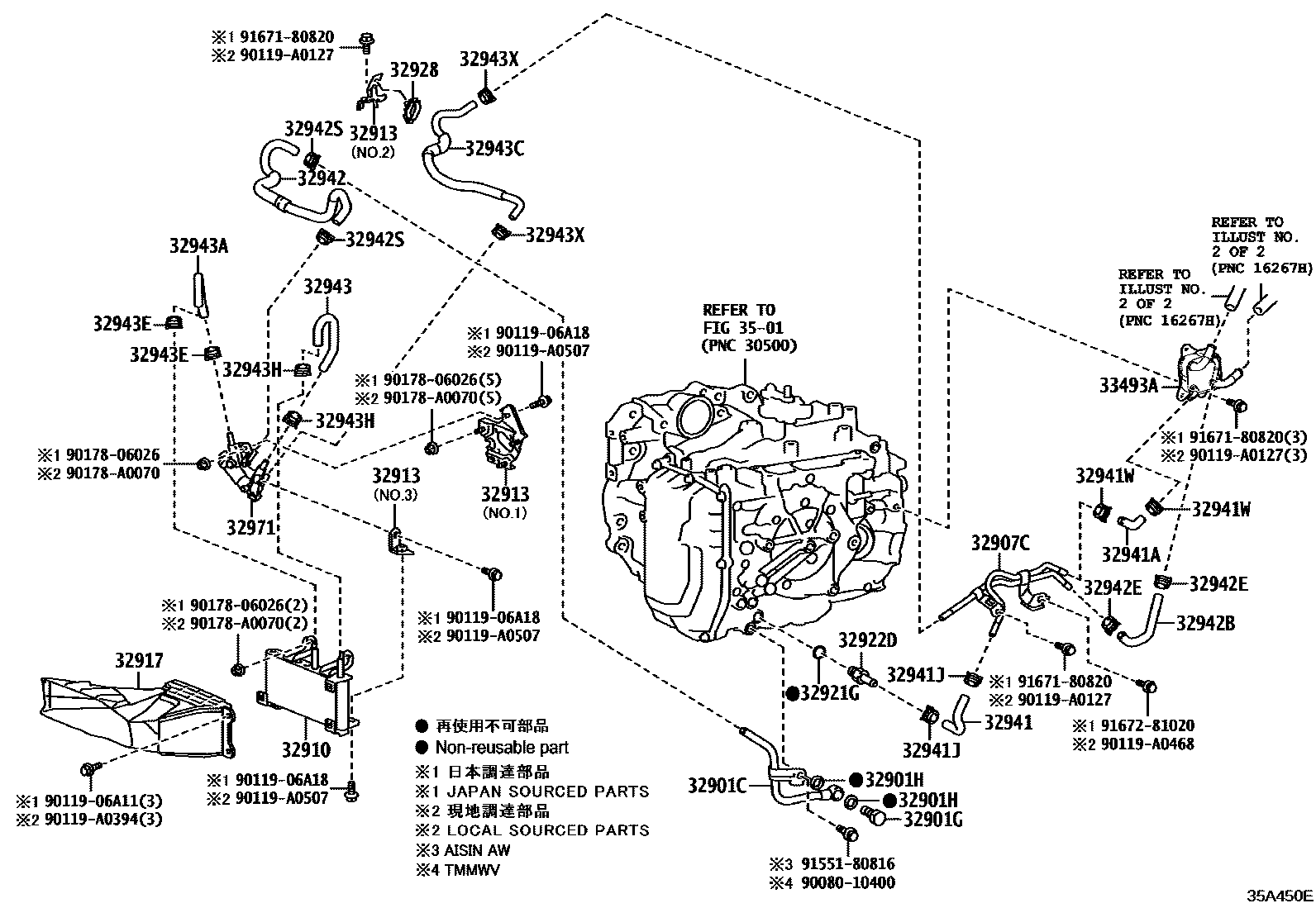

OIL COOLER & TUBE (ATM)
32901CUNION SUB-ASSY, OIL COOLER
32901GBOLT, UNION(FOR OIL COOLER)
32901HGASKET(FOR OIL COOLER UNION)
AISIN AW:REFER 35-01
(J)
(L)
TMMWV:REFER 35-01
32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32910COOLER ASSY, OIL
32913BRACKET, OIL COOLER
NO.1
NO.2
NO.3
(L)
(J)
32917DUCT, TRANSMISSION OIL COOLER AIR
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922DUNION OR ELBOW, OIL COOLER OUTLET
32928CLAMP, FLEXIBLE HOSE, NO.1
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
(J)
(L)
32941WCLIP,NO.5(FOR OIL COOLER TUBE)
(J)
(L)
32942HOSE, OIL COOLER OUTLET, NO.1
32942BHOSE, OIL COOLER OUTLET, NO.3
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
(J)
(L)
32942SCLIP, NO.6(FOR OIL COOLER TUBE)
(J)
(L)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943CHOSE, TRANSMISSION OIL COOLER, NO.3
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
(J)
(L)
32943HCLIP, NO.4(FOR OIL COOLER HOSE)
(J)
(L)
32943XCLIP, NO.7(FOR OIL COOLER TUBE)
(J)
(L)
32971THERMOSTAT, TRANSMISSION OIL
33493ACOOLER, TRANSMISSION OIL(ATF WARMER)
3501
9008010400
9011906A11
9011906A18
90119A0127
main90119-A0127
90119A0394
main90119-A0394
90119A0468
main90119-A0468
90119A0507
main90119-A0507
9017806026
90178A0070
main90178-A0070
9155180816
9167180820
9167281020
39 parts on this diagram · 3 diagrams in section
