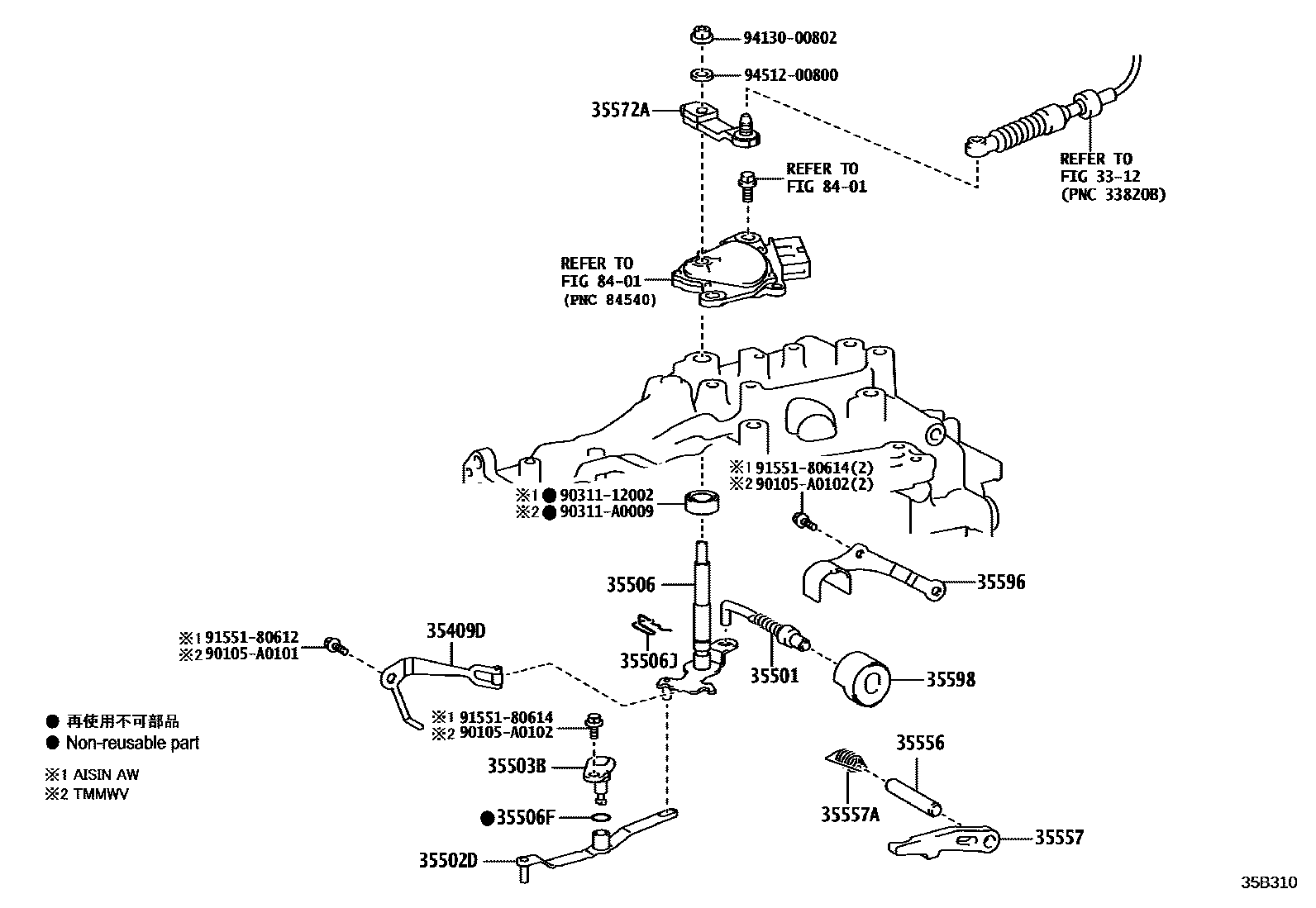

THROTTLE LINK & VALVE LEVER (ATM)
3312
35409DSPRING SUB-ASSY, MANUAL DETENT
35501ROD SUB-ASSY, PARKING LOCK
35502DLEVER SUB-ASSY, MANUAL VALVE LINK
35503BSHAFT SUB-ASSY, MANUAL VALVE LINK
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
AISIN:REFER 35-01
(J)
AISIN AW:REFER 35-01
TMMWV:REFER 35-01
(L)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35572ALEVER, TRANSMISSION CONTROL SHAFT
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
35596PLATE, PAWL STOPPER
(L)
TMMWV:REFER 35-01
AISIN:REFER 35-01
(J)
AISIN AW:REFER 35-01
35598SLEEVE, PARKING LOCK
(L)
TMMWV:REFER 35-01
AISIN:REFER 35-01
(J)
AISIN AW:REFER 35-01
8401
90105A0101
main90105-A0101
90105A0102
9031112002
90311A0009
main90311-A0009
9155180612
9155180614
9413000802
9451200800
23 parts on this diagram · 1 diagram in section
