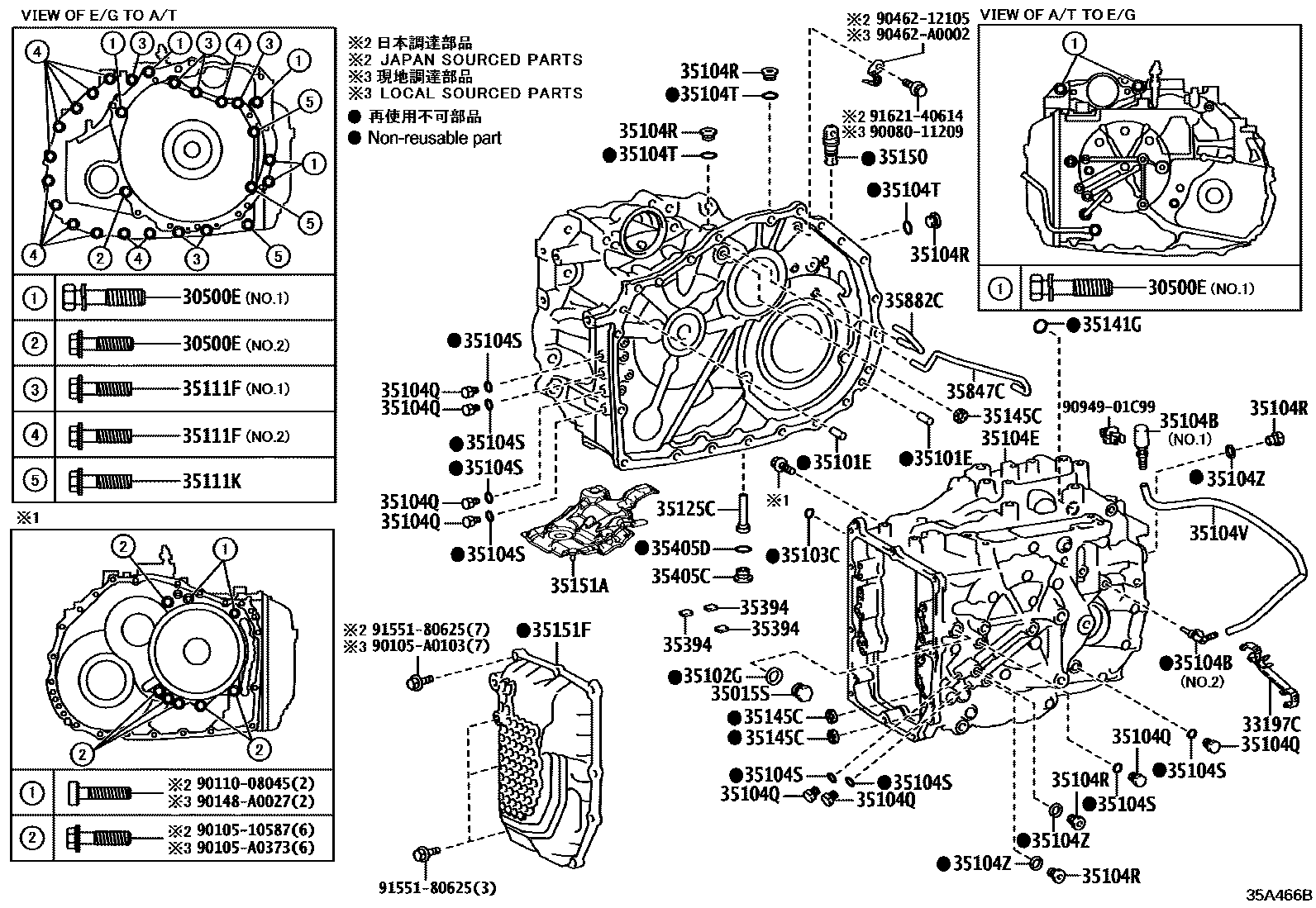

TRANSMISSION CASE & OIL PAN (ATM)

0001 1UA80E,UA80F 0002 1UA81F,(AISIN AW:REFER 35-01) 0003 1UA81E,UA81F,(TMMWV:REFER 35-0

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10338iGSU7#202003-202210

*10-1.25PX41-30,(L),NO.2

main90080-11310×7iGSU7#202003-202210

*12-1.25PX55-30,(L),NO.1

main90105-10425iGSU7#202003-202210

*10-1.25PX41-28,(J),NO.2

main90105-A0225×2iTXUA75..RUS202210-202311

*12-1.25PX50-30,NO.1

main90105-A0269iTXUA7#202311

*8-1.25PX35-22,NO.3

main90105-A0393iTXUA7#202311

*10-1.25PX45-36,NO.2

main90119-12168×7iGSU7#202003-202210

*12-1.25PX55-30,(J),NO.1

33197CCLAMP, TRANSMISSION BREATHER

main33197-06010iGSU7#202003-202210

(L)

main33197-33020iGSU7#202003-202210

(J)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGSU75202003-202210

(J)

main90341-A0003iTXUA75..RUS202210-202311

TMMWV:REFER 35-01

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017×2iTXUA7#..ARL202210-202312

TMMWV:REFER 35-01

main90250-10021×2iTXUA75202311

AISIN:REFER 35-01

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iTXUA75..RUS202210-202311

main90430-A0003iTXUA7#..ARL202210-202312

TMMWV:REFER 35-01

35103CRING, O

main90301-06021iGSU7#202003-202210

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03216iTXUA75..RUS202210-202311

NO.1

main90930-03230iTXUA75..RUS202210-202311

NO.2,*228

main90930-A3009iTXUA75..RUS202210-202311

NO.2,TMMWV:SEE 35-01

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-06050iGSU7#202003-202210

TMMWV:REFER 35-01

main35104-0E010iTXUA7#..ARL202210-202312

TMMWV:REFER 35-01

main35104-48040iGSU75202003-202210

AISIN AW:REFER 35-01

main35104-78010iTXUA75..ARL202210-202312

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iGSU75202003-202210

(J)

main90341-A0001×8iTXUA7#202311

NO.1,TMMWV:SEE 35-01

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iTXUA75..RUS202210-202311

NO.1

main90341-A0005×3iTXUA7#..ARL202210-202312

NO.1,TMMWV:SEE 35-01

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105×4iTXUA75..RUS202210-202311

NO.1,TMMWV:SEE 35-01

main90301-06196×8iTXUA75202311

NO.1,*228

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008×3iGSU7#202003-202210

35104VHOSE (FOR BREATHER PLUG)

main35121-33060iGSU7#202003-202210

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGSU7#202003-202210

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367×6iGSU7#202003-202210

*8-1.25PX40-22,(L),NO.1

main91551-00835×12iTXUA7#..ARL202210-202312

*8-1.25PX35-22,NO.2,TMMWV:SEE 35-01

main91551-00840×3iTXUA7#..ARL202210-202312

*8-1.25PX40-22,NO.3,TMMWV:SEE 35-01

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main91551-00840×3iGSU7#202003-202210

*8-1.25PX40-22

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06130iTXUA7#202311

TMMWV:REFER 35-01

main35125-48090iTXUA75202311

AISIN:REFER 35-01

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iTXUA75..RUS202210-202311

AISIN AW:REFER 35-01

main90301-A0016iGSU7#202003-202210

TMMWV:REFER 35-01

35145CGASKET, TRANSAXLE CASE

main35145-07010×3iGSU7#202003-202102

(L)

main35145-33010×3iGSU75202003-202102

(J)

main35145-33020×3iTXUA7#..ARL202210-202312

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iTXUA7#202311

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-45020iGSU7#202003-202210

main35151-78010iTXUA75..RUS202210-202311

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iTXUA7#202210-202310

TMMWV:REFER 35-01

main35151-33161iTXUA7#202311

AISIN:REFER 35-01

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010×3iGSU7#202003-202210

TMMWV:REFER 35-01

main35394-48010×3iTXUA75202311

AISIN:REFER 35-01

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iTXUA7#..ARL202210-202312

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iTXUA75..ARL202210-202312

AISIN AW:REFER 35-01

main90430-A0003iTXUA7#202311

TMMWV:REFER 35-01

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iGSU7#202003-202210

TMMWV:REFER 35-01

main35847-48030iGSU75202003-202210

AISIN AW:REFER 35-01

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iTXUA75..RUS202210-202311

TMMWV:REFER 35-01

main35882-48030iTXUA75..RUS202210-202311

AISIN AW:REFER 35-01

9008011209

main90080-11209

9010510587

main90105-10587

90105A0103

main90105-A0103

90105A0373

main90105-A0373

9011008045

main90110-08045

90148A0027

main90148-A0027

9046212105

main90462-12105

90462A0002

main90462-A0002

9094901C99

main90949-01C99

9155180625

main91551-80625

9162140614

main91621-40614

38 parts on this diagram · 3 diagrams in section
