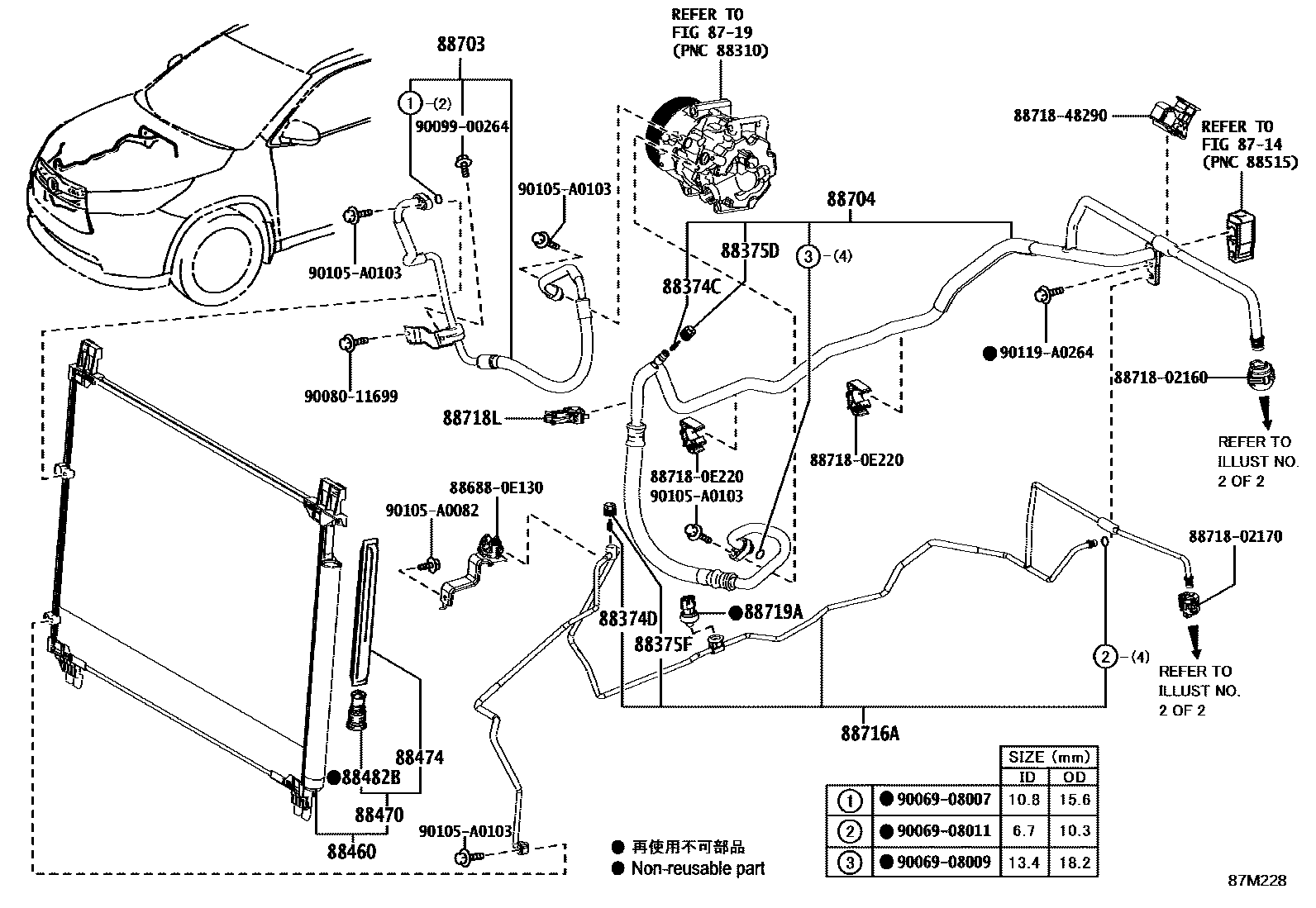

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374CVALVE, SERVICE, NO.2
88374DVALVE, SERVICE NO.3
88375DCAP, SERVICE VALVE, NO.2
(L),DENSO
(J),DENSO
88460CONDENSER ASSY, COOLER
88470RECEIVER & DRYER ASSY, COOLER
88474DRYER, COOLER
88482BCAP, COOLER NO.1
88703HOSE SUB-ASSY, DISCHARGE
88704HOSE SUB-ASSY, SUCTION
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718LCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
886880E130BRACKET, COOLER DIAPHRAGM
main88688-0E130
8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-02160
8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-02170
887180E220PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0E220
8871848290PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48290
9006908007
main90069-08007
9006908009
main90069-08009
9006908011
main90069-08011
9008011699
main90080-11699
9009900264
main90099-00264
90105A0082
main90105-A0082
90105A0103
main90105-A0103
90119A0264
main90119-A0264
28 parts on this diagram · 8 diagrams in section
