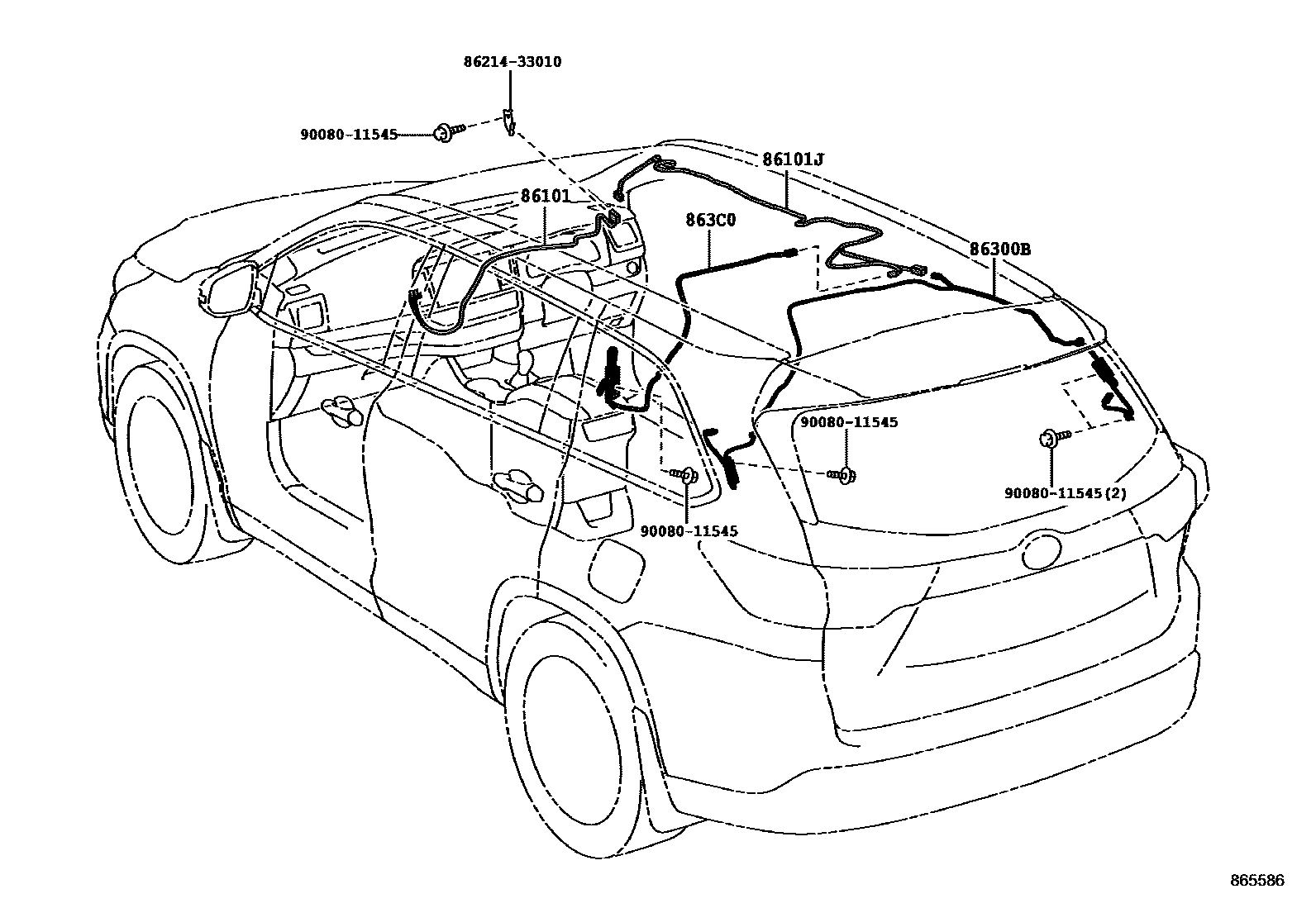

ANTENNA

0001 1 0002 1 0003 1 0004 1

86101CORD SUB-ASSY, ANTENNA

main86101-0E450iASU50,GSU55..RUS201312-201911

main86101-0E470iGSU5#..LE..ARL201312-201911

main86101-0E480iGSU5#..LIMD..ARL201312-201611

main86101-0E480iGSU5#..LIMD..ARL201611-201911

AUDIO-8INCH AVN 6SPEAKER W(NIS)

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0E490iASU50;GSU5#..LE;GSU55..LIMD..RUS201312-201911

main86101-0E510iGSU5#..LE..ARL201611-201911

AUDIO-8INCH AVN 6SPEAKER W(NIS)

main86101-0E510iGSU5#..LIMD..ARL201312-201611

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0E030iASU50,GSU5#201312-201611

863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING

main863C0-0E010iGSU5#..LE..ARL201611

AUDIO-8INCH AVN 6SPEAKER W(NIS)

main863C0-0E010iGSU5#..LIMD..ARL201312-201611

8621433010BRACKET, RADIO, NO.4

main86214-33010

9008011545

main90080-11545

6 parts on this diagram · 4 diagrams in section
