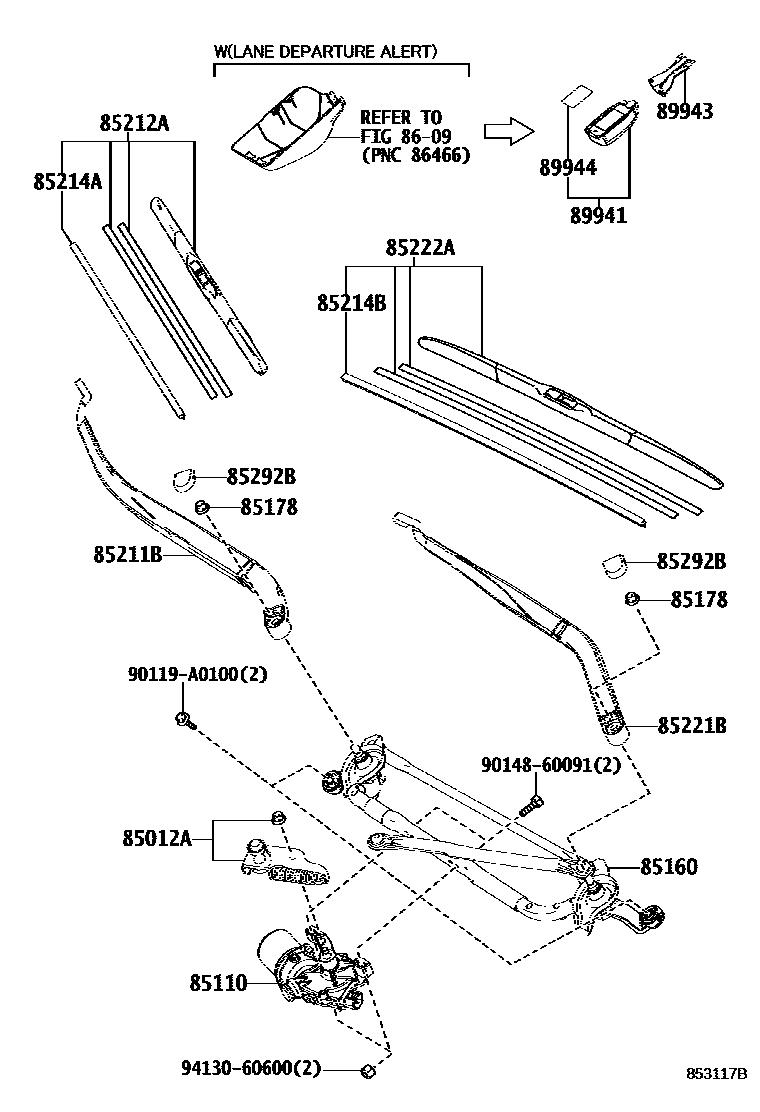

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-0E010iASU50,GSU55..RUS201312-201611

main85012-48010iGSU5#..ARL201312-201611

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0E060iASU50,GSU55..RUS201312-201611

main85110-0E070iGSU5#..ARL201312-201611

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E060iASU50,GSU55..RUS201312-201611

main85150-0E070iGSU5#..ARL201312-201611

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017iASU50,GSU5#201312-201611

85211BARM, FRONT WIPER, RH

main85211-0E050iASU50,GSU55..RUS201312-201611

main85211-0E060iGSU5#..ARL201312-201611

85212ABLADE, FR WIPER, RH

main85212-0E050iASU50,GSU55..RUS201312-201611

main85212-0E060iGSU5#..ARL201312-201611

85214ARUBBER, WIPER, RH

main85214-0E140iASU50,GSU55..RUS201312-201611

main85214-0E151iGSU5#..ARL201312-201611

85214BRUBBER, WIPER, LH

main85214-0E140iGSU5#..ARL201312-201611

main85214-0E151iASU50,GSU55..RUS201312-201611

85221BARM, FRONT WIPER, LH

main85221-0E060iASU50,GSU55..RUS201312-201611

main85221-0E070iGSU5#..ARL201312-201611

85222ABLADE, FR WIPER, LH

main85222-0E050iASU50,GSU55..RUS201312-201611

main85222-0E060iGSU5#..ARL201312-201611

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iASU50,GSU5#201312-201611

8609

89941SENSOR, RAIN

main89941-52010iASU50,GSU55..LIMD..RUS201312-201611

LEATHER PACKAGE

89943COVER, RAIN SENSOR

main89943-76010iASU50,GSU55..LIMD..RUS201312-201611

LEATHER PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010iASU50,GSU55..LIMD..RUS201312-201611

LEATHER PACKAGE

90119A0100

main90119-A0100

9014860091

main90148-60091

9413060600

main94130-60600

18 parts on this diagram · 2 diagrams in section
