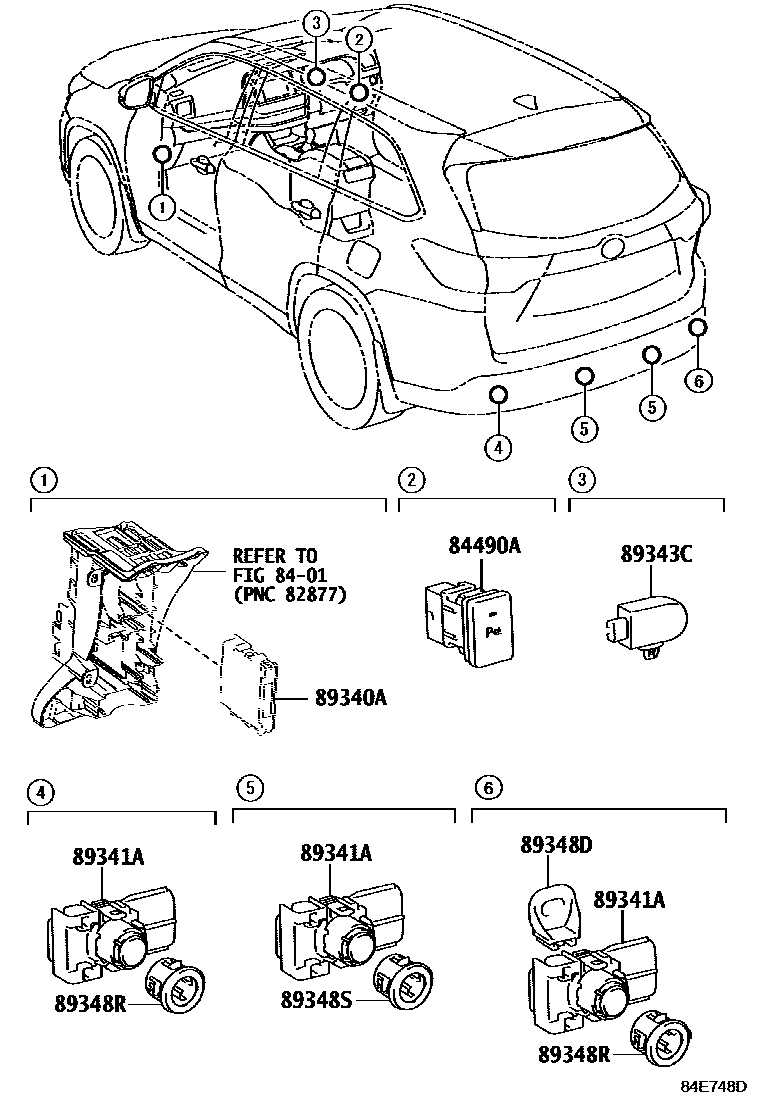

CLEARANCE & BACK SONAR
8401
89340ACOMPUTER ASSY, CLEARANCE WARNING
LEATHER PACKAGE
BACK MONITOR-PANORAMIC VIEW MONITOR
89341ASENSOR, ULTRASONIC, NO.1
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
89343CBUZZER, CLEARANCE WARNING, NO.1
LEATHER PACKAGE
89348DCLIP, ULTRASONIC SENSOR
LEATHER PACKAGE
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
8 parts on this diagram · 3 diagrams in section
