CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-0E020iASU50,GSU5#201312-201611

main84632-0E030iGSU5#..LIMD..ARL201312-201611

PRE-COLLISION SYSTEM-WITH

main84632-0R011iASU50,GSU55..LIMD..RUS201611

GSP WITH TSR

main84632-0R011iGSU5#..LE..ARL201710

main84632-0R030iASU50,GSU55..RUS201611-201710

84633WIRE, CRUISE CONTROL SWITCH

main84633-0E040iASU50,GSU5#201312-201611

main84633-0E050iGSU5#..LIMD..ARL201312-201611

PRE-COLLISION SYSTEM-WITH

main84633-0R021iGSU5#..LIMD..ARL201611

GSP WITH TSR

main84633-0R021iGSU5#..LE..ARL201710

main84633-0R030iGSU5#..LE..ARL201611-201710

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-07010iGSU5#..LIMD..ARL201611-201911

main88210-0E010iASU50,GSU55..LIMD..RUS201611-201911

GSP WITH TSR

main88210-48080iGSU5#..LIMD..ARL201312-201611

PRE-COLLISION SYSTEM-WITH

main88210-48080iGSU5#..LIMD..ARL201402-201408

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8821048080

9008015079

main90080-15079

90119A0046

main90119-A0046

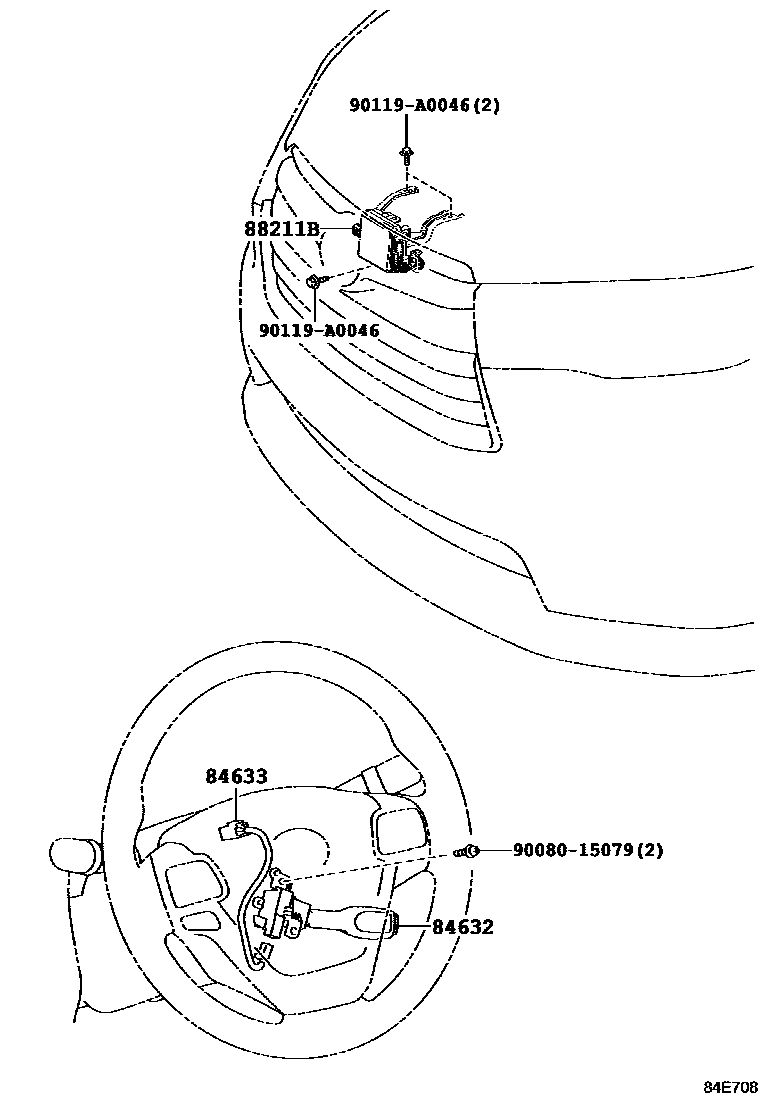

5 parts on this diagram · 2 diagrams in section
