HEADLAMP

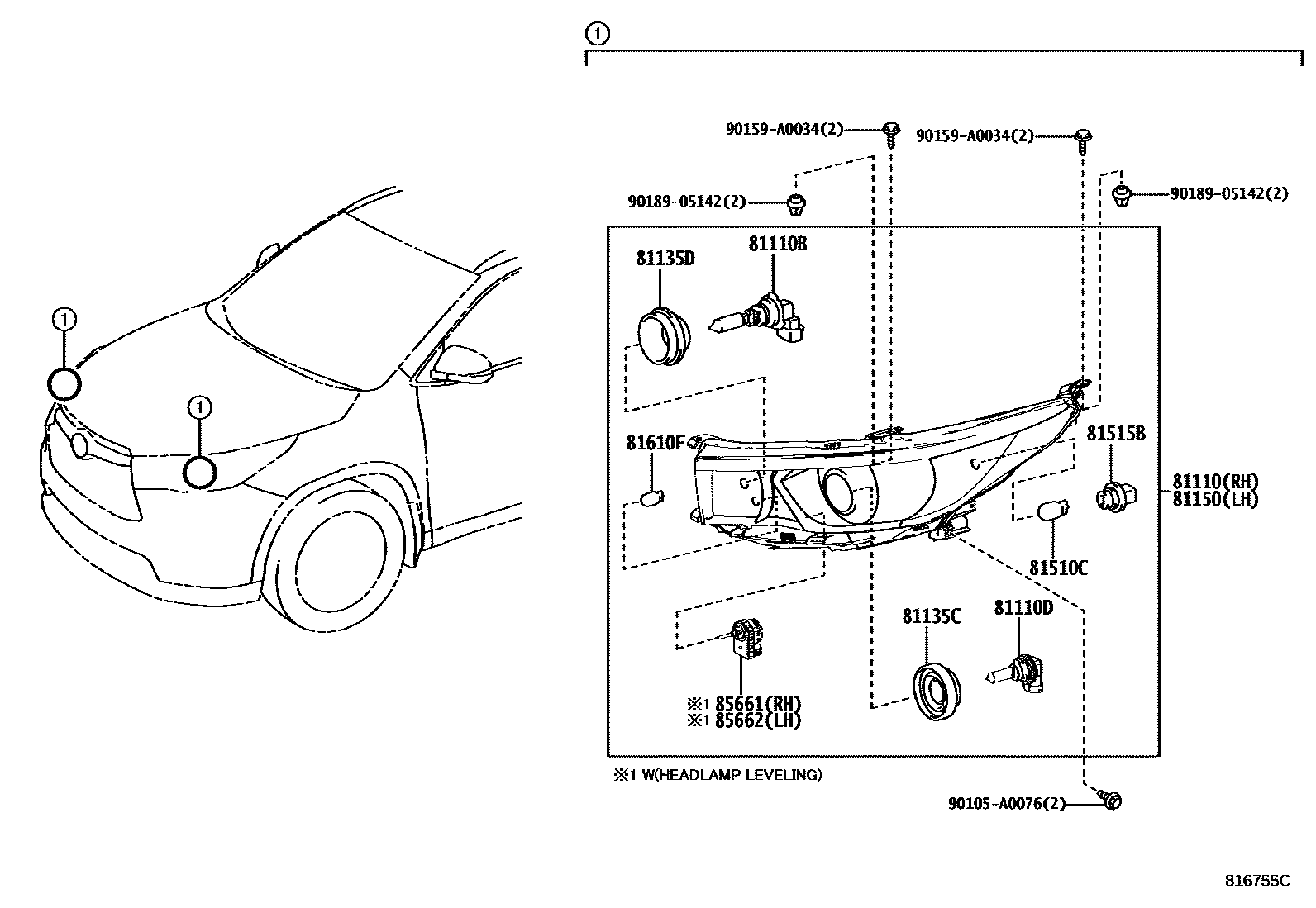

Parts diagram

81110HEADLAMP ASSY, RH

main81110-0E190i201312-201611

main81110-0E200i201312-201611

main81110-0E210i201312-201611

main81110-0E220i201312-201611

main81110-0E340i201611-201809

main81110-0E341i201809

main81110-0E350i201611

main81110-0E370i201611-201809

main81110-0E372i201809

main81110-0E380i201611

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046i201312-201611

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075i201312-201611

12V 55W,HALOGEN

81135CCOVER, HEADLAMP BACK, NO.1

main81135-0E220i201312-201611

main90075-65006i201312-201611

81135DCOVER, HEADLAMP BACK, NO.2

main81135-60F60i201312-201611

81150HEADLAMP ASSY, LH

main81150-0E190i201312-201611

main81150-0E200i201312-201611

main81150-0E210i201312-201611

main81150-0E220i201312-201611

main81150-0E340i201611-201809

main81150-0E341i201809

main81150-0E350i201611

main81150-0E370i201611-201809

main81150-0E372i201809

main81150-0E380i201611

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021i201312-201611

12V 21W,AMBER

main90981-15024i201611-201704

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470i201611-201704

main90075-60028i201312-201611

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069i201312-201611

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010i201312-201611

main85661-12020i201611

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010i201312-201611

main85661-12020i201611

90105A0076

main90105-A0076

90159A0034

main90159-A0034

9018905142

main90189-05142

14 parts on this diagram · 3 diagrams in section
