SIDE MOULDING
62955FRETAINER, QUARTER VENT LOUVER
62955GRETAINER, QUARTER VENT LOUVER
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
NO PAINT REQ.
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
75085AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
75086MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
75392ARETAINER, OUTSIDE MOULDING, NO.1
75392ERETAINER, OUTSIDE MOULDING, NO.1
75392GRETAINER, OUTSIDE MOULDING, NO.1
75393RETAINER, OUTSIDE MOULDING, NO.2
75394RETAINER, OUTSIDE MOULDING, NO.3
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
LEATHER PACKAGE & BLACK PACKAGE
75625CPAD, FRONT FENDER OUTSIDE MOULDING, UPPER
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
NO PAINT REQ.
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
75747AMOULDING, REAR DOOR OUTSIDE, LOWER REAR RH
75748AMOULDING, REAR DOOR OUTSIDE, LOWER REAR LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873ACLIP (FOR QUARTER OPENING MOULDING)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING
9010905058
main90109-05058
9015960603
main90159-60603
90159A0060
main90159-A0060
90182A0026
main90182-A0026
9018906236
main90189-06236
90269A0006
main90269-A0006
9043004260
main90430-04260

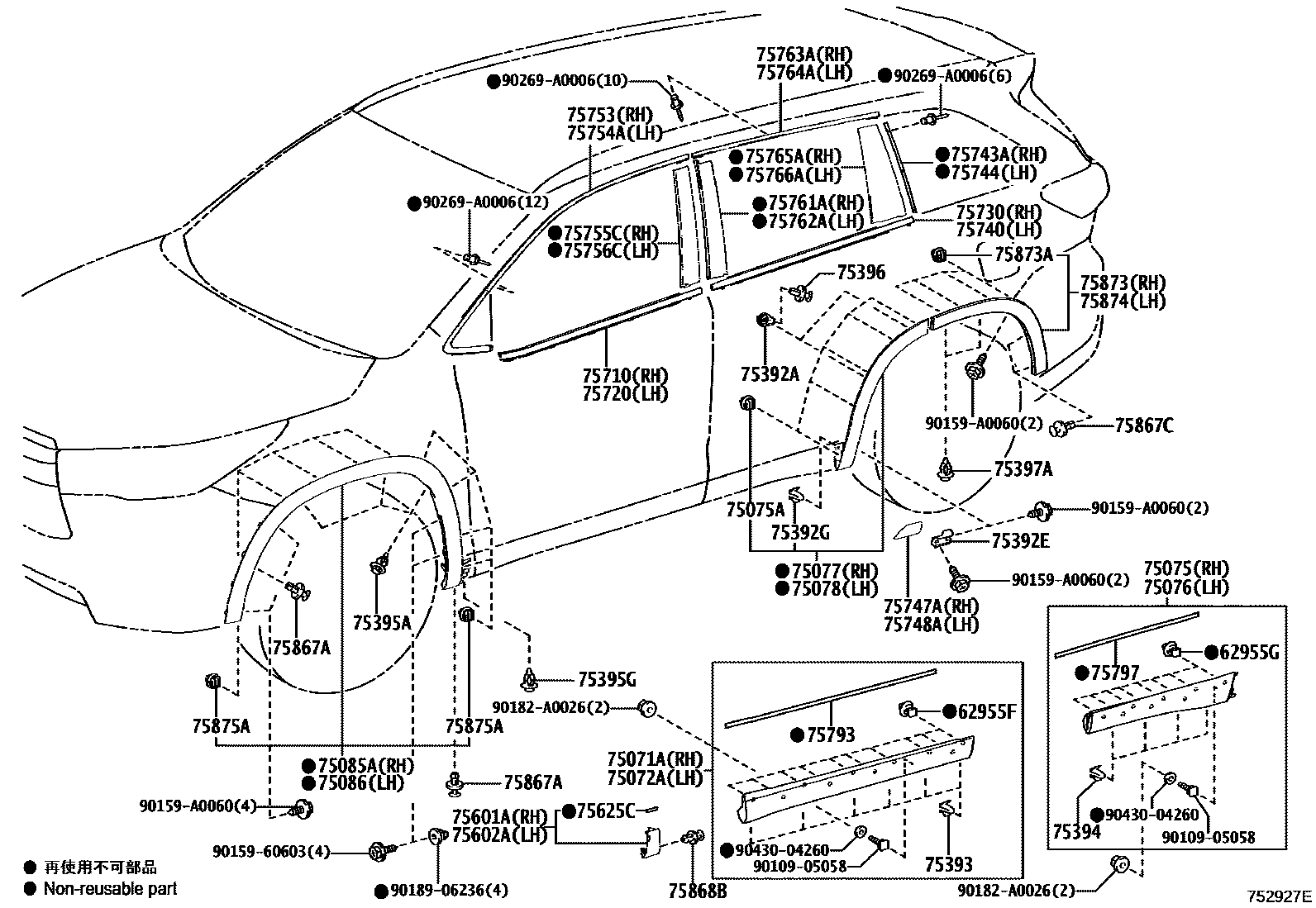

57 parts on this diagram · 3 diagrams in section
