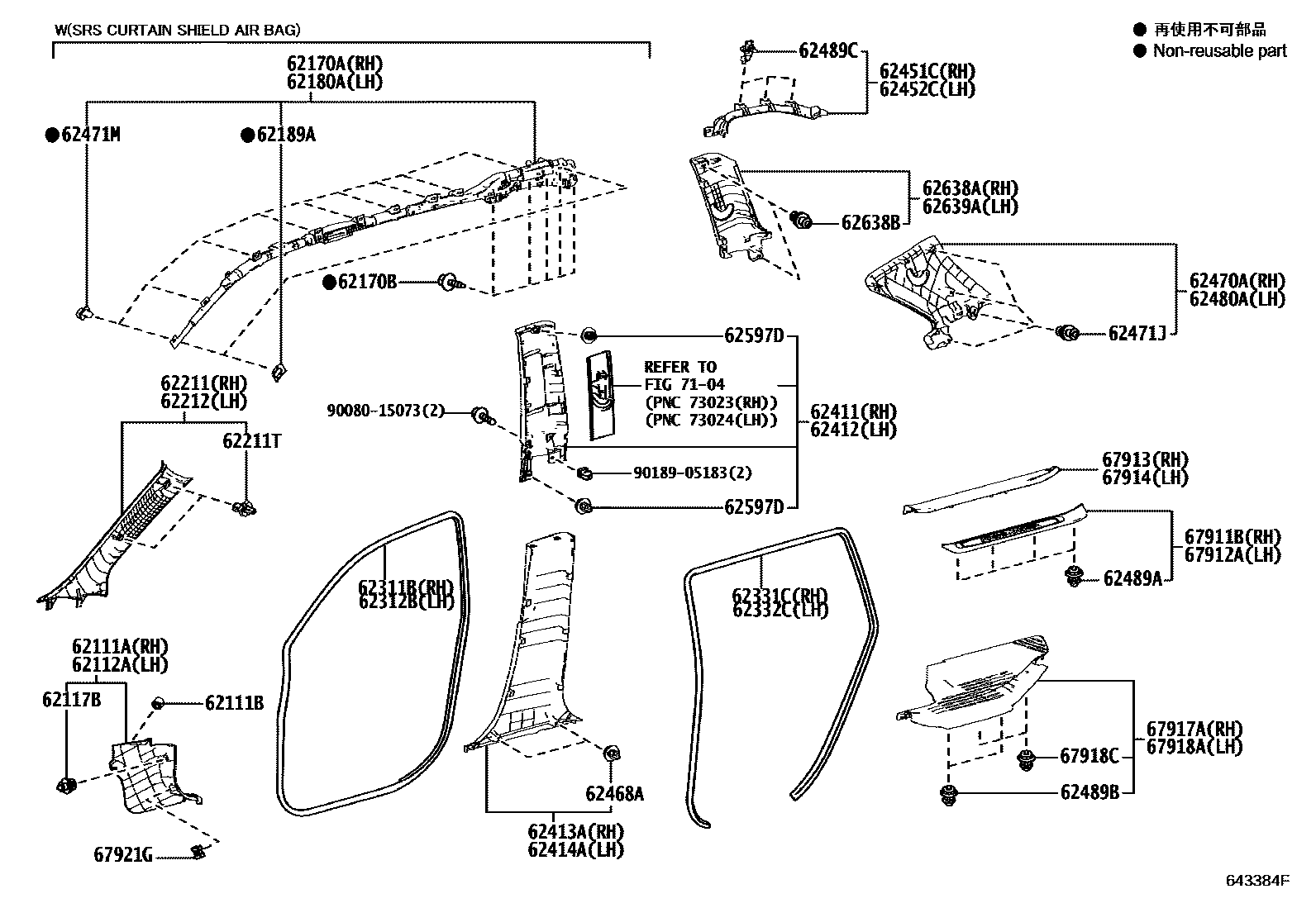

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-0E050-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM0#,2#

main62101-0E050-C0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

BLACK,TRIM2#

main62101-0E050-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-A0024iASU50,GSU5#201312-201611

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-0E050-C0iGSU5#..LIMD..ARL201312-201611

BLACK,TRIM2#

main62102-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main62102-0E050-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM0#,2#,4#

main62102-0E070-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM0#,2#,4#

main62102-0E070-C0iASU50,GSU55..RUS201312-201611

BLACK,TRIM0#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main62489-0E010iASU50,GSU5#201312-201611

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0E050iASU50,GSU5#201312-201510

sub62170-0E051

main62170-0E051iASU50,GSU5#201511-201907

sub62170-0E052

main62170-0E052iASU50,GSU5#201908

62170BBOLT, W/WASHER

main90080-11628iASU50,GSU5#201312-201611

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0E050iASU50,GSU5#201312-201510

sub62180-0E051

main62180-0E051iASU50,GSU5#201511-201907

sub62180-0E052

main62180-0E052iASU50,GSU5#201908

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iASU50,GSU5#201312-201611

62211GARNISH, FRONT PILLAR, RH

main62210-0E060-A1iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62210-0E060-B1iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

main62210-0E060-B1iASU50,GSU5#..LE201312-201611

GRAY,TRIM2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-0E040iASU50,GSU5#201312-201611

UPPER

main62217-52120iASU50,GSU5#201312-201611

LOWER

62212GARNISH, FRONT PILLAR, LH

main62220-0E060-A1iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62220-0E060-B1iASU50,GSU5#..LE201312-201611

GRAY,TRIM2#

main62220-0E060-B1iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0E050-C0iASU50,GSU55..LE..RUS201611-201809

BLACK,TRIM0#,2#,4#

main62311-0E050-C0iASU50,GSU55..LE..RUS201312-201809

BLACK,TRIM2#

main62311-0E050-C0iASU50,GSU55..LE..RUS201312-201809

BLACK,TRIM0#,2#

main62311-0E051iASU50,GSU5#201809

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0E050-C0iGSU5#..LE..ARL201312-201809

BLACK,TRIM0#,2#

main62312-0E050-C0iGSU5#..LE..ARL201312-201809

BLACK,TRIM2#

main62312-0E050-C0iASU50,GSU5#..LIMD201611-201809

BLACK,TRIM0#,2#,4#

main62312-0E051iASU50,GSU5#201809

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0E050-C0iGSU5#..LE..ARL201312-201809

BLACK,TRIM0#,2#

main62331-0E050-C0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201809

BLACK,TRIM2#

main62331-0E050-C0iASU50,GSU5#..LIMD201611-201809

BLACK,TRIM0#,2#,4#

main62331-0E051iASU50,GSU5#201809

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0E050-C0iGSU5#..LE..ARL201312-201809

BLACK,TRIM2#

main62332-0E050-C0iGSU5#..LE..ARL201312-201809

BLACK,TRIM0#,2#

main62332-0E050-C0iASU50,GSU5#..LIMD201611-201809

BLACK,TRIM0#,2#,4#

main62332-0E051iASU50,GSU5#201809

62411GARNISH, CENTER PILLAR, RH

main62410-0E060-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62410-0E060-B0iASU50,GSU5#201312-201611

GRAY,TRIM2#

main62410-0E060-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

62412GARNISH, CENTER PILLAR, LH

main62420-0E060-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62420-0E060-B0iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

main62420-0E060-B0iASU50,GSU5#..LE201312-201611

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main62413-0E050-C0iASU50,GSU55..LE..RUS201611

BLACK,TRIM0#,2#,4#

main62413-0E050-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0E050-C0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

BLACK,TRIM2#

main62414-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main62414-0E050-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62450-0E010-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62450-0E010-B0iASU50,GSU5#..LIMD201312-201611

GRAY,TRIM2#

main62450-0E010-B0iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62460-0E010-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62460-0E010-B0iASU50,GSU5#201312-201611

GRAY,TRIM2#

main62460-0E010-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-09232iASU50,GSU5#201312-201611

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0E130-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62470-0E130-B0iASU50,GSU5#..LE201312-201611

GRAY,TRIM2#

main62470-0E130-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main62489-0E010iASU50,GSU5#201312-201611

62471MCLIP

main90467-18017iASU50,GSU5#201312-201611

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0E130-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201602

FLAXEN,TRIM0#

sub62480-0E131

main62480-0E130-B0iASU50,GSU5#201312-201602

GRAY,TRIM2#

sub62480-0E131

main62480-0E131-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201603-201611

FLAXEN,TRIM0#

main62480-0E131-B0iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

main62480-0E131-B0iASU50,GSU5#..LE201603-201611

GRAY,TRIM2#

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-10167iASU50,GSU5#201312-201611

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-0E010iASU50,GSU5#201312-201611

62489CCLIP, ROOF SIDE INNER GARNISH

main62489-60020iASU50,GSU5#201312-201611

62597DCLIP

main90467-09232iASU50,GSU5#201312-201611

62638AGARNISH, QUARTER PILLAR, RH

main62550-0E010-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62550-0E010-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

main62550-0E010-B0iASU50,GSU5#201312-201611

GRAY,TRIM2#

62638BCLIP

main62489-0E010iASU50,GSU5#201312-201611

62639AGARNISH, QUARTER PILLAR, LH

main62560-0E010-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main62560-0E010-B0iASU50,GSU5#..LIMD201312-201611

GRAY,TRIM2#

main62560-0E010-B0iASU50,GSU5#..LIMD201611

GRAY,TRIM2#,4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main67911-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67911-0E070-C0iGSU5#..LIMD..ARL201312-201611

NEW ZEALAND SPEC,BLACK,TRIM0#,2#

main67911-0E070-C0iASU50,GSU55..LIMD..RUS201312-201611

BLACK,TRIM0#,2#

main67911-0E070-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM0#,2#,4#

main67911-0E070-C0iASU50,GSU55..LIMD..RUS201611

NEW ZEALAND,BLACK,TRIM0#,2#,4#

main67911-0E080-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM0#,2#,4#

main67911-0E080-C0iGSU5#..LIMD..ARL201312-201611

BLACK,TRIM0#,2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67912-0E060-C0iASU50,GSU55..LE..RUS201312-201611

BLACK,TRIM2#

main67912-0E070-C0iASU50,GSU55..LIMD..RUS201611

NEW ZEALAND,BLACK,TRIM0#,2#,4#

main67912-0E070-C0iASU50,GSU55..LIMD..RUS201312-201611

BLACK,TRIM0#,2#

main67912-0E070-C0iASU50,GSU55..LIMD..RUS201312-201611

NEW ZEALAND SPEC,BLACK,TRIM0#,2#

main67912-0E070-C0iASU50,GSU55..LIMD..RUS201611

BLACK,TRIM0#,2#,4#

main67912-0E080-C0iGSU5#..LIMD..ARL201312-201611

BLACK,TRIM0#,2#

main67912-0E080-C0iGSU5#..LIMD..ARL201611

BLACK,TRIM0#,2#,4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main67913-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67913-0E060-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main67914-0E060-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67914-0E060-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main67917-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67917-0E050-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM2#

main67918-0E050-C0iGSU5#..LE..ARL201312-201611

BLACK,TRIM0#,2#

main67918-0E050-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#,4#

67918CCLIP(FOR REAR SCUFF PLATE)

main67773-0E020iASU50,GSU5#201312-201611

67921GRETAINER, FRONT DOOR SCUFF PLATE

main67921-0E050iASU50,GSU5#201312-201611

7104

9008015073

main90080-15073

9018905183

main90189-05183

44 parts on this diagram · 1 diagram in section
