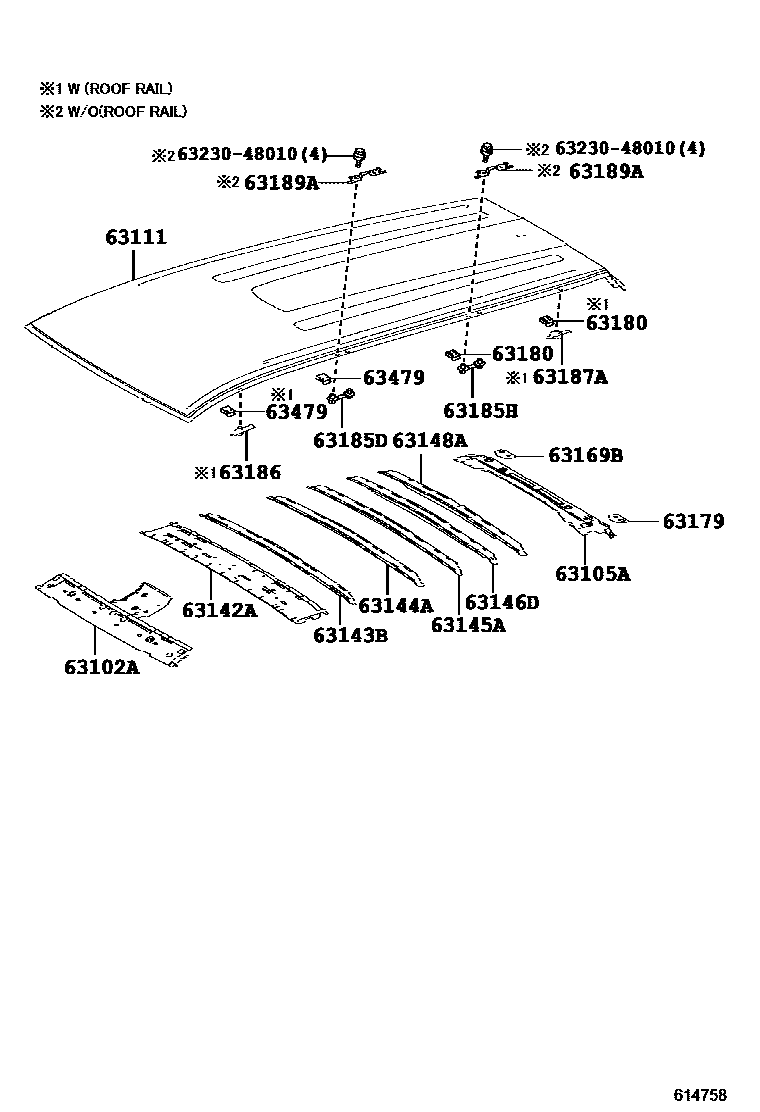

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON) 0003 1SLIDING ROOF(MOON) 0004 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E905iASU50;GSU5#..LE;GSU55..LIMD..RUS201312-201611

main63102-0E906iGSU5#..LIMD..ARL201611

UKRAINE&MOON ROOF-WITH(TILT & SLIDE)

main63102-0E906iGSU5#..LIMD..ARL201312-201611

MOON ROOF-WITH(TILT & SLIDE)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E050iASU50,GSU5#201312-201611

63111PANEL, ROOF

main63111-0E090iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE

main63111-0E110iASU50,GSU55..LIMD..RUS201312-201611

MOON ROOF-WITH(TILT & SLIDE)

main63111-0E110iGSU5#..LIMD..ARL201611

UKRAINE&MOON ROOF-WITH(TILT & SLIDE)

main63111-0E150iGSU5#..LE..ARL201312-201611

main63111-0E210iASU50..LE201611

main63111-0E290iASU50..LE201611

LEATHER PACKAGE

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-0E030iASU50;GSU5#..LE;GSU55..LIMD..RUS201312-201611

main63142-0E050iGSU55..LIMD..RUS201611

UKRAINE&MOON ROOF-WITH(TILT & SLIDE)

main63142-0E050iGSU5#..LIMD..ARL201312-201611

MOON ROOF-WITH(TILT & SLIDE)

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E050iASU50,GSU5#201312-201611

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63123-0E030iASU50,GSU5#201312-201611

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63177-0E010iASU50,GSU5#201312-201611

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63178-0E010iASU50;GSU5#..LE;GSU55..LIMD..RUS201312-201611

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63144-0E050iASU50,GSU5#201312-201611

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E040iASU50,GSU5#201312-201607

sub63169-0E041

main63169-0E041iASU50,GSU5#201608-201611

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E040iASU50,GSU5#201312-201607

sub63179-0E041

main63179-0E041iASU50,GSU5#201608-201611

63180CLIP(BRACKET, ROOF RACK)

main63479-0E010iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE

63185DBRACKET, ROOF RACK, FRONT

main63187-35020iASU50,GSU5#201312-201611

63185HBRACKET, ROOF RACK

main63187-48020iASU50,GSU5#201312-201611

63186BRACKET, ROOF RACK, FRONT

main63187-0E050iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE

63187ABRACKET, ROOF RACK, REAR

main63187-0E060iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE

63189ABRACKET, ROOF RACK, CENTER

main63185-48010iASU50,GSU5#..LE201312-201611

63479RETAINER, ROOF INNER RACK

main63479-0E040iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

19 parts on this diagram · 4 diagrams in section
