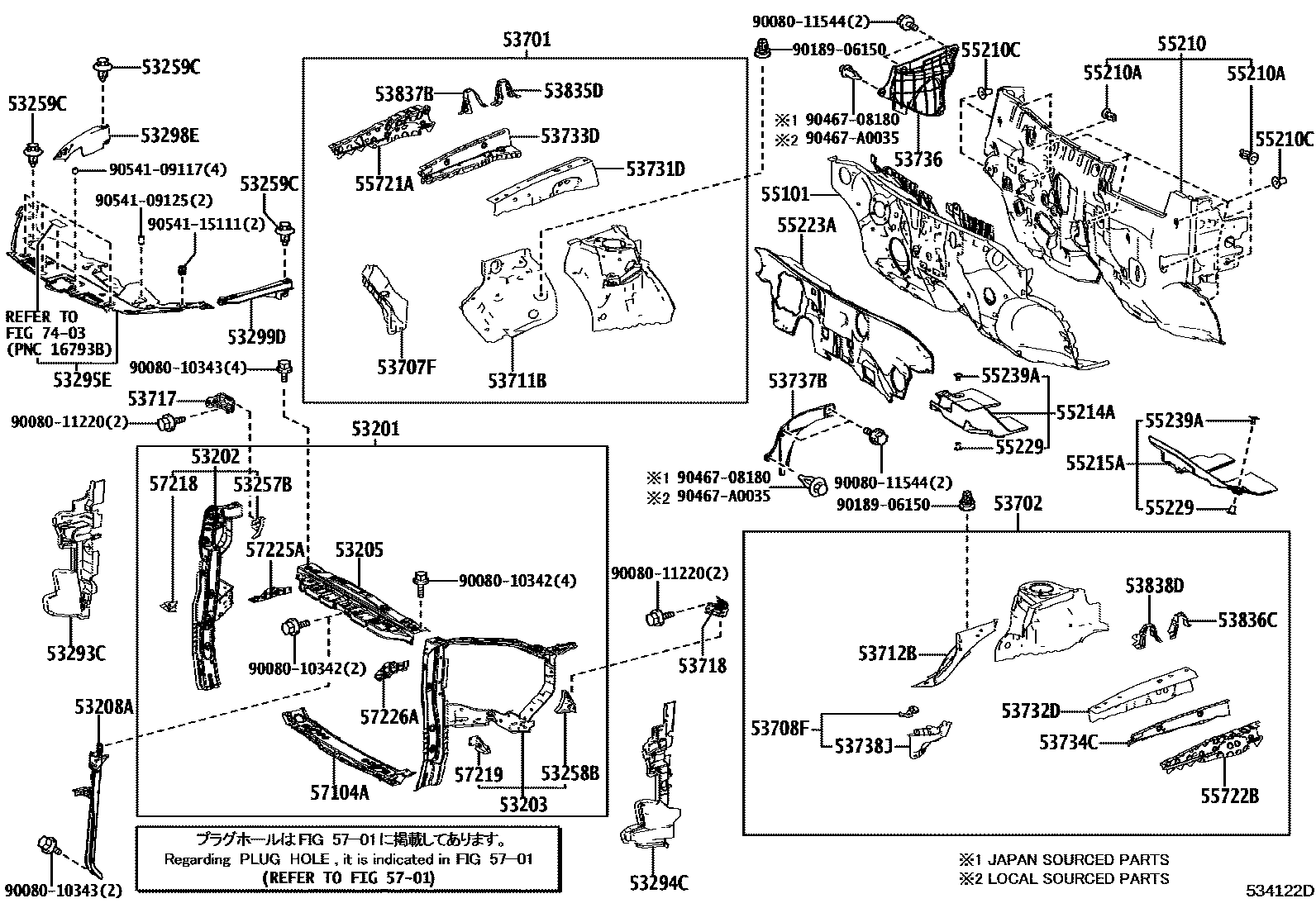

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53294CDEFLECTOR, RADIATOR SIDE, LH
53295ESEAL, COOL AIR INTAKE DUCT
53298ESEAL, RADIATOR SIDE, RH
53299DSEAL, RADIATOR SIDE DEFLECTOR, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737BSEAL, FRONT FENDER APRON, LH
53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55210ACLIP
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55239APLATE, DASH PANEL INSULATOR, NO.3
55721ABRACE, COWL TOP TO COWL, INNER NO.1
55722BBRACE, COWL TOP TO COWL, INNER NO.2
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57225ABRACE, FRONT MOUNTING BRACKET, RH
57226ABRACE, FRONT MOUNTING BRACKET, LH
7403
9008010342
main90080-10342
9008010343
main90080-10343
9008011220
main90080-11220
9008011544
main90080-11544
9018906150
main90189-06150
9046708180
main90467-08180
90467A0035
main90467-A0035
9054109117
main90541-09117
9054109125
main90541-09125
9054115111
main90541-15111
60 parts on this diagram · 4 diagrams in section
