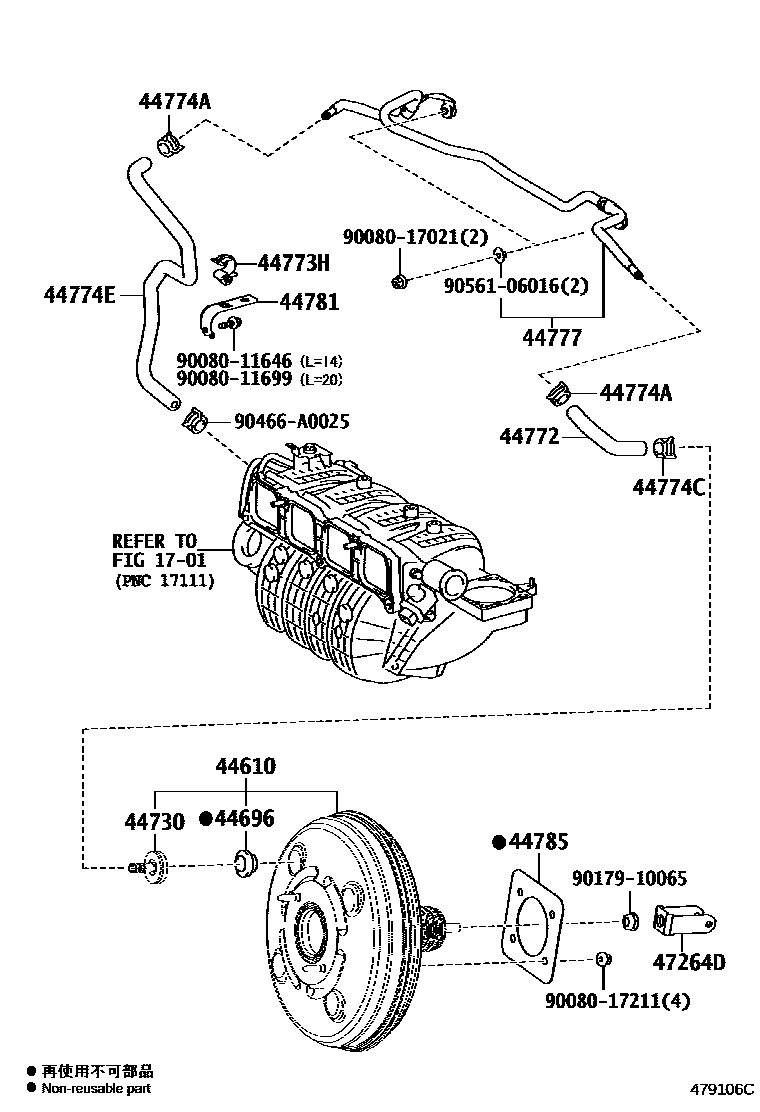

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0E080iASU50,GSU55..RUS201312-201611

main44610-0E090iGSU5#..ARL201312-201611

main44610-0E150iGSU55..RUS201611

main44610-0E170iGSU5#..ARL201611

main44610-0E180iASU50201611

44696GROMMET, CHECK VALVE

main90080-48071iASU50,GSU5#201312-201611

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iGSU5#..ARL201312-201611

main44730-60070iASU50,GSU55..RUS201312-201611

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-48060iASU50201312-201611

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17002iASU50,GSU5#201312-201611

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iASU50201312-201611

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iASU50201312-201611

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-48071iASU50201312-201611

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-0E090iASU50201312-201611

44781BRACKET, HOSE

main44447-0E020iGSU5#..ARL201312-201611

main44447-0E030iGSU55..RUS201312-201611

main44447-48030iASU50201312-201611

44785GASKET, BRAKE BOOSTER

main44785-07010iASU50,GSU5#201312-201611

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iASU50,GSU5#201312-201808

main47264-06040iASU50,GSU5#201808

(L)

main47264-48020iASU50,GSU5#201808

(J)

9008011646

main90080-11646

9008011699

main90080-11699

9008017021

main90080-17021

9008017211

main90080-17211

9017910065

main90179-10065

90466A0025

main90466-A0025

9056106016

main90561-06016

20 parts on this diagram · 5 diagrams in section
