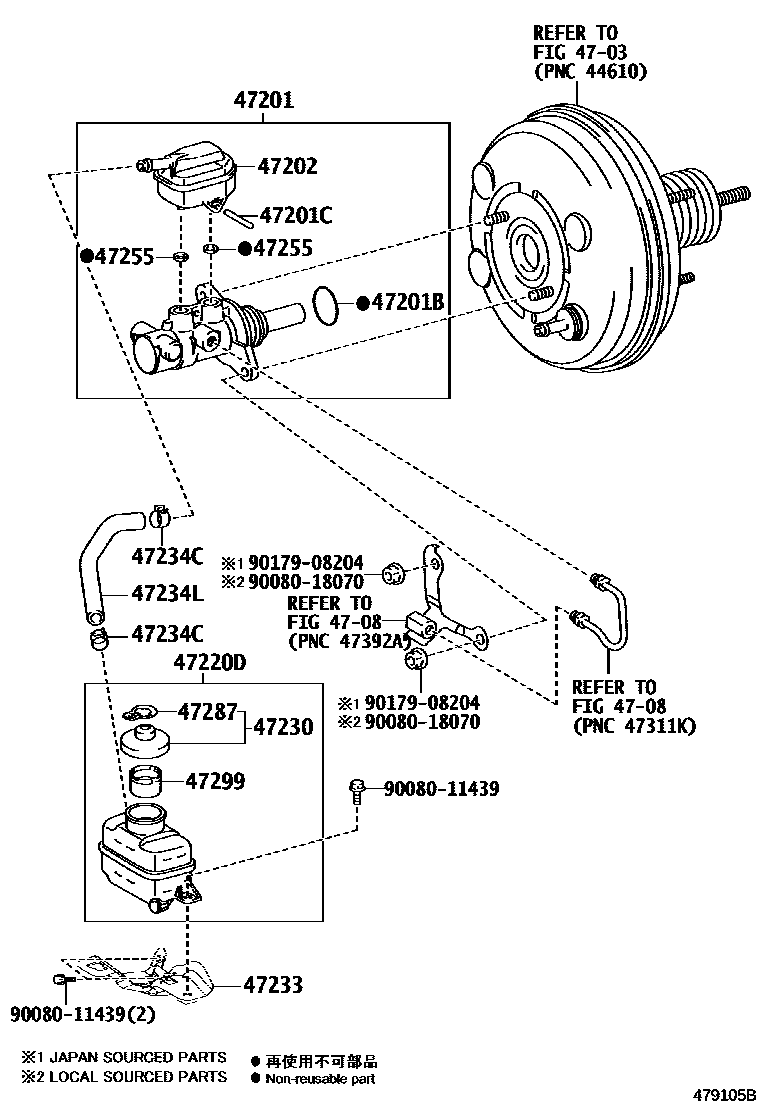

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-08080iASU50,GSU5#201709-201801

sub47201-0E060

main47201-0E060iASU50,GSU5#201802

main47201-48202iASU50,GSU5#201312-201708

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASU50,GSU5#201312-201611

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASU50,GSU5#201312-201611

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iASU50,GSU5#201312-201611

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E080iASU50,GSU5#201312-201611

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02270iASU50,GSU5#201312-201412

sub47230-02271

main47230-02271iASU50,GSU5#201412-201611

47233BRACKET, RESERVOIR

main47233-0E040iASU50,GSU55..RUS201312-201611

main47233-0E050iGSU5#..ARL201312-201611

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90466-A0013iASU50,GSU5#201312-201611

47234LHOSE, RESERVOIR, NO.1

main47234-48210iASU50,GSU55..RUS201312-201611

main47234-48220iGSU5#..ARL201312-201611

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASU50,GSU5#201312-201611

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASU50,GSU5#201412-201611

main47287-20010iASU50,GSU5#201312-201412

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASU50,GSU5#201312-201611

9008011439

main90080-11439

9008018070

main90080-18070

9017908204

main90179-08204

17 parts on this diagram · 4 diagrams in section
