STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM2#
3-SPOKE,LEATHER,LEATHER PACKAGE & BLACK PACKAGE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#
3-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM0#,2#
sub45100-0E372
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING HEATER),BLACK,TRIM0#,2#
sub45100-0E372
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING HEATER),BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#
3-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM0#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=16.5,LEATHER PACKAGE
L=16.5
L=16.5,STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING HEATER)
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
55910ECONTROL ASSY, STEERING WHEEL HEATER
sub55910-53011
STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING HEATER)
sub55910-53011
STEERING WHEEL-3-SPOKE,LEATHER, WITH(STEERING HEATER)
LEATHER PACKAGE
8401
9008015079
main90080-15079

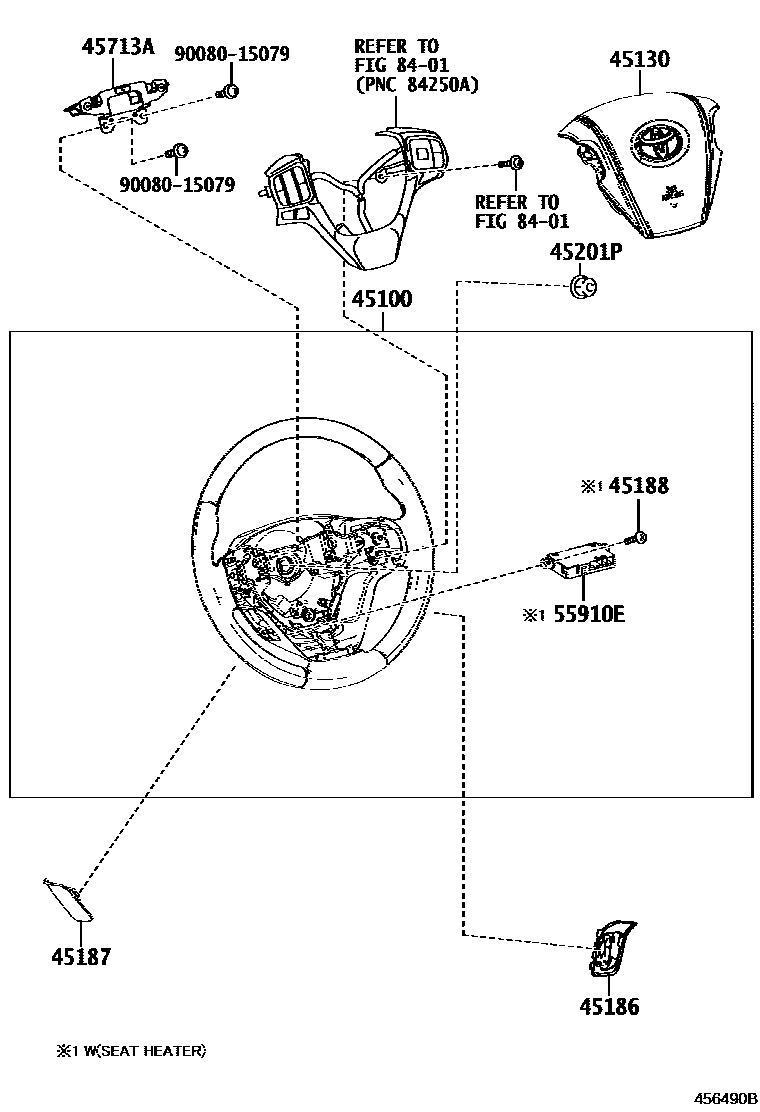

10 parts on this diagram · 1 diagram in section
