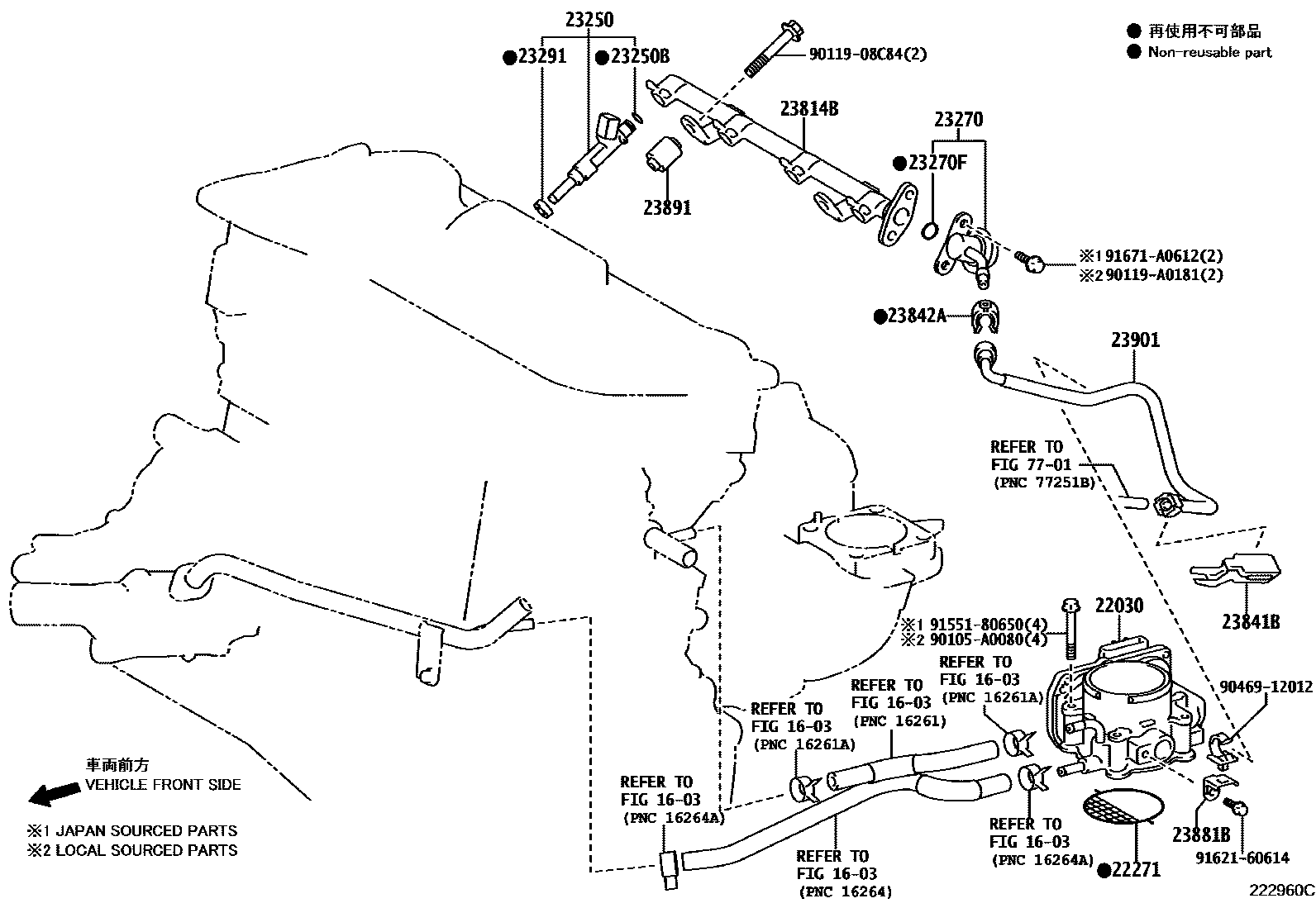

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
*535
*524
22271GASKET, THROTTLE BODY
*535
*524
23250INJECTOR ASSY, FUEL
*535
(L)
(J)
*524
23250BRING, O(FOR FUEL INJECTOR)
NOK
(J)
(J),*535
(J)
*524
(J),*524
(L)
(L),*535
(L)
DENSO
(L),*524
23270DAMPER ASSY, FUEL PRESSURE PULSATION
*535
*524
23270FRING, O(FOR PULSATION DAMPER)
*535
*524
23291INSULATOR, INJECTOR VIBRATION
(L)
(L),*535
(J)
(J),*535
*524
23814BPIPE, FUEL DELIVERY
*535
*524
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
*535
*524
23901TUBE SUB-ASSY, FUEL
7701
90105A0080
main90105-A0080
9011908C84
main90119-08C84
90119A0181
main90119-A0181
9046912012
main90469-12012
9155180650
main91551-80650
9162160614
main91621-60614
91671A0612
main91671-A0612
22 parts on this diagram · 3 diagrams in section
