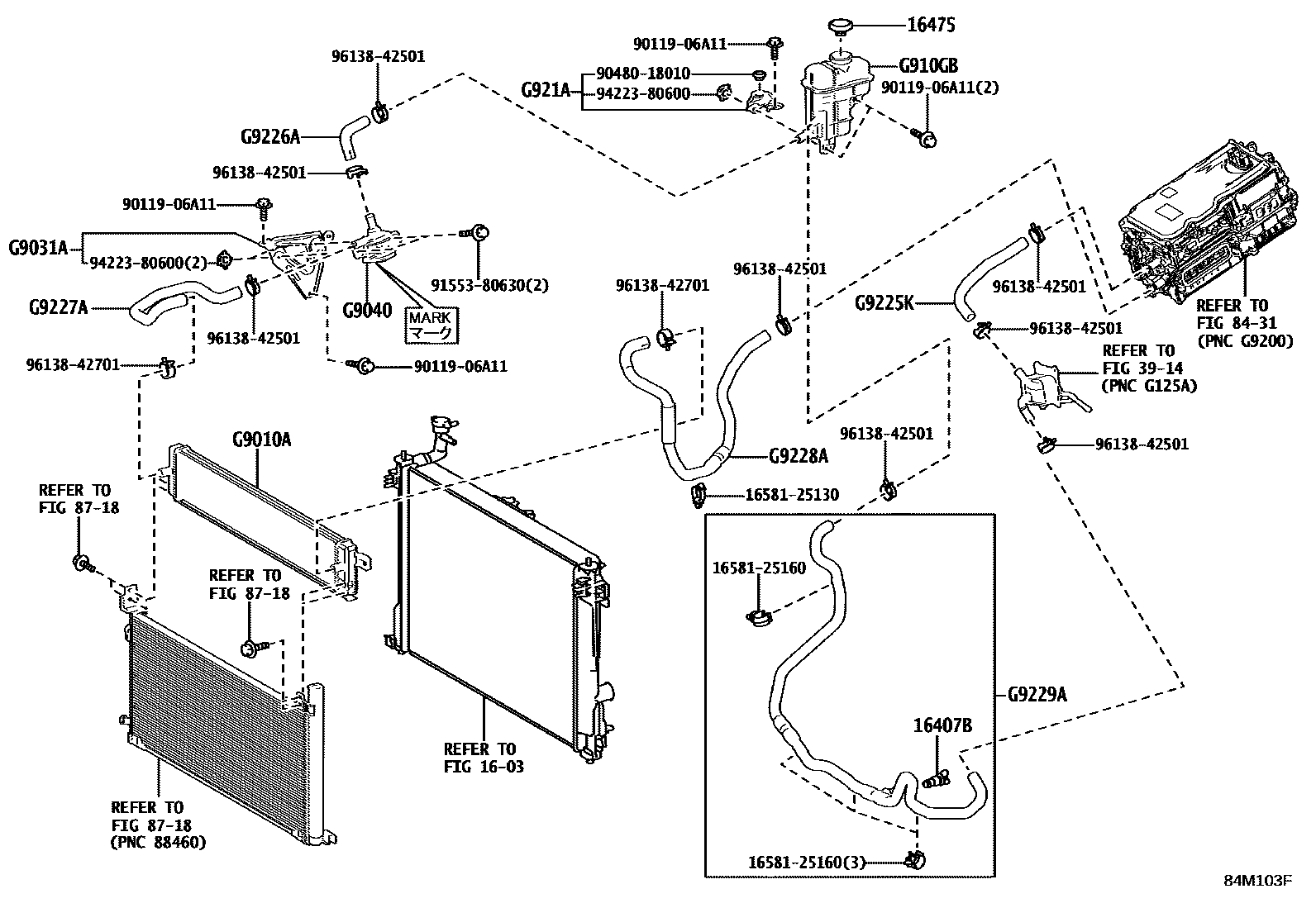

INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXUH80¥380202010-202112

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXUH80¥1,200202010-202210

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXUH80202010-202112

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAXUH80202010-202112

mainG914178010iAXUH80202112-202210

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042010iAXUH80202010-202112

MARK=G

mainG904048050iAXUH80202112-202210

MARK=T

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAXUH80202010-202210

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAXUH80202010-202210

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542010iAXUH80202010-202210

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAXUH80202010-202112

mainG922642020iAXUH80202112-202210

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAXUH80202010-202112

mainG922778010iAXUH80202112-202210

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842030iAXUH80202010-202112

mainG922842050iAXUH80202112-202210

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAXUH80202010-202112

mainG922942040iAXUH80202112-202210

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9422380600

main94223-80600¥70

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

24 parts on this diagram · 2 diagrams in section
